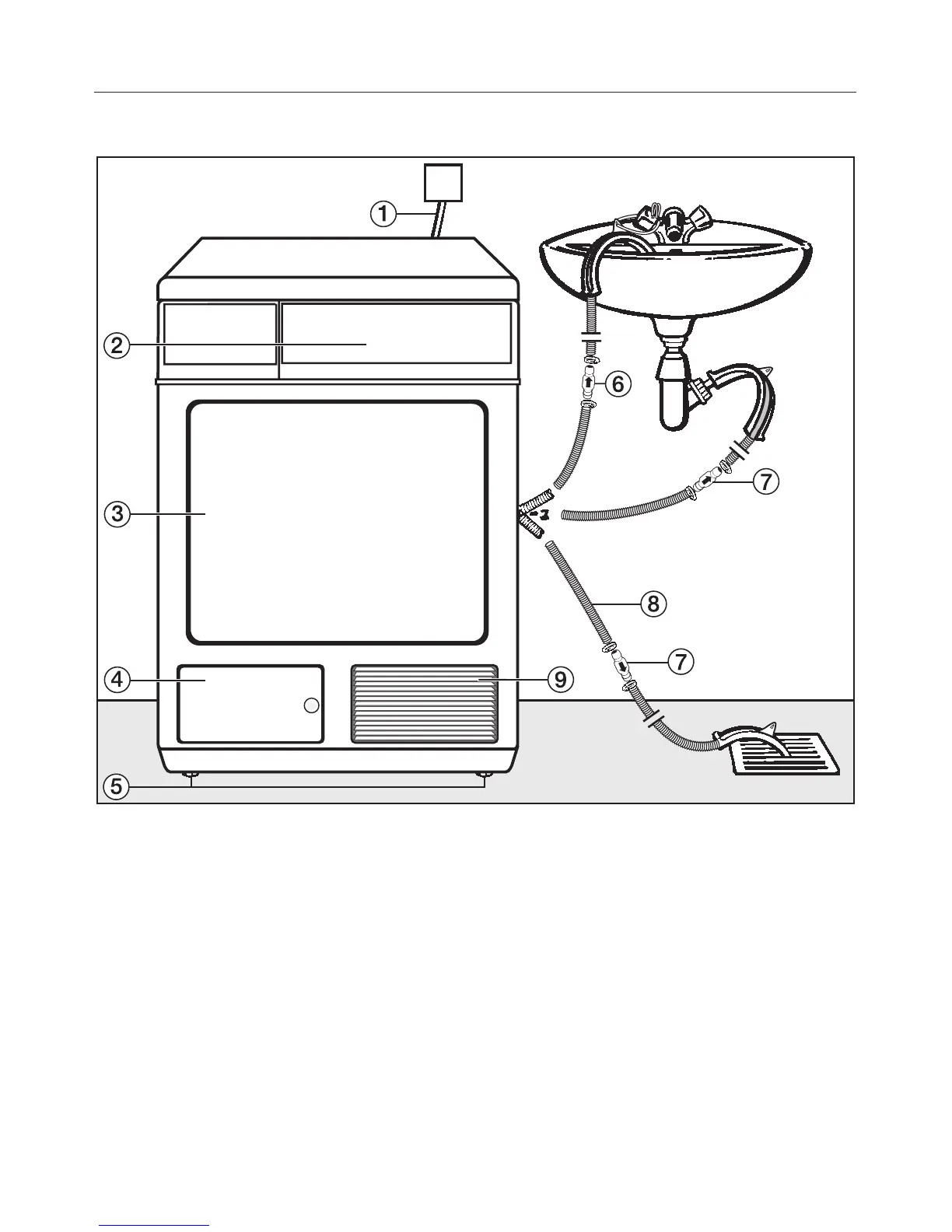

Front view
a Mains connection cable
b Control panel
c Door
d Plinth filter access panel.
Only open the panel if a message
appears in the display.
e Four height adjustable screw feet
f Non-return valve, recommended.
g Non-return valve, necessary.
h Condensed water drain hose
i Bottom right grille = Air cooling vent
Only open the grille if a message
appears in the display.
Installation and connection
49
