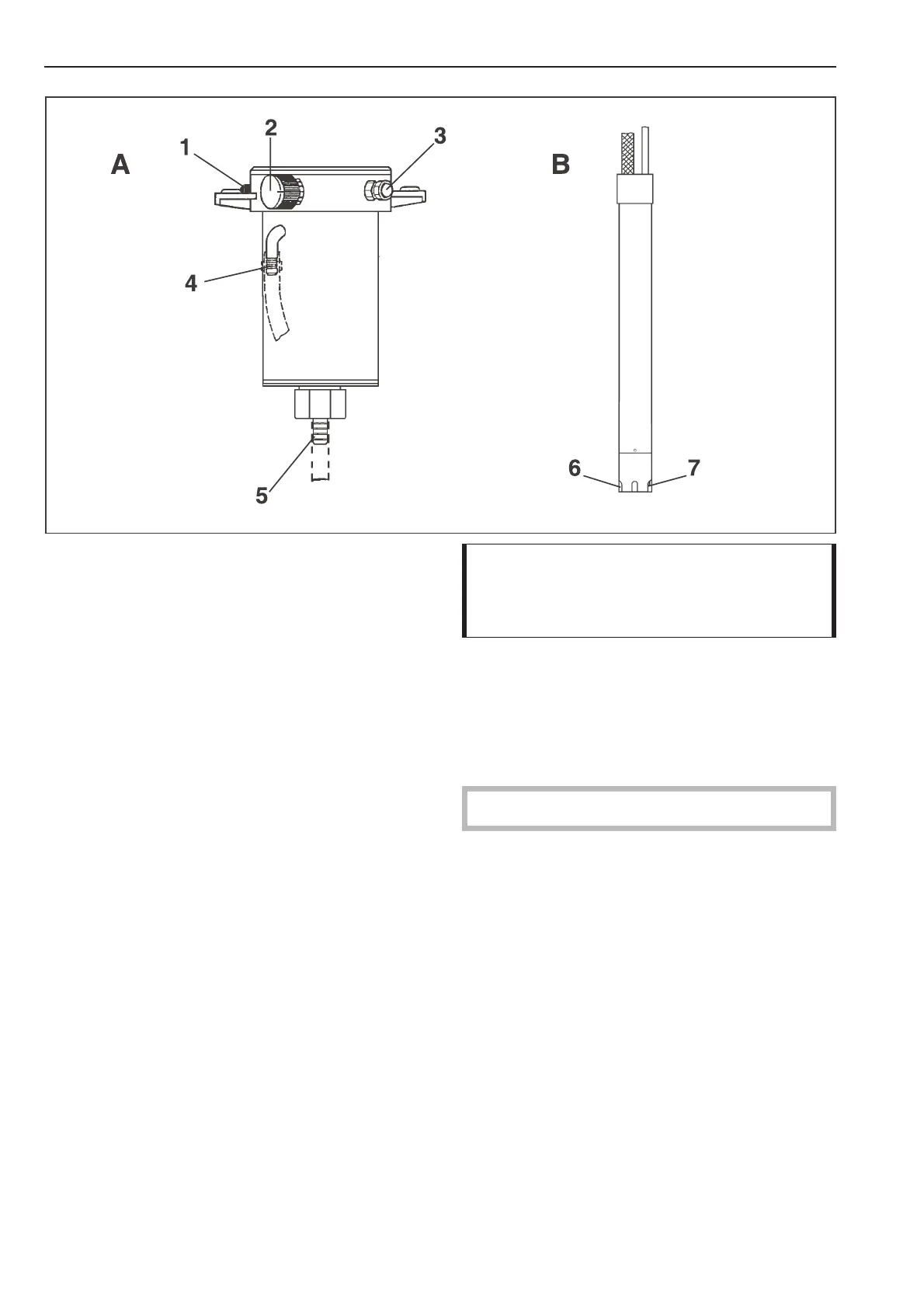

A Pump for spray proofing
1 = "On-Off" switch
2 = Pressure control valve
With the pressure control valve the working
pressure can be set between 7.25 - 87 psi
(0.5 - 6 bar).
3 = Pressure connection
(for the pipe to the spray jet)
4 = Return feed connection
(Pipe into dispensing container for proofing
agent)
5 = Suction connection
(Pipe to suction pipe)
B Suction pipe
6 = Suction inlet opening
7 = Level indicator
When the dispenser container is empty the
pump and the machine will shut off.
PROGRAMME 18 WASH/ PROOF & SPRAY
PROGRAMME STOP
DISPENSING SYSTEM FAULT
Dispensing container 1 empty.
At the same time the display indicates that
the dispenser is empty.
^ Replace or refill the dispenser and press
the X "Start" button to continue the pro-
gram.
,
Do not use liquids which attack brass.
Correct dosage also depends on the viscos
-
ity of the liquid detergent. It should stand at
room temperature before being used.
Amount to be dispensed
Follow the detergent manufacturer’s guide
-
lines.
Liquid dispensing
