Display
The display content will appear once the
machine is turned on. It is up to four lines
and 40 digits long, showing which program
has been selected.

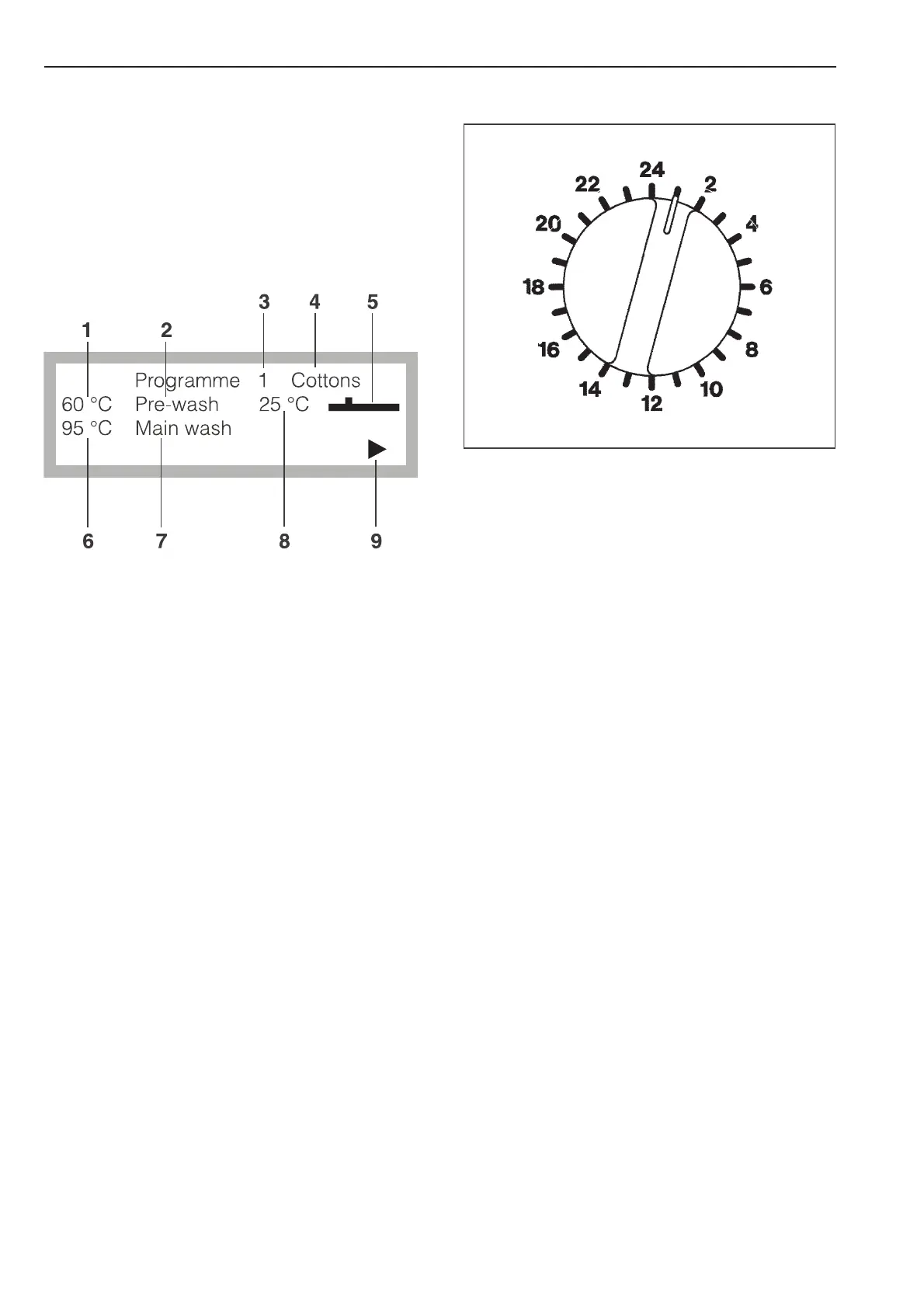

Display during a program
1 Planned temperature for the current cycle
2 Name of the current cycle
3 Program number
4 Program name
5 Time line for the current cycle
6 Planned temperature of the next cycle
7 Name of the next cycle
8 Actual temperature
9 Points to a further display line
Program selector
Program numbers 1 - 24 can be selected di
-
rectly.
Program numbers 25 - 99 can be selected
using selector position 24 and the 4 "Plus"
button.
The name of the selected program and its
corresponding number appear in the dis-
play. Program positions 1 - 10 are standard
programs.
The subsequent program positions vary ac-
cording to the version of the model, and are
set out in the Programming Instruction. If the
program selector switch is turned to another
position after the start of the program, the
first line of the display flashes. The program
does not however change.
Main buttons
Y "Power on" button
Z "Power off" button
Guide to the washer-extractor
8
