Mikado LOGO 550 - Tail Boom

Manual LOGO 550 - ©Mikado Model Helicopters GmbH - Page 5
2x M3
1x M2x6
1x M2 Stop
4x Kugel/ball/Rotule Ø6x3
2x
M3x
2x
3mm
2x
4x
M3x40
M2x6
M2
Ø4x565 mm
Ø5x450 mm
M3 Stop
M3
M3x40
M2x6
M2
Ø4x565 mm
Ø5x450 mm
M3 Stop
M3M3
M3x3

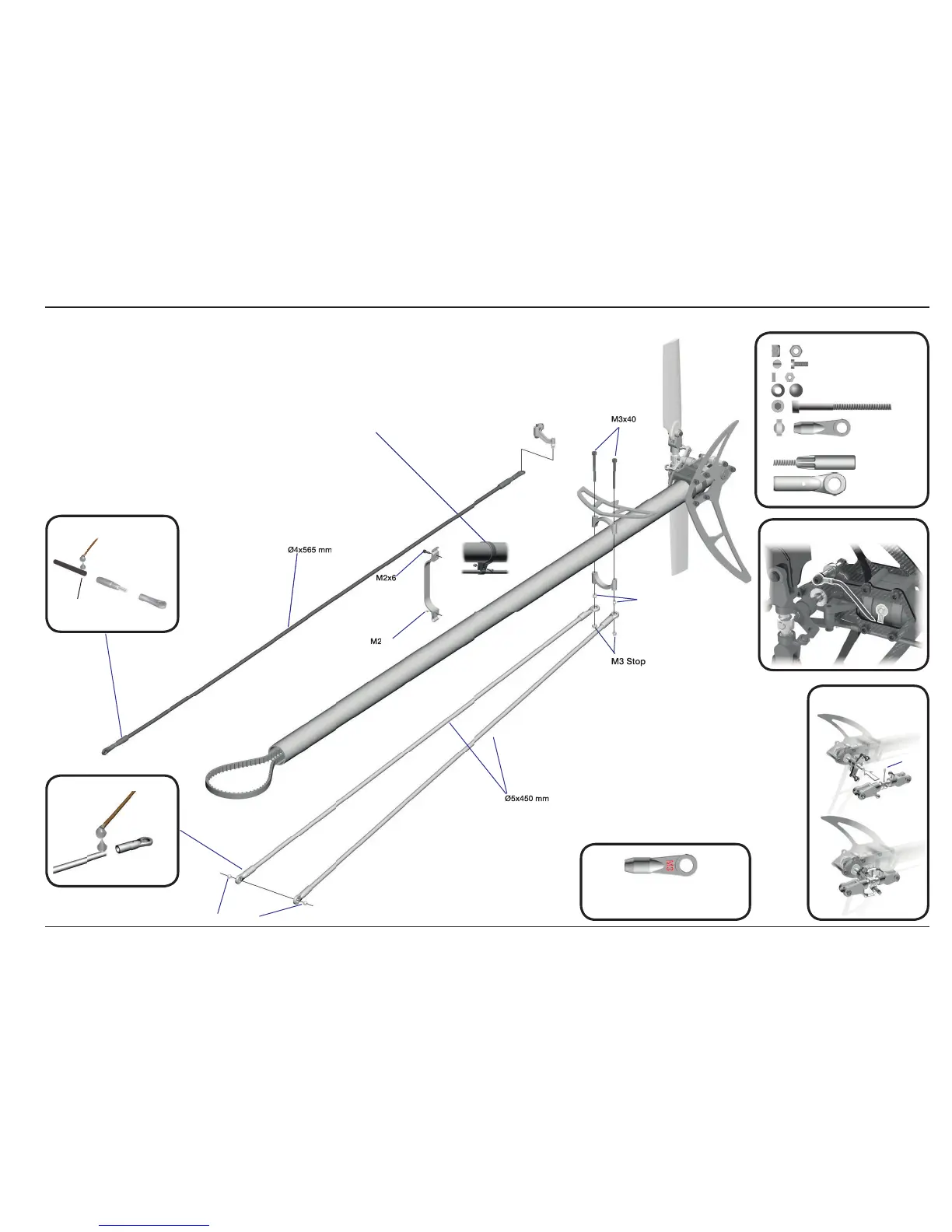

3 Tail Boom
Bag 6
Bag 5
Bag 6 + 11
Bag 6 + 11
Ball Ø6 mm
Ball Ø6 mm
5 Min. Epoxy
5 Min. Epoxy
Bag 6 • Bag 11
Put a strip of scotch tape on the push rod to avoid
wear. Make sure the plastic guide is aligned pro-
perly.
please
sand back the
CFRP-Rod
Attach the ball links so that the engraved
tread is on the inner surface pointing away
from you.
Anti Static Kit
