COMPONENT LIST
40 TECHNICAL DOCUMENTATION
CORE COMPONENTS (ETHOS 70)
* for details of individual components within this sub-assembly please contact Mikrofill Systems Ltd. on 03452 60 60 20.
“(PART CODE) PART NAME”:

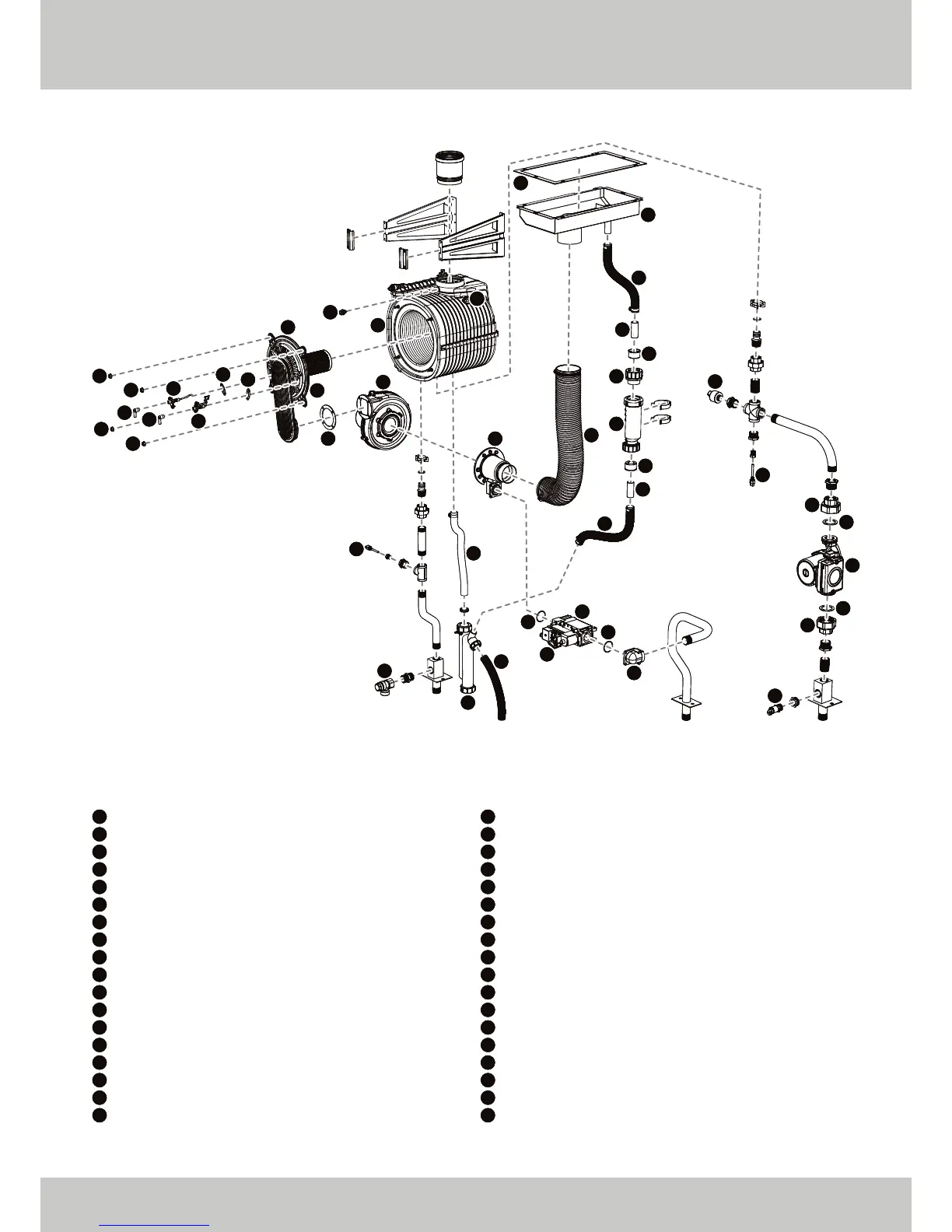

▲ FIGURE 11. EXPLODED DRAWING DETAILING THE CORE COMPONENTS OF THE ETHOS 70.
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
(WHB000204)
(WHB100001)
(WHB000002)
(WHB300003)
(WHB000045)
(WHB000044)
(WHB000043)
(WHB000046)
(WHB000004)
(WHB000005)
(WHB300018)
(WHB000006)
(WHB000007)
(WHB300005)
(WHB300006)
(WHB300007)
(WHB300008)
(WHB000013)
AIR INLET TUBE (Ø 76mm) (500mm) (ETHOS 70)
BURNER DOOR COMPLETE (ETHOS 70)
BURNER DOOR MOUNTING NUT
COMBUSTION FAN NRG 137 (ETHOS 70 - 110)
CONDENSATE HOSE (Ø 22.8mm) (250mm)
CONDENSATE HOSE (Ø 22.8mm) (350mm)
CONDENSATE HOSE (Ø 22.8mm) (600mm)
CONDENSATE HOSE (SILICONE) (400mm) (ETHOS 70)
CONDENSE SYPHON / TRAP
DRAIN TAP (½”)
ELBOW FLANGE (¾”)
FAN GASKET (ETHOS 70 - 110)
FLUE GAS TEST POINT CAP (ETHOS 70)
GAS PIPE GASKET
GAS VALVE
GAS VALVE GASKET
GAS VALVE RECTIFICATION LEAD
GRUNDFOS UPML 25-105 130 OEM PUMP
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
(WHB100002)
(WHB000172)
(WHB000020)
(WHB000021)
(WHB000022)
(WHB000023)
(WHB000029)
(WHB000030)
(WHB000031)
(WHB000058)
(WHB000032)
(WHB300011)
(WHB000155)
(WHB000173)
(WHB000202)
(WHB000203)
(WHB000038)
(WHB000200)
HEAT EXCHANGER (ETHOS 70)
HIGH LIMIT SWITCH (ETHOS 70)
IGNITION ELECTRODE (ETHOS 70)
IGNITION ELECTRODE / IONISATION PROBE CAP
IGNITION ELECTRODE / IONISATION PROBE GASKET
IONISATION PROBE (ETHOS 70)
PRESSURE RELIEF VALVE (3 BAR) (¾”)
PRESSURE SENSOR
PUMP GASKET
PUMP UNION (1” - 1½”) (ETHOS 70)
RUBBER SEAL (SEALED AIR INLET BOX)
SEALED AIR INLET BOX
SEALED AIR INLET TRAP (HEPVO) COMPLETE*
TARGET WALL INSULATION (NOT PICTURED)
TARGET WALL INSULATION SCREW (NOT PICTURED)
TARGET WALL INSULATION WASHER (NOT PICTURED)
TEMPERATURE SENSOR (LONG)
VENTURI (ETHOS 70 - 90)
36
01
20
15
14
17
16
11
03
03
03
03
22
22
24
21
23
23
02
32
04
12
19
13
35
25
08
07
09
29
30
05
31
31
31
31
31
31
06
26
35
28
27
18
27
28
