Mikrofill ETHOS 90 - Description; Main Components; Bottom Connections

DESCRIPTION
TECHNICAL DOCUMENTATION 09

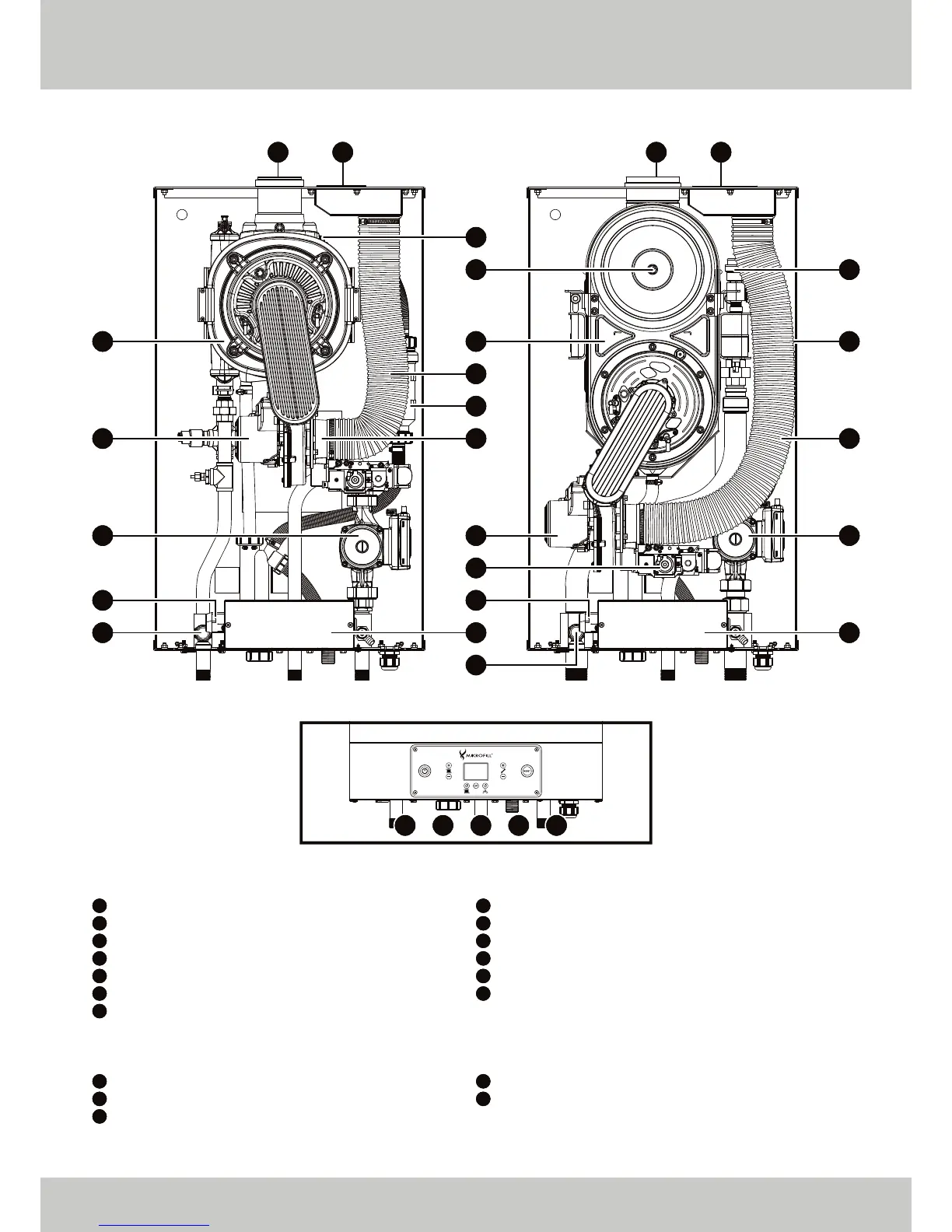

MAIN COMPONENTS:
BOTTOM CONNECTIONS:
* Only present on ETHOS 90, 110 and 130 Heat Exchangers.
ETHOS 70: ETHOS 90, 110 AND 130:
BOTTOM CONNECTIONS:
15 1714 16 18
Air Inlet Connection
Air Inlet Tube
Air Vent Valve*
Combustion Fan
Controls Housing
Flue Gas Temperature Sensor
Flue Outlet Connection
Flow Connection
Condense Syphon
Gas Connection
Gas Valve and Venturi
Grundfos UPML 25-105 130 PWM
Heat Exchanger and Burner Package
Ignition Transformer
Pressure Relief Valve
Sealed Air Inlet Trap (located behind Air Inlet Tube)
Condense Outlet
Return Connection
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
0107
13
07 01
02
09
04
04
1010
09
12
05
11 11
12
06
02
03
06
05
08
13
08
