3. 12X Mini PTZ Bullet Network Camera
Wall Mount: Pedestal Mount:
Mini PTZ Bullet: Mini PoE PTZ Bullet:

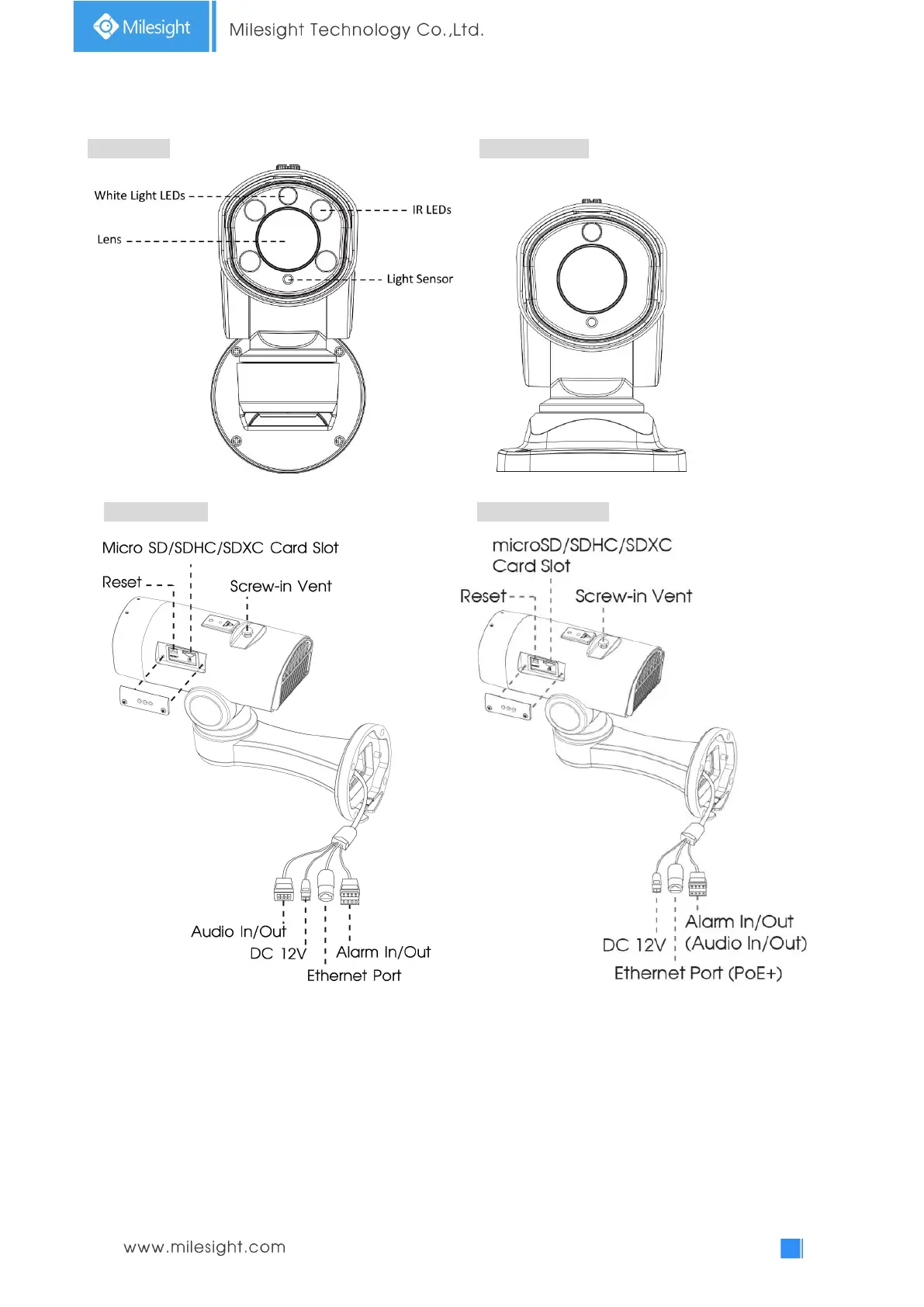

Figure 1-3-3 12x Mini PTZ Bullet Network Camera
Note:
1) Reset Button: Press “Reset” button for 5 seconds, then the device will be restored to
factory default.
2) Only DC 12V is available for Mini PTZ Bullet power supply. DC 12V and PoE (802.3at) are
available for Mini PoE PTZ Bullet power supply.
