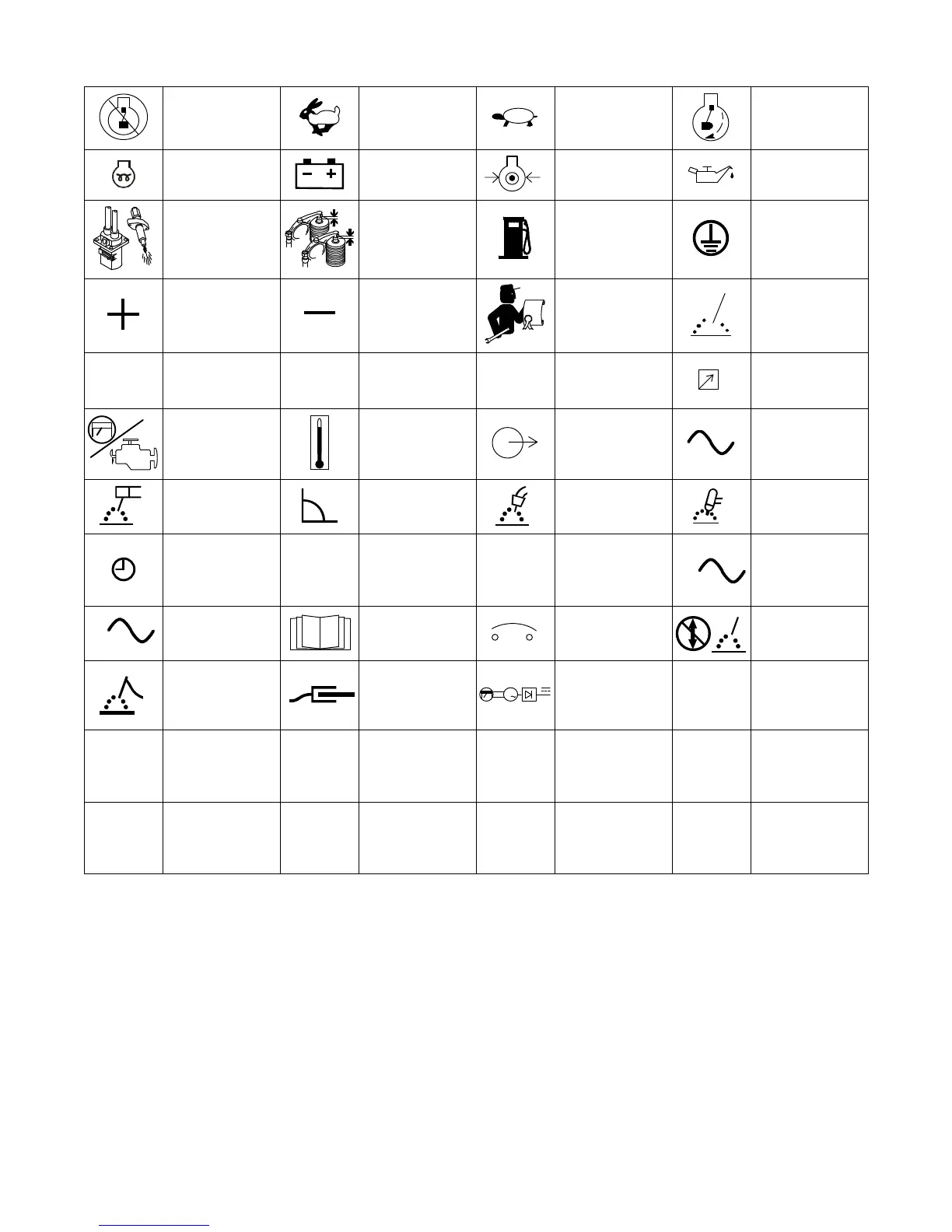

3-2. Miscellaneous Symbols And Definitions
Stop Engine
Fast (Run, Weld/
Power)
Slow (Idle) Start Engine
Starting Aid
(Preheat)
Battery (Engine)
Engine Oil
Pressure
Engine Oil
Check Injectors/
Pump
Check Valve
Clearance
Fuel
Protective Earth
(Ground)
Positive Negative
Certified/Trained
Mechanic
Welding Arc
A
Amperes
V
Volts Remote
Engine
Air Temperature Or
Engine
Temperature
Output
Alternating
Current
Stick (SMAW)
Welding
Constant Current
(CC)
FCAW Welding
TIG (GTAW)
Welding
Time
h
Hours
s
Seconds
1
Single Phase
3
Three Phase
Read Operator’s
Manual
Circuit Protection
Do Not Switch
While Welding
Electrode
Connection
Work Connection
3
G
Engine-Driven,
Three-Phase
Alternator With
Rectifier
Hz
Hertz
X
Duty Cycle
U
0
Rated No Load
Voltage (Average)
U
2
Conventional
Load Voltage
n
Rated Load
Speed
n
1
Rated Idle
Speed n
0
Rated No Load
Speed
I
Current
I
2
Rated Welding
Current

Miller big blue 700x duo pro Specifications

General

Model	Big Blue 700X Duo Pro
Max Output	700 A
Dimensions	48.4 x 28.3 x 37.4 inches
Engine	Kubota D902
Fuel Type	Diesel
Type	Diesel Engine-Driven Welding Generator
Welding Amperage Range	20 - 700 A
Output Current Range	20 - 700 Amps
Output Voltage Range	14 - 44 VDC
Duty Cycle	100%
Voltage	14-44 VDC
Weight	1, 050 lbs
Input Voltage	None (Engine Driven)
Input Current	None (Engine Driven)
Input Power	None (Engine Driven)
Net Weight	1, 050 lbs (476 kg)
