OM-252 624 Page 39

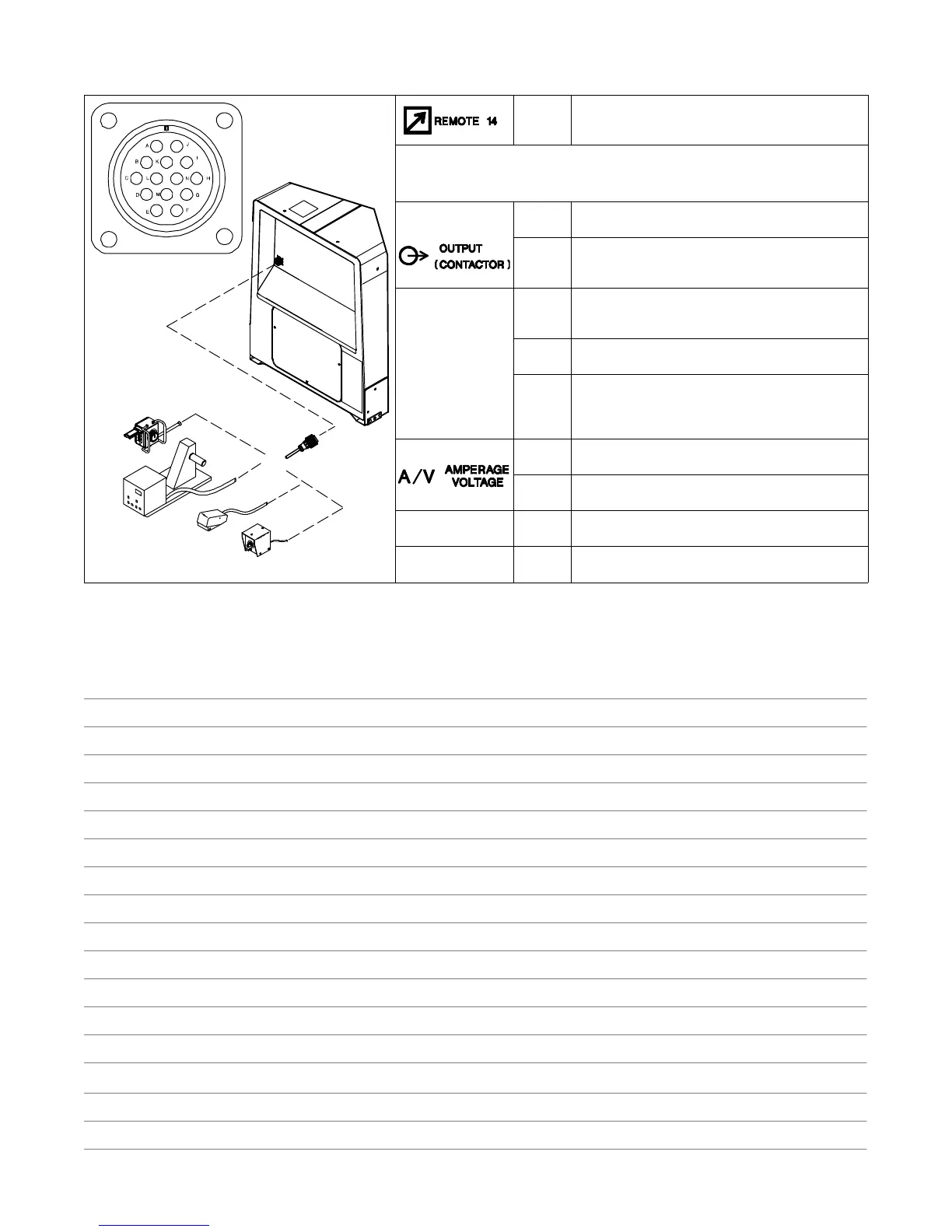

5-17. Connecting To Remote 14 Receptacle
Rmt14_1 2010−04
OR
 Accessories depend
on unit capabilities.
*The remaining sockets
are not used.
Socket* Socket Information
 Not all models have contactor control. See description of front panel controls and
circuit diagram.
24 VOLTS AC
A 24 volts AC. Protected by supplementary protector.
B Contact closure to A completes 24 volt AC contactor
control circuit.
REMOTE
OUTPUT
CONTROL
C Output to remote control:+10 volts DC in MIG mode;
0 to +10 volts DC in Stick or TIG mode.
D Remote control circuit common.
E DC input command signal: 0 to +10 volts from min.
to max. of remote control with Voltage/Amperage
Adjust control at maximum.
F Current feedback: 1 volt per 100 amperes.
H Voltage feedback: 1 volt per 10 arc volts.
GND
K Chassis common.
NEUTRAL G Circuit common for 24 volt AC circuit.
Notes

Miller big blue 700x duo pro Specifications

General

Model	Big Blue 700X Duo Pro
Max Output	700 A
Dimensions	48.4 x 28.3 x 37.4 inches
Engine	Kubota D902
Fuel Type	Diesel
Type	Diesel Engine-Driven Welding Generator
Welding Amperage Range	20 - 700 A
Output Current Range	20 - 700 Amps
Output Voltage Range	14 - 44 VDC
Duty Cycle	100%
Voltage	14-44 VDC
Weight	1, 050 lbs
Input Voltage	None (Engine Driven)
Input Current	None (Engine Driven)
Input Power	None (Engine Driven)
Net Weight	1, 050 lbs (476 kg)
