OM-252 624 Page 26

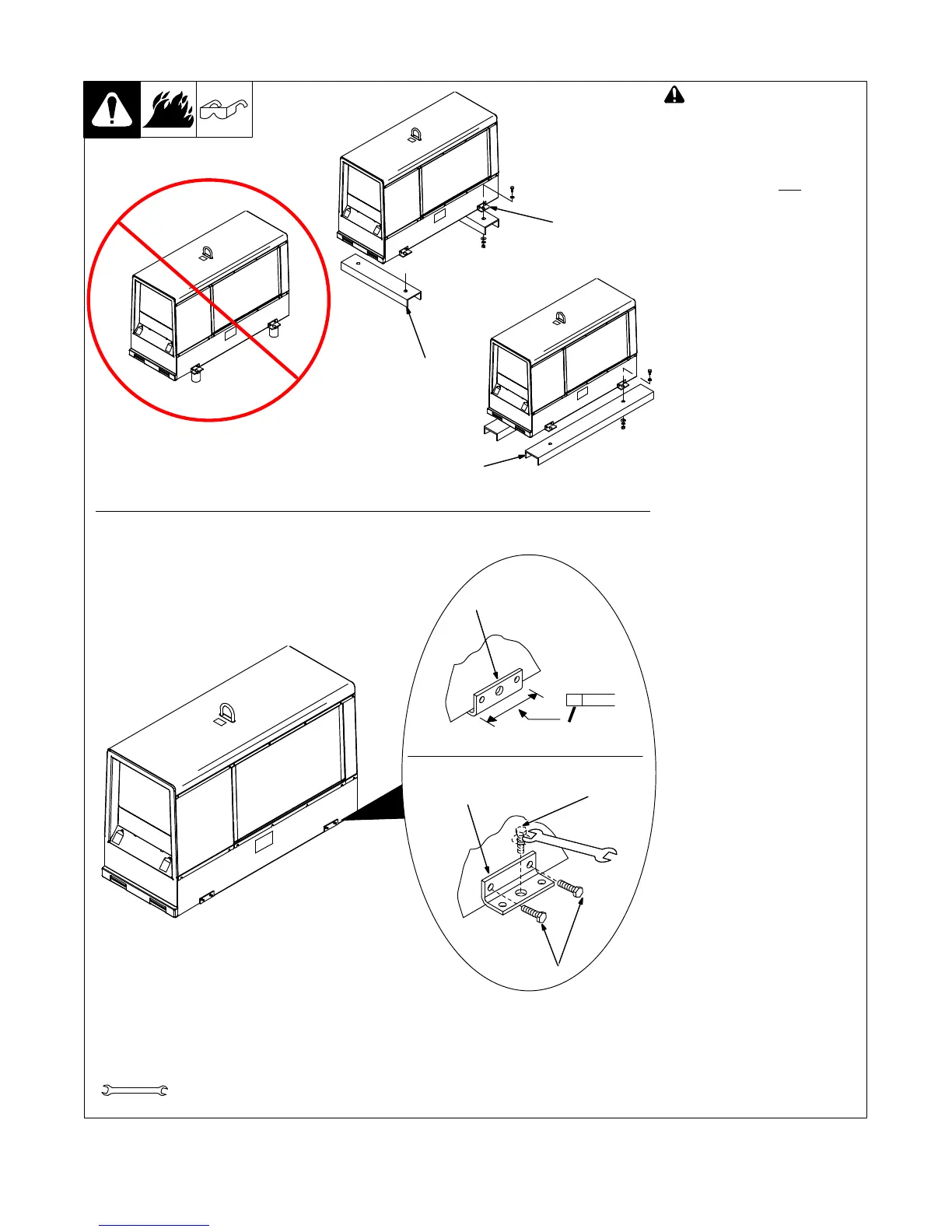

5-3. Mounting Welding Generator
Tools Needed:
9/16 in.
2
2
4
Welding Unit In Place
Bolting Unit In Place
! Do not weld on base. Weld-
ing on base can cause fuel
tank fire or explosion. Weld
only on the four mounting
brackets or bolt unit down.
NOTICE − Do not mount unit by
supporting the base only
at the four
mounting brackets. Use cross-
supports to adequately support unit
and prevent damage to base.
Mounting Surface:
1 Cross-Supports
2 Mounting Brackets (Supplied)
Mount unit on flat surface or use
cross-supports to support base.
Secure unit with mounting brack-
ets.
3 1/2 in. Bolt And Washer
(Minimum − Not Supplied)
4 3/8-16 x 1 in. Screws
(Supplied)
To Bolt Unit In Place:
Remove hardware securing the
four mounting brackets to the base.
Reverse brackets and reattach to
base with original hardware.
Mount unit to truck or trailer with 1/2
in. (12 mm) or larger hardware (not
supplied).
To Weld Unit In Place:
Weld unit to truck or trailer only at
the four mounting brackets.
1
2
Supporting The Unit
Using Mounting Brackets
install3 2008--01 803 274 / 200 864-A / 803 231
1
OR
3

Miller big blue 700x duo pro Specifications

General

Model	Big Blue 700X Duo Pro
Max Output	700 A
Dimensions	48.4 x 28.3 x 37.4 inches
Engine	Kubota D902
Fuel Type	Diesel
Type	Diesel Engine-Driven Welding Generator
Welding Amperage Range	20 - 700 A
Output Current Range	20 - 700 Amps
Output Voltage Range	14 - 44 VDC
Duty Cycle	100%
Voltage	14-44 VDC
Weight	1, 050 lbs
Input Voltage	None (Engine Driven)
Input Current	None (Engine Driven)
Input Power	None (Engine Driven)
Net Weight	1, 050 lbs (476 kg)
