Complete Parts List is available at www.MillerWelds.com
4-5. Dimensions, Weights, And Operating Angles

Complete Parts List available at www.MillerWelds.com
OM-249336 Page 5

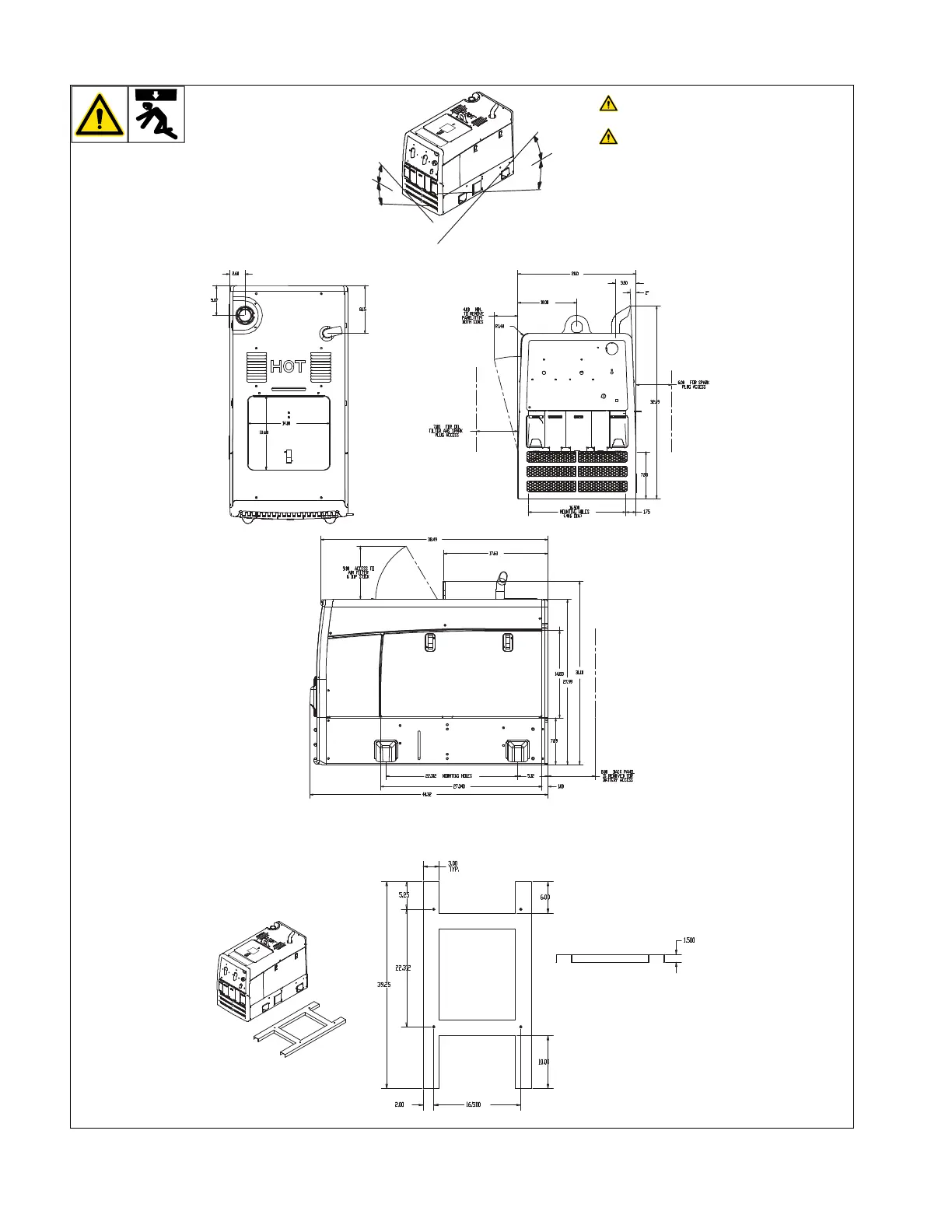

13-17. Dimensions, Weights, And Operating Angles
251 959-A
20
°
20
°
20
°
20
°
!
Do not exceed tilt angles or
engine could be damaged or
unit could tip.
!
Do not move or operate unit
where it could tip.
Weight: 600 lb (272 kg) w/fuel
525 lb (238 kg) w/o fuel
Lifting Eye Weight Rating: 1280
lb (580 kg)
Support Assembly Dimensions
Do not exceed tilt angles or engine
could be damaged or unit could tip.
Do not move or operate unit where it
could tip.
Weight: 600 lb (272 kg) w/fuel
525 lb (238 kg) w/o fuel
Lifting Eye Weight Rating: 1280 lb (580 kg)

Complete Parts List available at www.MillerWelds.com
OM-249336 Page 5
13-17. Dimensions, Weights, And Operating Angles
Support Assembly Dimensions

Complete
Parts List available at www
.MillerWe
lds.com
OM-249336 Page 5
13-17. Dimensions, Weights, And Operating Angles

Miller Bobcat 250 Specifications

General

Rated Output	250 A at 25 VDC, 100% Duty Cycle
Generator Power	11, 000 Watts Peak, 9, 500 Watts Continuous
Engine	Kohler CH730
Fuel Type	Gasoline
CC/CV	CC/CV
Phase	Single-phase
Frequency	60 Hz
Type	Engine Driven Welder
Welding Processes	Stick (SMAW), MIG (GMAW), Flux-Cored (FCAW), TIG (GTAW)
Fuel Tank Capacity	12 gallons
Welding Amperage Range	40 - 250 A
Open Circuit Voltage	80 VDC
Voltage	120/240 V
Outlet Types	120V 20A Duplex, 240V 50A
