Miller Econotig - Section 5 − Installation; Selecting a Location; Typical Stick Connections

OM-303 Page 12
SECTION 5 − INSTALLATION

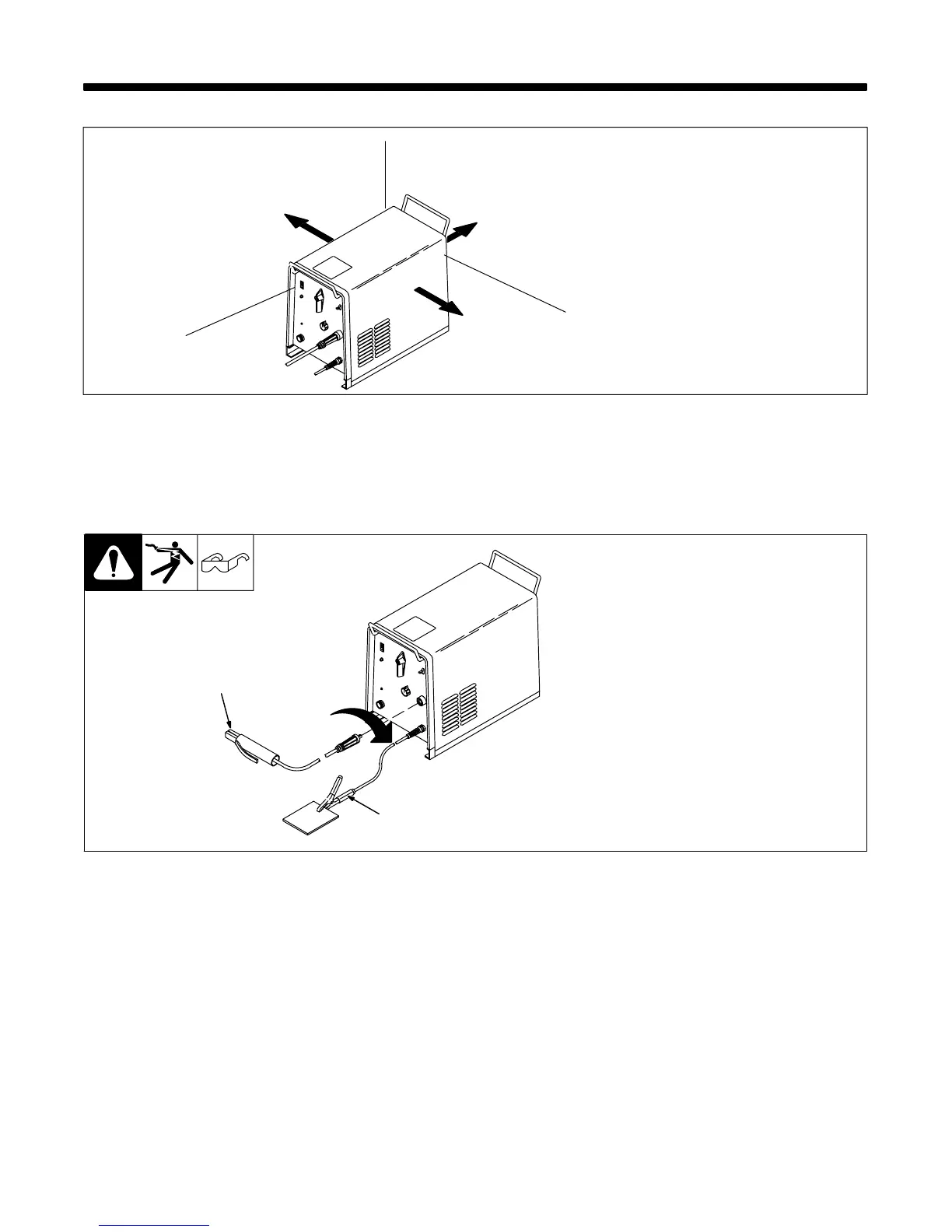

5-1. Selecting a Location
ST-158 075
Position unit so air can circulate.
For information about sources of
high-frequency see Section 9.
For carts and caster kits see back
of book or contact your distributor.
18 in
(460 mm)
18 in
(460 mm)
18 in
(460 mm)
5-2. Typical Stick Connections
ST-157 858-A
Y Turn Off power before mak-
ing connections.
1 Electrode Holder
2 Work Clamp
Connect to receptacle as shown.
1
2
