Miller Econotig - 6-2. Example of Front Panel Amperage Control; 6-3. Example of Remote Amperage Control

OM-303 Page 16

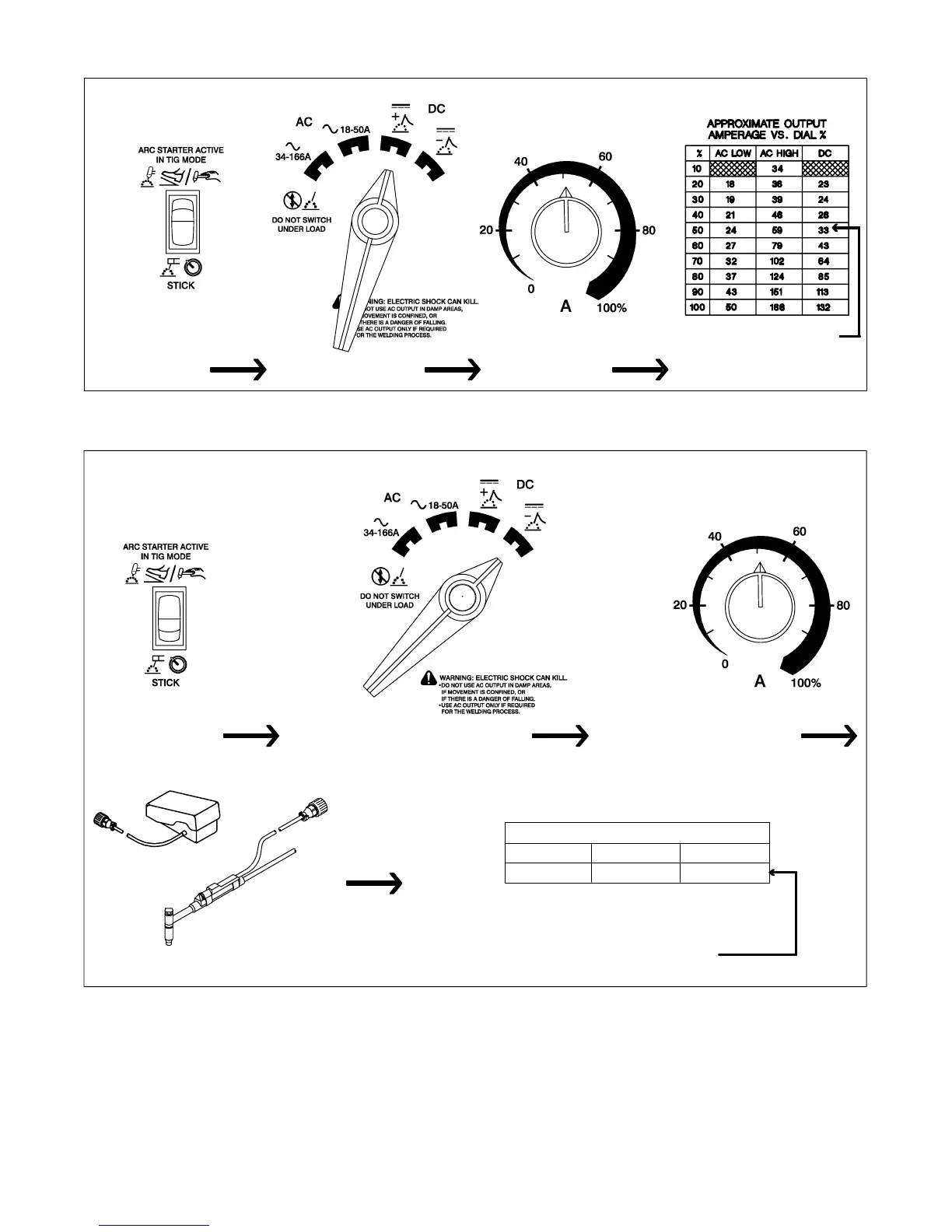

6-2. Example of Front Panel Amperage Control
In Example:
Range = DC
Percentage of Range = 50%
Weld Amperage = 33 A DC
Select percentage.Select weld process. Select range and polarity.
6-3. Example of Remote Amperage Control
Connect remote control.
GTAW Welding Amperage Range
AC Low AC High DC
20-50 A 60-165 A 30-165 A
In Example:
Range = DCEN
Percentage of Range = 50%
Remote weld amperage = 30−98 A DC
(50% of 30−165 A DC)
or
Select percentage.Select range and polarity.
Select weld process.
