OM-303 Page 13

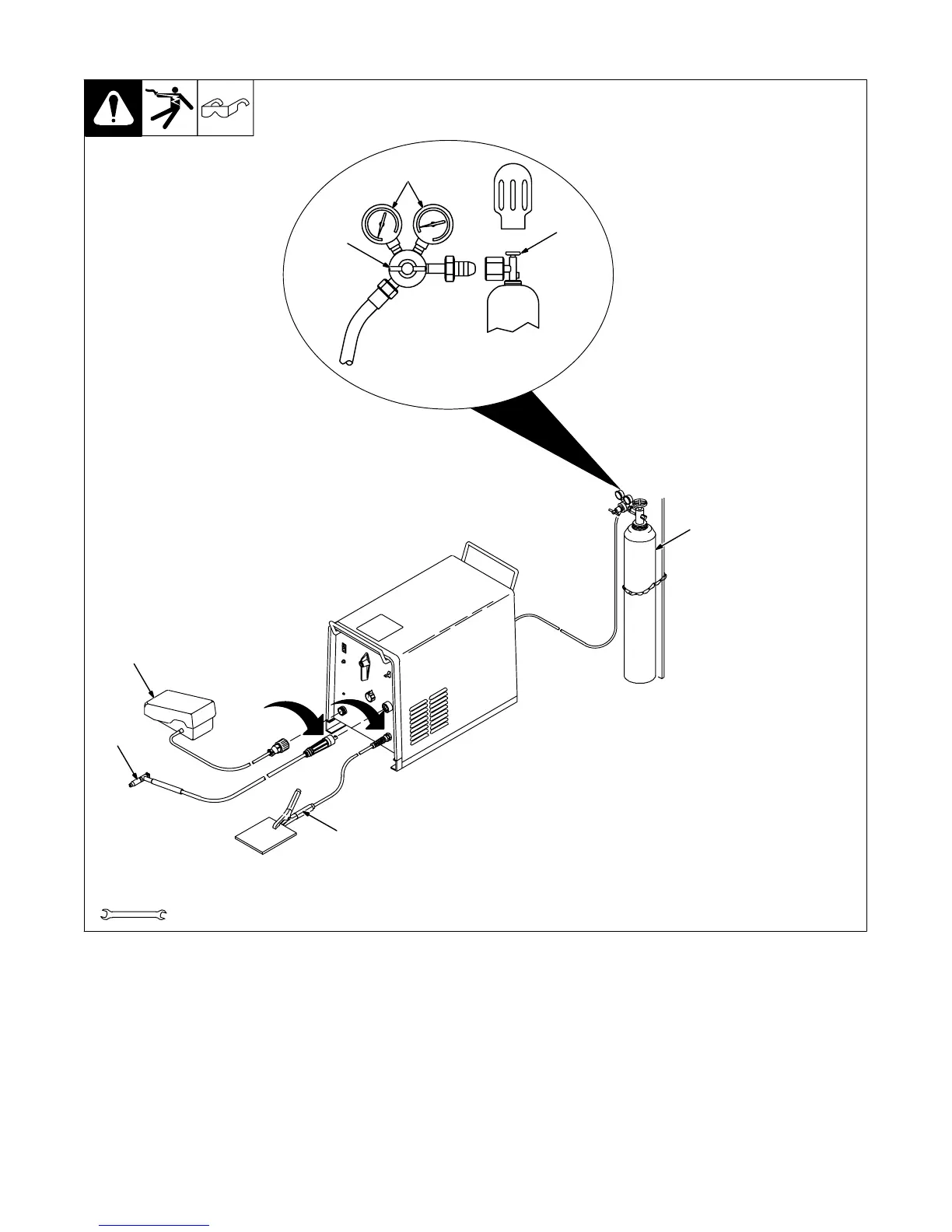

5-3. Typical TIG Connections
Ref. ST-157 858-A
Y Turn Off power before mak-
ing connections.
1 Remote Control
2 Torch
Connect to receptacles as shown.
3 Work Clamp
4 Cylinder
Chain or secure cylinder to running
gear, wall, or other stationary
support.
5 Cylinder Valve
Open valve slightly so gas flow
blows dirt from valve. Close valve.
6 Regulator/Flow Gauge
Install so face is vertical.
7 Flow Adjust
Typical flow rate is 20 cfh (cubic feet
per hour) (9.4 L/min).
5
6
7
Tools Needed:
5/8, 1-1/8 in
4
1
2
3
