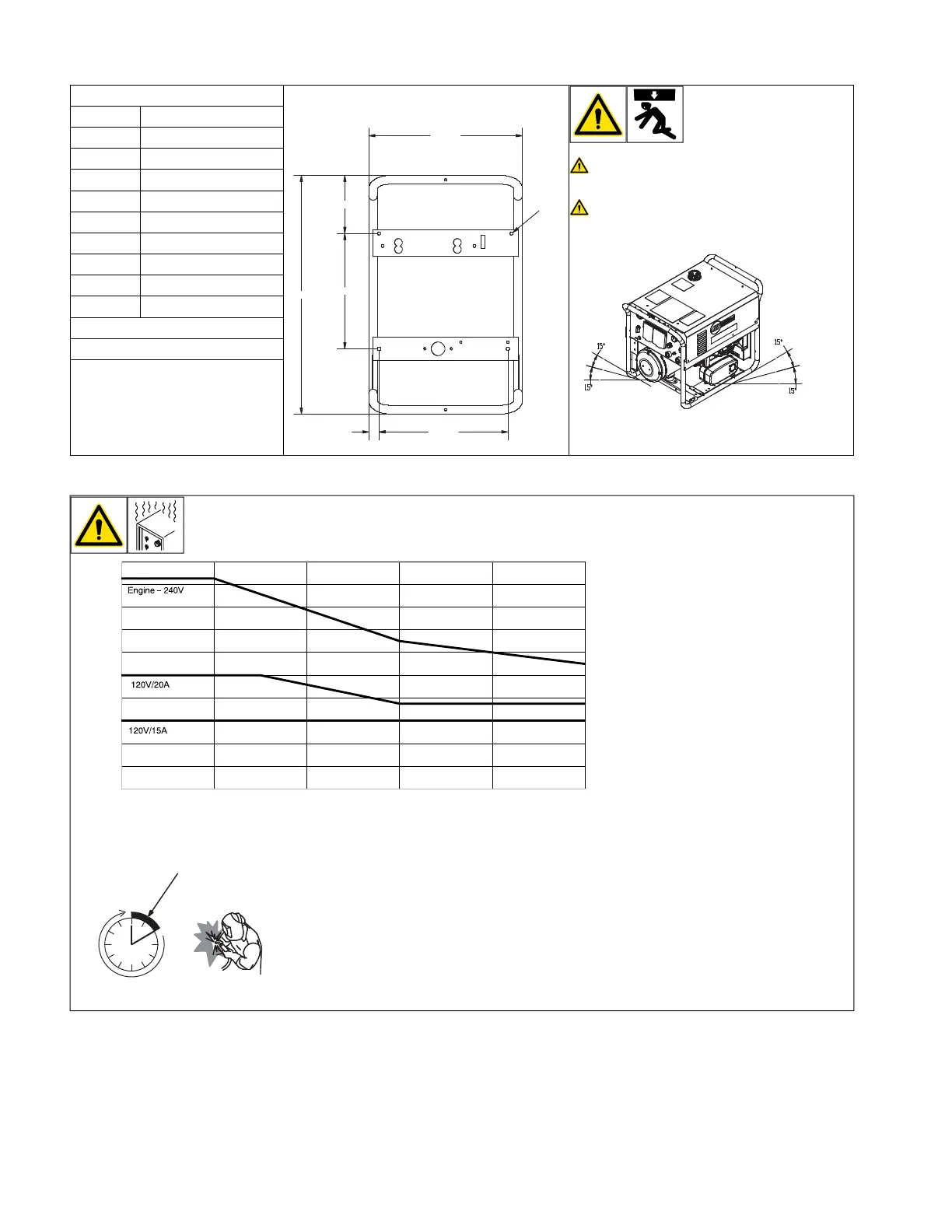

4-7. Dimensions, Weights, And Operating Angles
Dimensions
Engine End

A complete Parts List is available at www.MillerWelds.com
OM-279105 Page 4
1-3. Dimensions, Weights, And Operating Angles
280477
A
B
C
D
E
F
G
1-4. Duty Cycle
279100-A
0
20
40
60
80
100
120
140
160
180
0 10 20 30 40 50 60 70 80 90 100
OUTPUT AMPERES
% DUTY CYCLE
Engine 240V
120V/20A
120V/15A
Do not exceed tilt angles or engine could
be damaged or unit could tip.
Do not move or operate unit where it could
tip.
 A complete Parts List is available at www.MillerWelds.com
OM-279105 Page 4
1-3. Dimensions, Weights, And Operating Angles
280477
A
B
C
D
E
F
G
1-4. Duty Cycle
279100-A
0
20
40
60
80
100
120
140
160
180
0 10 20 30 40 50 60 70 80 90 100
OUTPUT AMPERES
% DUTY CYCLE
Engine 240V
120V/20A
120V/15A
Height 24.75 in. (629 mm)
Width 20-3/32 in. (510 mm)
Depth 31.25 in. (794 mm)
A 31.25 in. (794 mm)
B 7-39/64 in. (193 mm)
C 15-3/32 in. (383 mm)
D 20-3/32 in. (510 mm)
E 1-11/32 in. (34 mm)
F 16-27/32 in. (428 mm)
G 13/32 in. (10 mm) Dia.
Weight
300 lb (136 kg)
Lifting Eye Weight Rating:
430 lb (195 kg)
4-8. Duty Cycle And Overheating
0
20
40
60
80
100
120
140
160
180
200
0 20 40 60 80 100
OUTPUT AMPERES
% DUTY CYCLE
284900-A
277791-A
1
1 100% Duty Cycle
Duty cycle is the percentage of 10 minutes
that unit can weld at rated load without
overheating.
F
This unit is rated for welding at 110 am-
peres continuously with engine power.
NOTICE – Exceeding duty cycle can dam-
age unit and void warranty.

Miller Fusion 185 Specifications

General

Brand	Miller
Model	Fusion 185
Category	Portable Generator
