Miller Fusion 185 User Manual

OM-284208 Page 19
F
Complete Parts List is available at www.MillerWelds.com

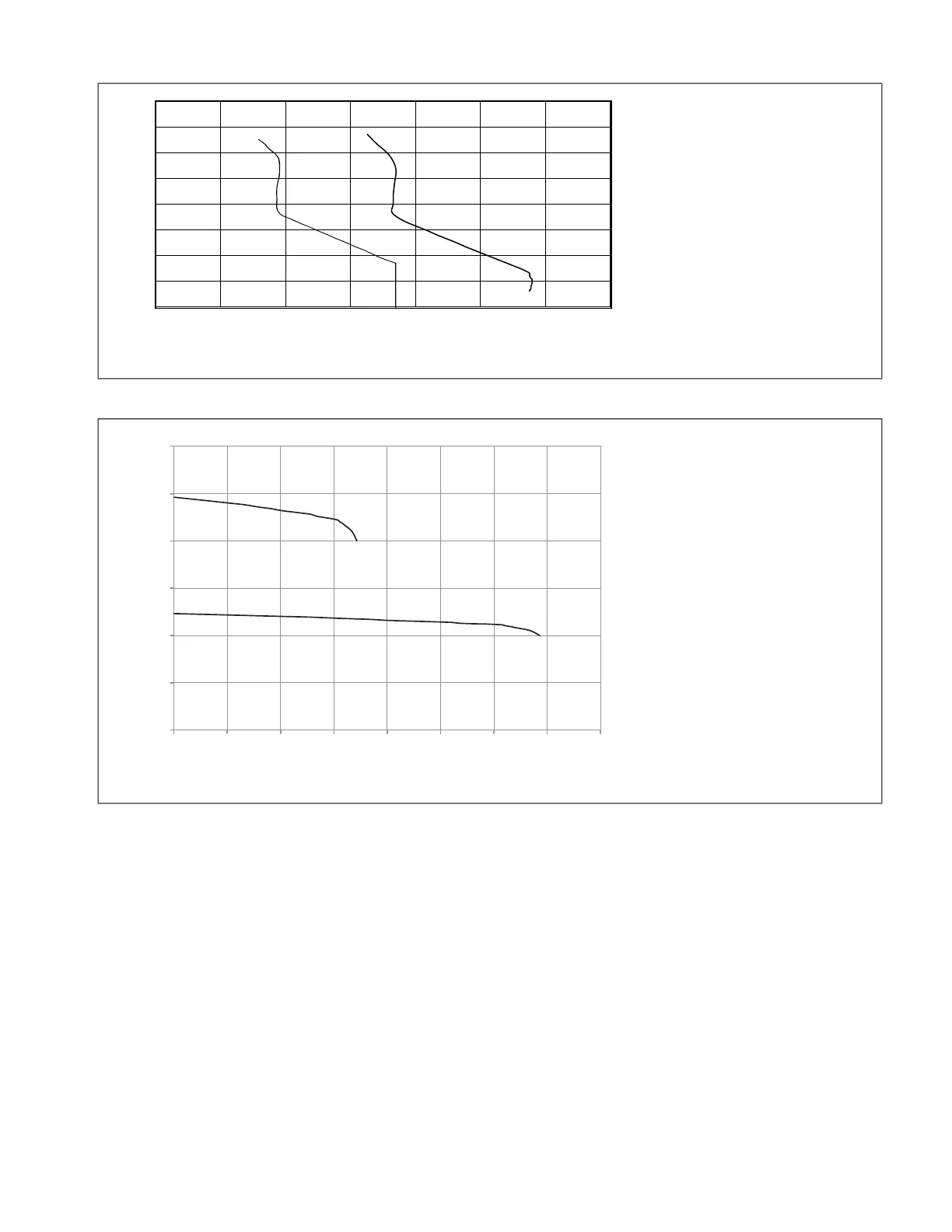

4-9. Volt-Ampere Curve
0
5
10
15
20
25
30
35
40
0 50 100 150 200 250 300 350
VOLTS
AMPS
284209-A
XAMNIM
The volt-ampere curve shows the minimum
and maximum voltage and amperage output
capabilities of the welder/generator. Curves
of all other settings fall between the curves
shown.
4-10. Generator Power Curve

A complete Parts List is available at www.MillerWelds.com
OM-279105 Page 5
1-5. Volt-Ampere Curve
279102-A
0
5
10
15
20
25
30
35
0 50 100 150 200 250 300
DC VOLTS
DC AMPERES
MIN
MAX
1-6. Generator Power Curve
268 591
0
50
100
150
200
250
300
0 10 20 30 40 50 60 70 80
VOLTS
AMPS
240 Volt
120 Volt
The AC generator power curves show the
generator power available in amperes at the
receptacles.
