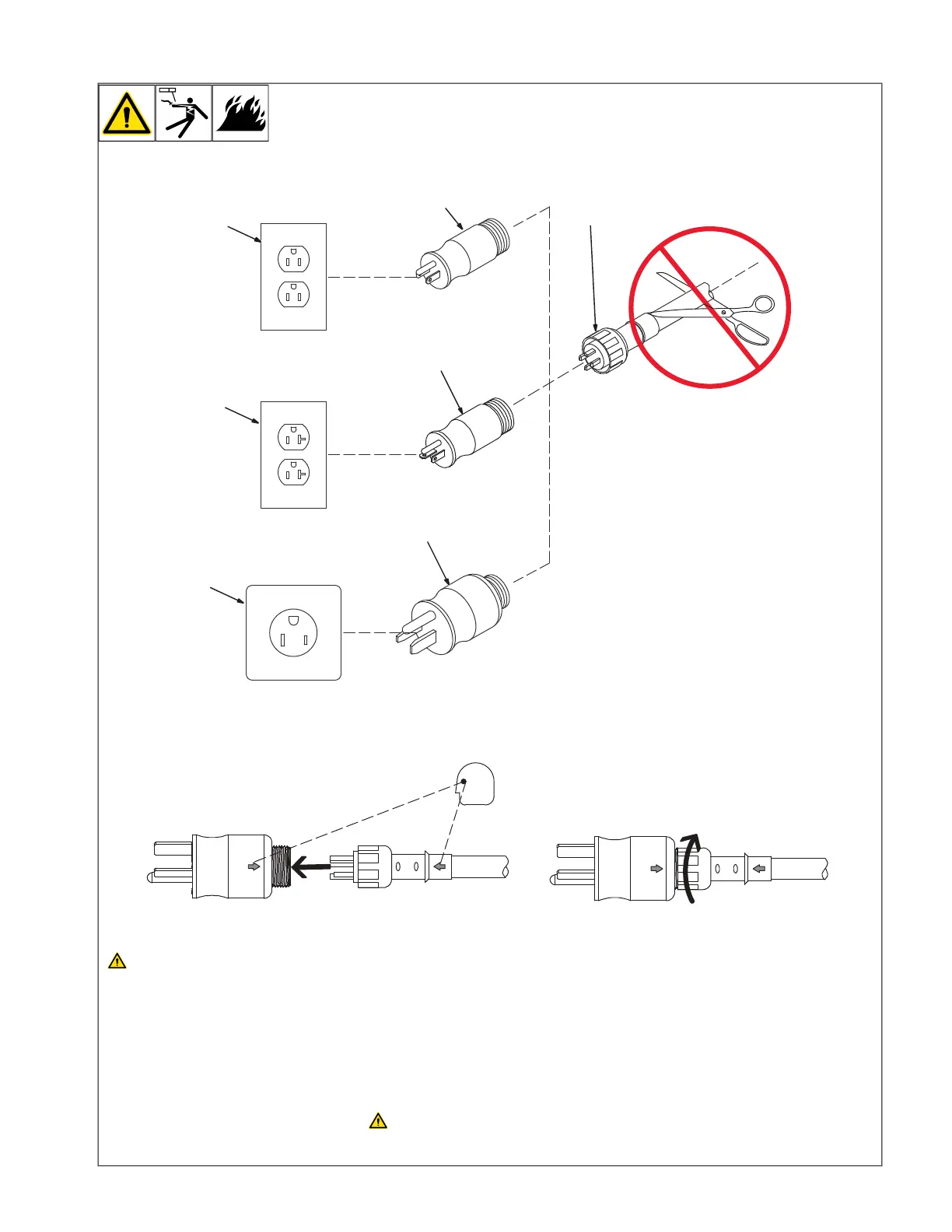

6-2. Multi-Voltage Plug (MVP) Connection
Selecting Plug
OM-253 392 Page 1
Ref. 803812-C
3
2
7
4
5
6
1
Connecting Plug To Power Cord
OM-253 392 Page 1
Ref. 803812-C
3
2
7
4
5
6
1
Do not cut off power cord connector
and rewire. The power cord connec-
tor and plugs will work with stand-
ard NEMA receptacles. Modifying
power cord, connector, and plugs
will void product warranty.
Selecting Plug
1 Power Cord Connector From Welding
Power Source
Select plug for power supply receptacle
available at site. Not all plugs shown are
provided as standard with unit.
2 Plug - NEMA Type 5-15P
3 Receptacle - NEMA Type 5-15R (Cus-
tomer Supplied)
4 Plug - NEMA Type 5-20P (Optional)
5 Receptacle - NEMA Type 5-20R (Cus-
tomer Supplied)
6 Plug - NEMA Type 6-50P
7 Receptacle - NEMA Type 6-50R (Cus-
tomer Supplied)
Follow electrical service guide for
230 VAC. Do not use plug rating to
size branch circuit protection.
Connecting Plug To Power Cord
Align arrow on plug with arrow on power
cord connector. Push together.
Tighten threaded collar. As threaded collar
is tightened, push plug onto adapter until
collar is completely tight.
Connect plug to receptacle.
