OM-232 593 Page 5

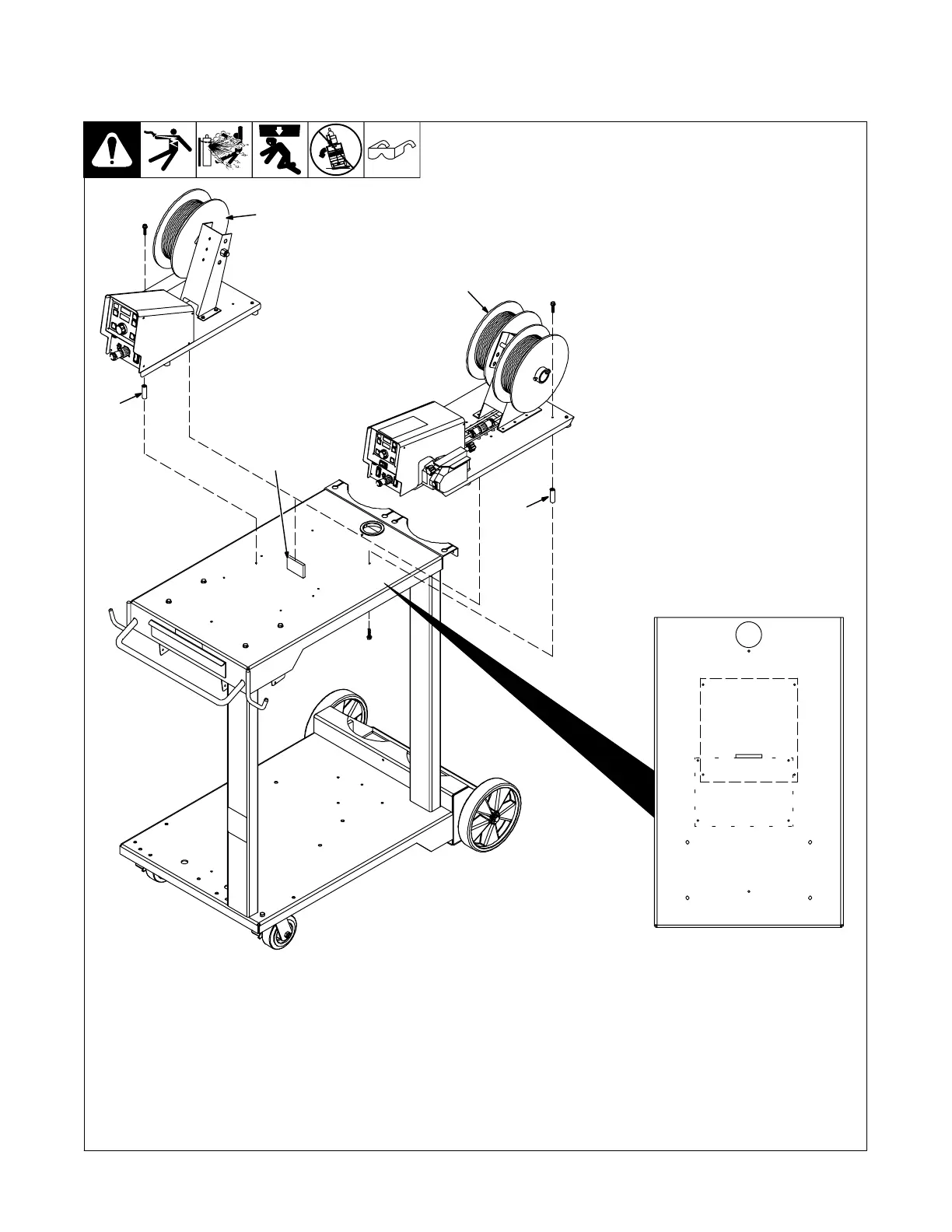

5. Installing Wire Feeder
804 935-B
1 Single Wire Feeder
2 Dual Wire Feeder
3 Stand Off Supports
Install the stand off supports to the
top of the cart in the hole pattern
that matches the feeder using the
supplied 10-24 screws.
4 Guide
Place a slot in wire feeder base over
the guide on the tray.
Attach the feeder to the stand off
supports using the supplied 10-24
screws.
A − Dual Feeder Hole Pattern
B − Single Feeder Hole Pattern
B
A
. For hooking up the power source, the
wire feeder, polarity switch, welding
guns, accessories etc., see the Owner’s
Manual for the individual unit.
3
4
2
1
3
To Next Page
