OM-232 593 Page 4
4. Installing XMT 456 Power Source Systems
804 934-B
. For hooking up the power source, the
wire feeder, polarity switch, welding
guns, accessories etc., see the Owner’s
Manual for the individual unit.

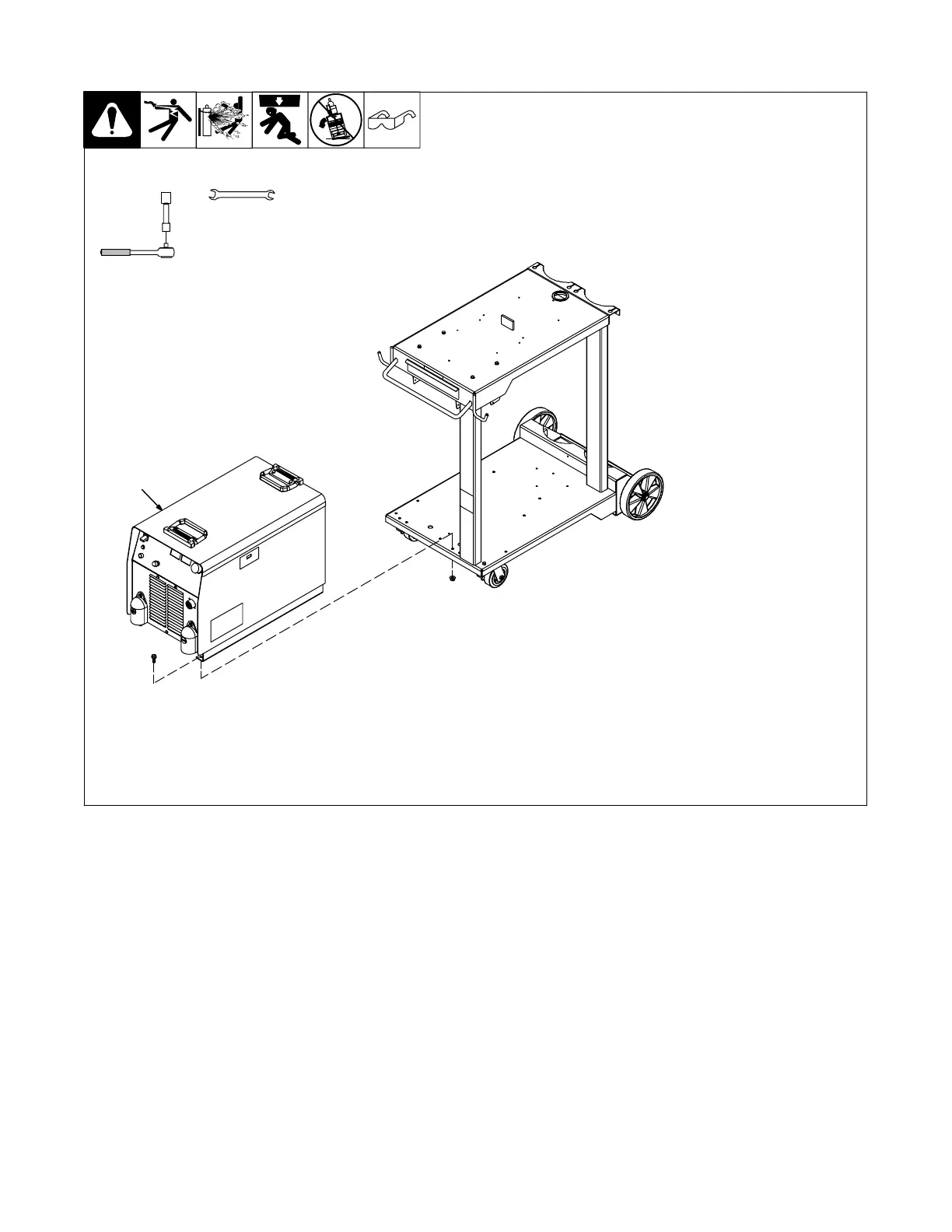

1 Power Source
Mount the power source to the cart
as shown using the 4 supplied
3/8−16 nuts and bolts.
Y Ensure that all components
are securely fastened to the
cart before moving.
Tools Needed:
3/8, 9/16 in
9/16 in
1
