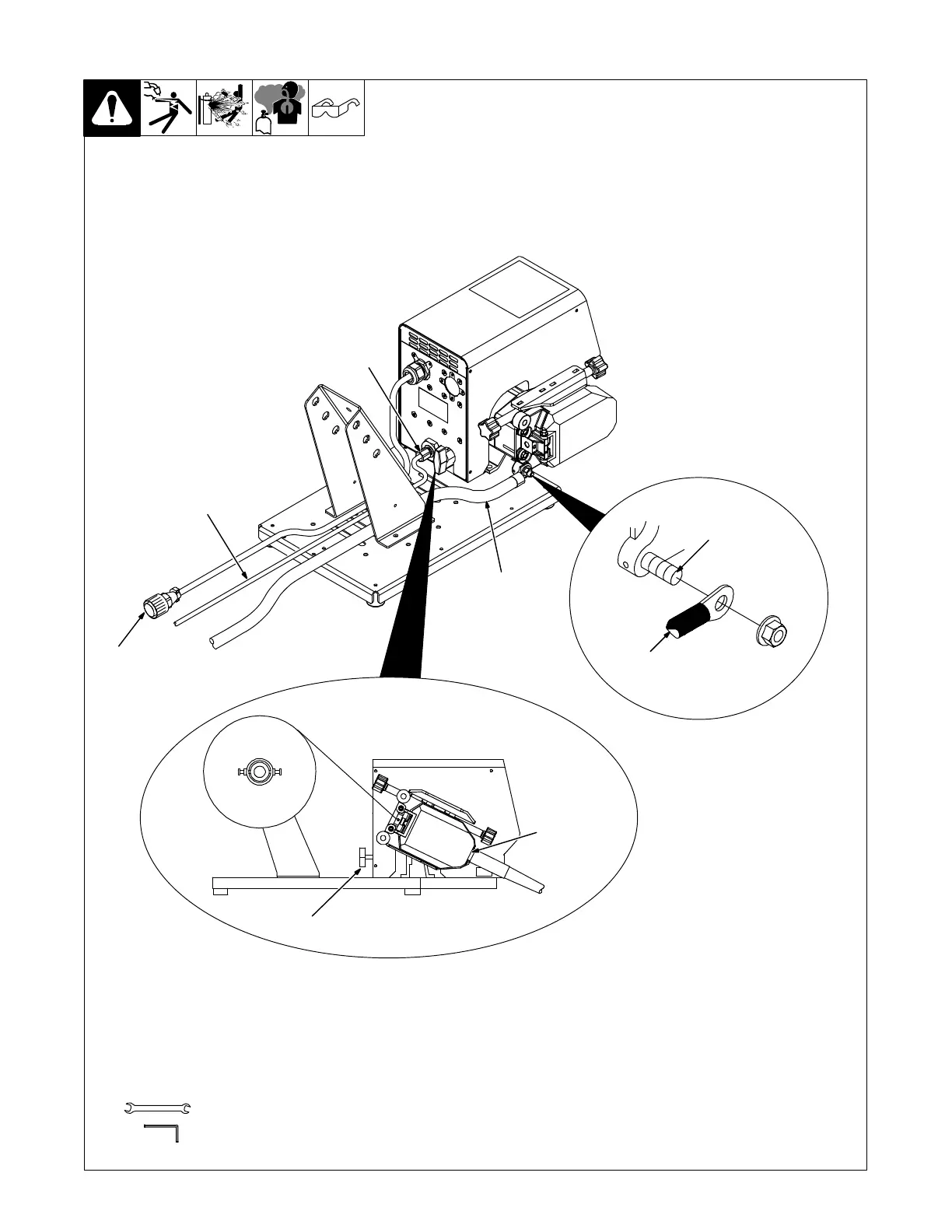

4-3. Rear Panel Connections And Rotating Drive Assembly
246041-D
2
1 14-Pin Control Cable - 15 Ft
(4.6 m)
2 Shielding Gas Valve Fittings
Requires fitting with 5/8-18 right-
hand threads. Connect customer-
supplied gas hose.
3 Weld Cable Terminal
4 Weld Cable
5 Drive Assembly
6 Drive Assembly Rotation
Knob
To rotate the drive assembly, loos-
en drive assembly rotation knob,
rotate drive assembly, and tighten
knob.
7 Gas Hose (Customer
Supplied)
9/16, 5/8 in.
Tools Needed:
3/16 in.
1
3
4
4
6
5
7
