TM-273245 Page 39S-74 MPa Plus

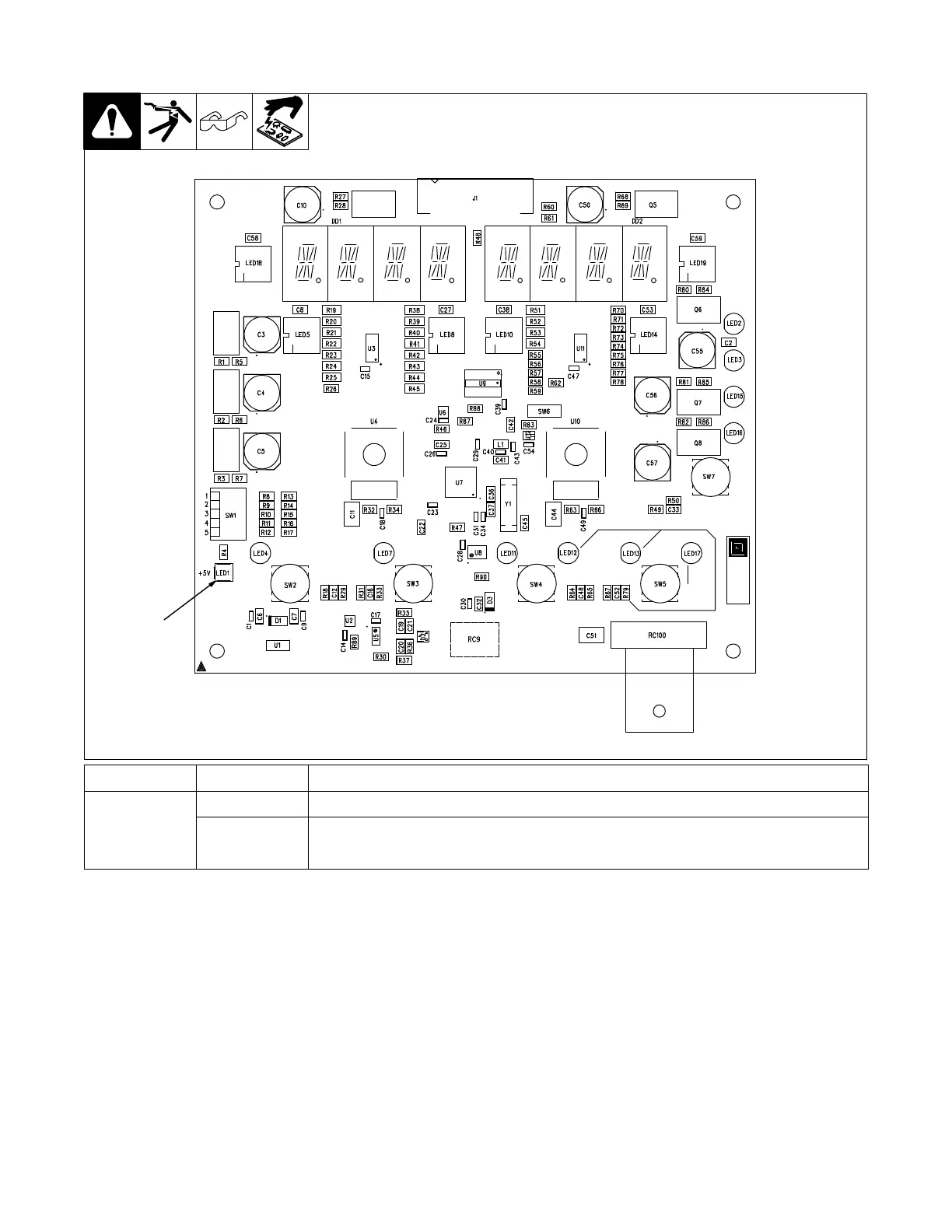

9-6. Diagnostic LED’s On User Interface Board PC2

272234-B

LED1

LED Status Self-Test

1 On Indicates +15 volts DC present on motor board PC1 with respect to DC circuit common.

Off If LED1 and LED2 are on − power supply circuits on motor board are working properly.

If LED1 and LED2 are off − Check power coming into motor board, and/or replace motor board.

If LED1 or LED2 is off − Replace motor board.
