CHAPTER 7 – 7200 CNC OPERATION
7 The Function Keys
Keys are active or available.
8 Status Window
Status Window displays detailed information on the state of the control. A
detailed description is given below.
Highlighted Function

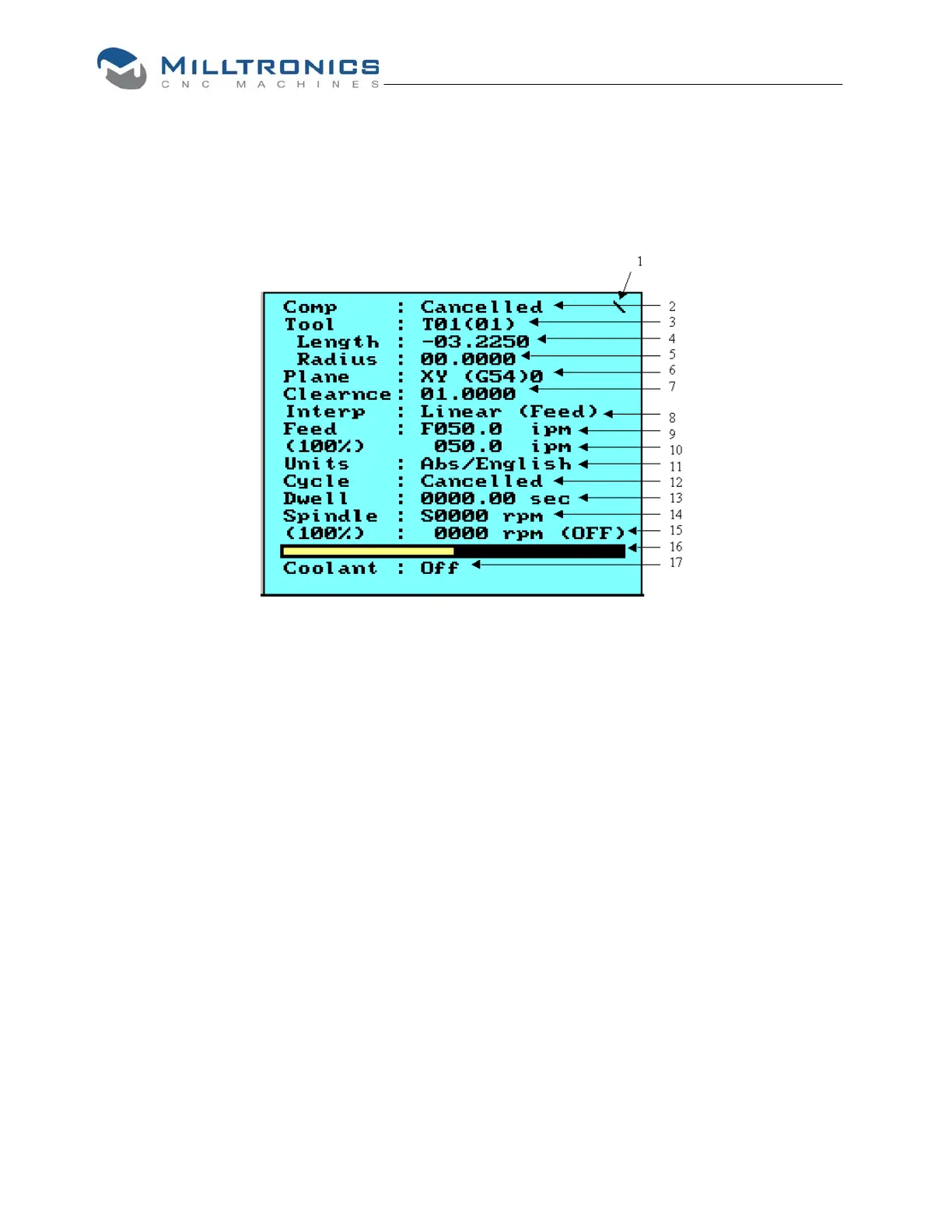

Diagram of Status Window
1 The \ changes back and forth to / and \ each time the status window is updated.
Radius Compensation (Left, Right or Cancelled)
in
4
7
ar (Feed), Linear (Rapid), Circular (CW), or Circular (CCW)
e
resulting
aximum, the
11
re is a canned cycle or autoroutine active it will be displayed on this
13
2 Comp: Tool
3 Tool: The first two digits indicate the active tool number. The second two digits
parentheses indicate the pending tool number. If you execute a T14 without the
M6 the pending tool number will be 14.
The tool length.
. 5 The tool radius
6 Plane and work offset: The plane is XY (G17), ZX (G18), or YZ (G19). The work
offset shows the current work offset G54 (0)…G59 (9).
Clearance or R-Plane.
8 Interpolation, Line
9 Feedrate: The programmed feedrate and its units (English feed per minute) ipm,
(Metric feed per minute) mmpm, (English feed per revolution) ipr, (Metric feed per
revolution) mmpr or (inverse feed) /min or /sec (If the machine is rapid mode th
ipm or mmpm.) units will always be
0 1 Feedrate override: The position of the feedrate override and the
machine is programmed to move faster than its mfeedrate. If the
clamped feedrate will be displayed, and an “*” will be displayed next to the %.
Units: (Absolute) Abs or (Incremental) Inc and English or Metric
e12 Cycle: If th
line.
Dwell: When a dwell is executed the dwell time will count down to zero.
45
