Pellerin Milnor Corporation
Damage will occur if a chemical supply can go in the machine when the chemical system is off.
Some configurations of components can let the chemical supplies go in the machine by a siphon
(Figure 2, page 10). Some can let chemical supplies go in the machine by gravity (Figure 3, page
11).

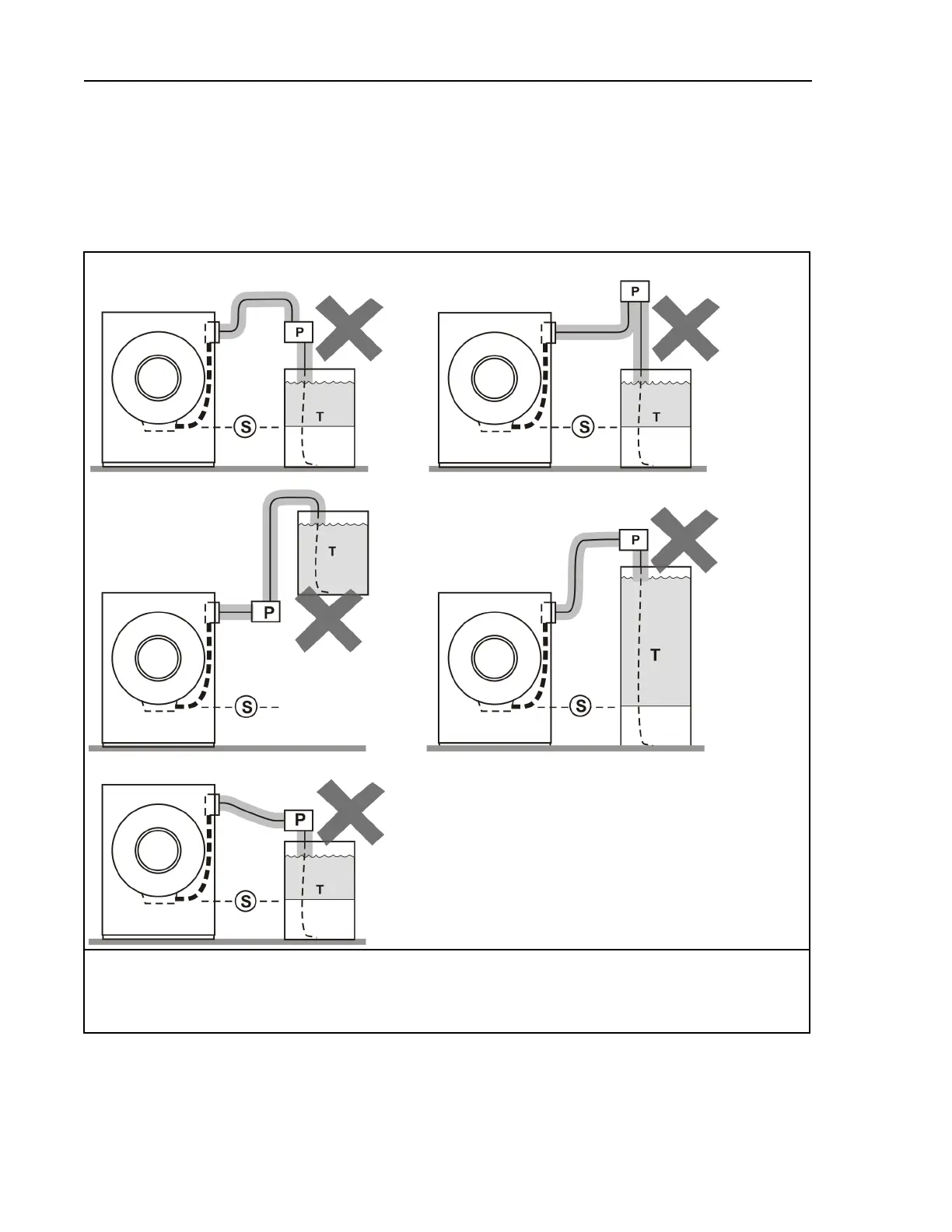

Figure 2. Incorrect Configurations That Let the Chemical Supply Go In the Machine by a Siphon
Schematic Views
Legend
P...Pump
T...Chemical tank
S...The siphon occurs above here. Liquid in the gray parts of the chemical tube and tank can go in the machine.
Safety
