3.2.2 Inverters
BNWUUH01.C08 0000351755 A.5 B.21 A.4 10/12/21 9:38 AM Released
CAUTION: Insufficient airflow — will cause the inverter to burn out.
� Keep fans, filter, vents, and braking resistors clean.

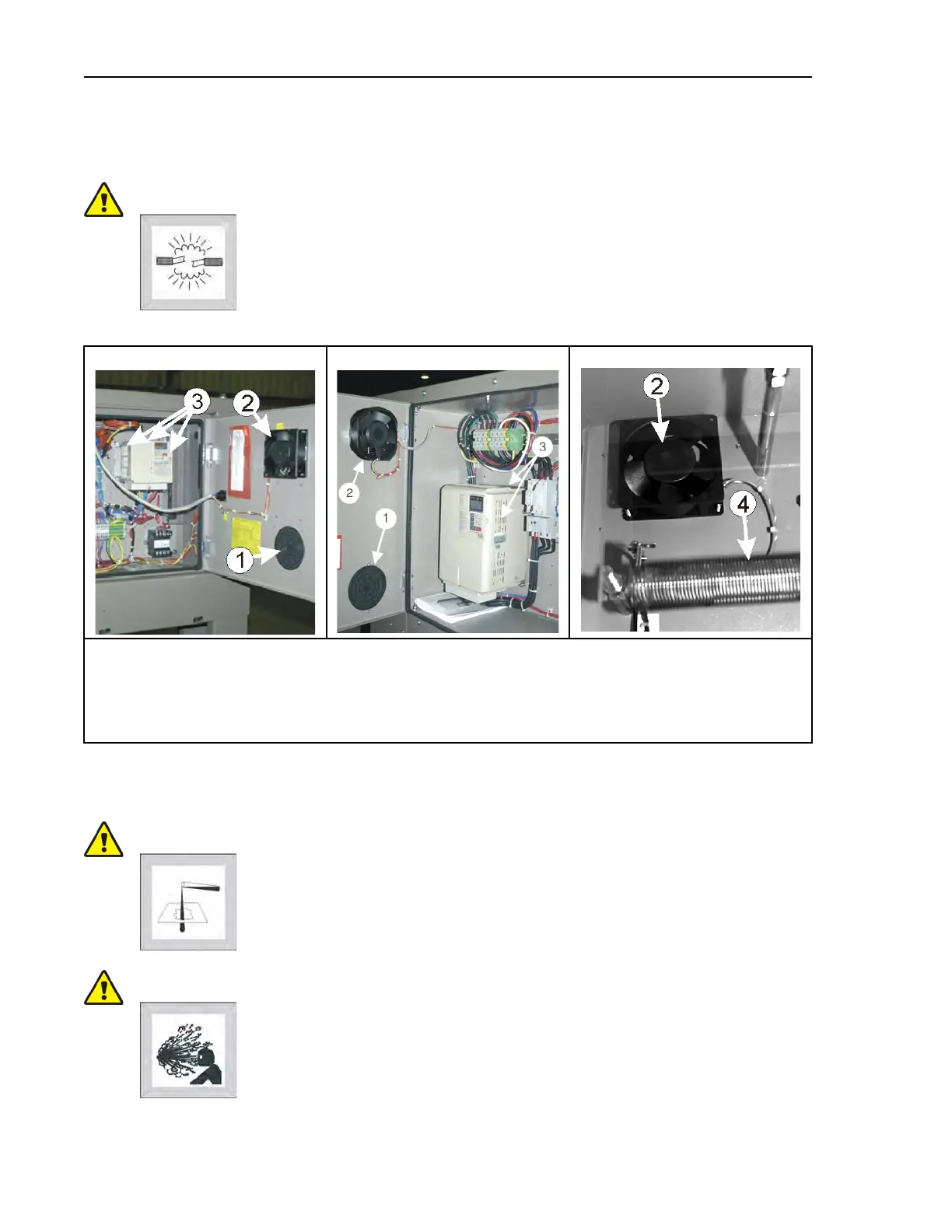

Figure 9. Electric Box and Inverter. These are examples. Your machine can look different.
30022X_ Washer-extractor
48040F_ Washer-extractor
76039 CBW
®
Tunnel Washer
Legend
1...Air filter
2...Fan on electric box door. Tip: Put streamers in front of the fan to make sure the fan operates.
3...Inverter cooling vanes and vents. See caution statement below.
4...Braking resistor, if applicable
3.2.3 Chemical Devices
BNWUUH01.C09 0000351754 A.5 B.21 A.8 10/25/21 2:12 PM Released
CAUTION: Chemical corrosion — can damage the machine and the goods.
� Connect chemical tubes only to chemical manifold inlets.
� Stop leaks. Remove leaked supplies from surfaces.
� Speak to your dealer or Milnor
®
if you see corrosion damage.
CAUTION: High water pressure — can cause laundering chemicals to splash on per-
sonnel and machine surfaces.
� Make sure the pressure is set as told in the maintenance summary.
Routine Maintenance
