Installation Tag Guidelines
BNWOAI01.R01 0000187126 C.4 C.2 B.2 7/28/23, 3:47 PM Released
36021V5J 36021V5Z 36021V7Z 36026V5J
36026V5Z 36026V7Z 42026V5J 42026V6Z
42030V6Z
NOTICE: This information may apply to models in addition to those listed above. It ap-
plies to paper tags. It does not apply to the vinyl or metal safety placards, which must re-
main permanently affixed to the machine and replaced if no longer readable.
Paper tags on the machine provide installation guidelines and precautions. The tags can be tie-on
or adhesive. You can remove tie-on tags and white, adhesive tags after installation. Yellow adhe-
sive tags must remain on the machine.

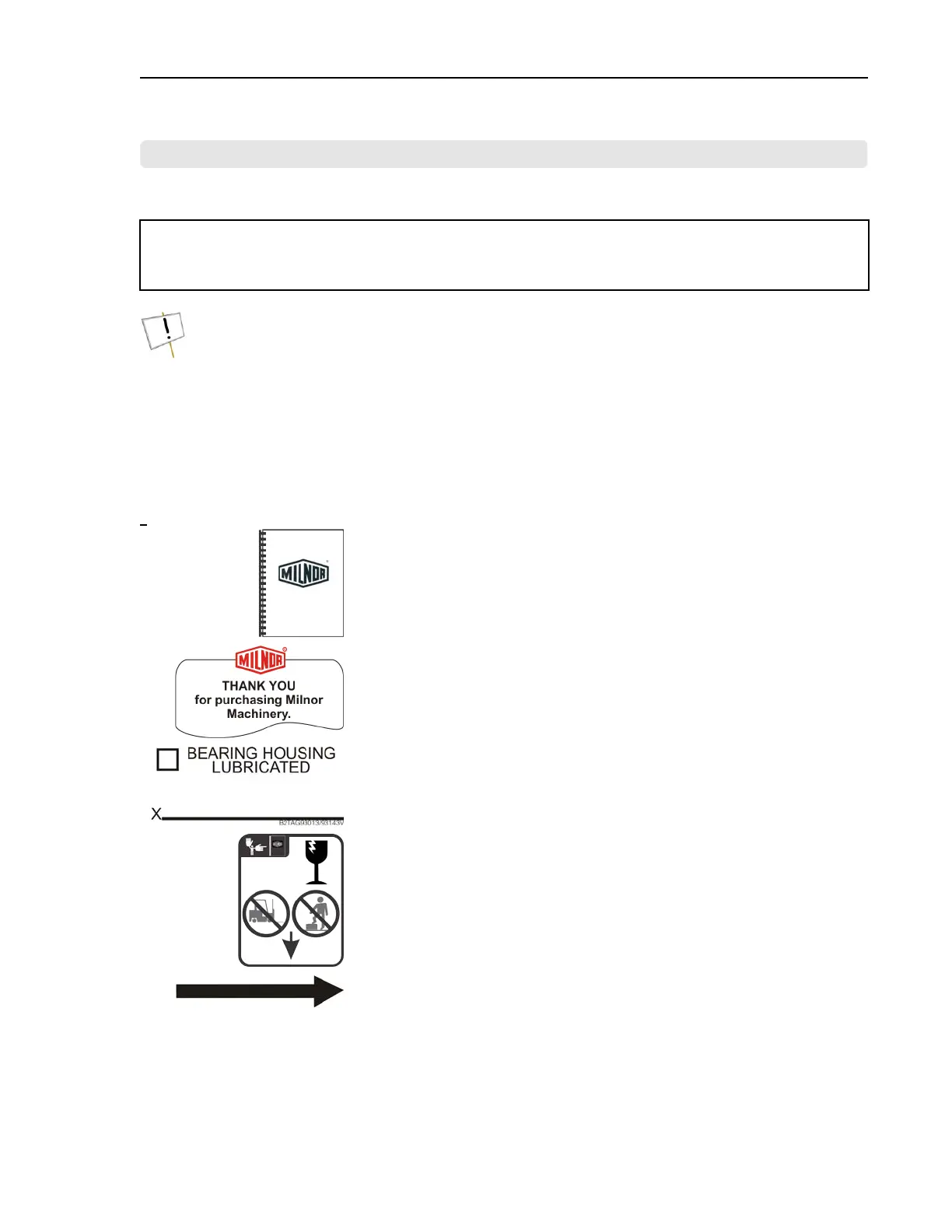

The following entries explain the installation tags. Each entry includes: 1) the tag illustration, 2)
the tag part number at the bottom of the tag, and 3) the meaning of the tag.
Symbol Explanation
Read the manuals before proceeding. This symbol appears on
most tags. The machine ships with safety, operator, and routine
maintenance guides for customer use. Milnor dealer manuals for
installing, commissioning, and servicing the machine are also
available from the Milnor Parts department.
B2TAG88005: This carefully built product was tested and in-
spected to meet Milnor performance and quality standards by
(identification mark of tester).
B2TAG93013: This bearing housing was lubricated at the Milnor
factory before shipment. (Only used on 36” V models. Not used
on 42” V models.)
B2TAG94078: Do not forklift here; do not jack here; do not step
here—whichever applies.
B2TAG94081: Motor must rotate in this direction. On single mo-
tor washer-extractors and centrifugal extractors, the drive motor
must turn in this direction during draining and extraction. This tag
is usually wrapped around a motor housing. If the motor turns in
the opposite direction when the machine is first tested, the electri-
cal hookup is incorrect and must be reversed as explained in the
schematic manual.
General Information
