Precaution Explanation

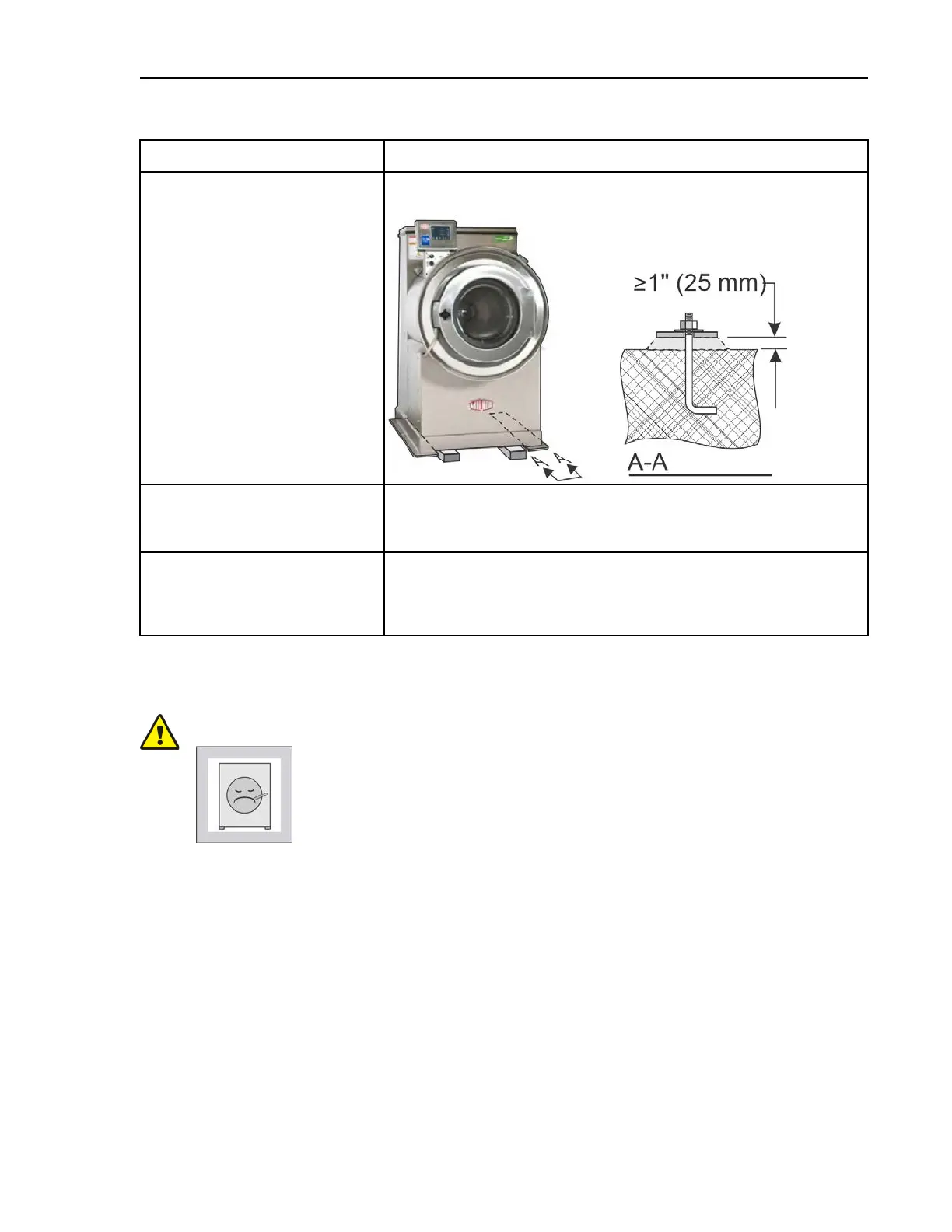

Set the machine at the correct
height and level.
Use blocking to get the machine base level and the base pads a
minimum of 1” (25 mm) above the floor. Example:
Apply machinery grout evenly
so that support is distributed.
Fill all voids between the foundation and each base pad with in-
dustrial strength, non-shrinking grout. Allow the grout to fully
cure per the grout instructions.
Tighten anchors alternately so
that the hold-down force is
distributed.
Raise the machine slightly and remove the wood blocking. In-
stall a flat washer and nut on each anchor bolt and tighten in-
crementally in an alternating pattern. After tightening, check
each anchor at least twice.
Technician Precautions
BNWUUI03.R03 0000257735 C.4 B.7 A.5 1/2/20, 2:19 PM Released
CAUTION: Overlooked or mishandled shipping restraints — can cause costly ma-
chine damage.
� Leave all internal shipping restraints in place until the machine is
anchored.
� Check for and remove shipping tie wraps.
� Check for and remove suspension hold-down hardware, if applicable.
� Check for and remove red shipping brackets, if applicable.
� See the “Cylinder inspection” warning and inspect the cylinder for smoothness.
