MIMAKI CG-FX SERIES - Installation and Use Precautions; Installation Precautions

WTQA2011-0676 - 6 -
4. Plotting from FineCut
Please follow the operation instructions.

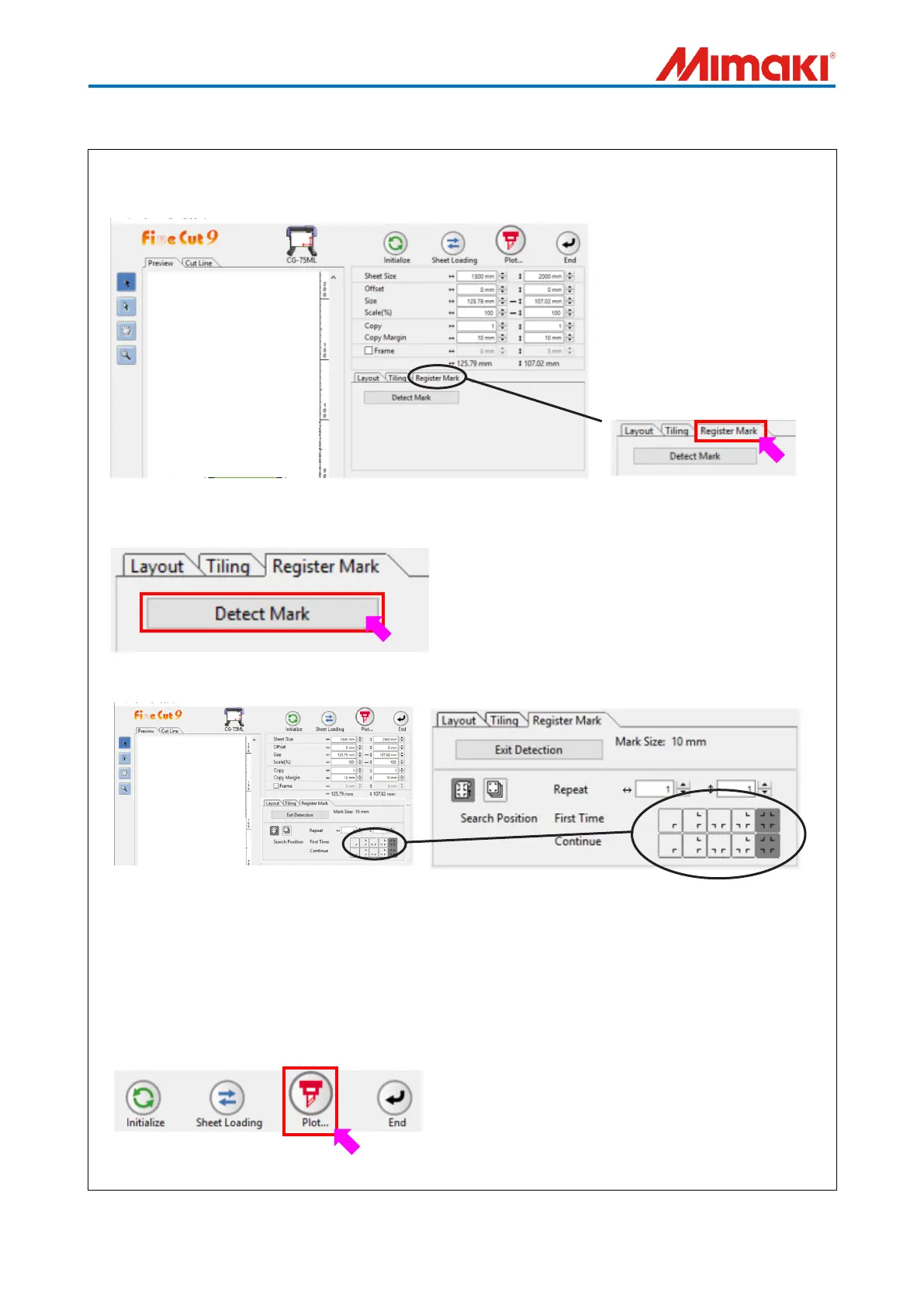

1. Launch FineCut and click on the [Register Mark] tab in the plot screen.
* Rotate the sheet beforehand to ensure it is in the same orientation, and then click on the [Register Mark] tab.
2. Click on the [Detect Mark] button.
3. The screen will switch after recognizing the dimensions within the registration marks area.
Set the registration mark detection to “4 points detection”
for the “First Time”.
Subsequent (continue) detection will also have higher
accuracy when using 4-point detection.
4. Click on the [Plot] button.
