Chapter 5 Using the XY Slitter
151
4

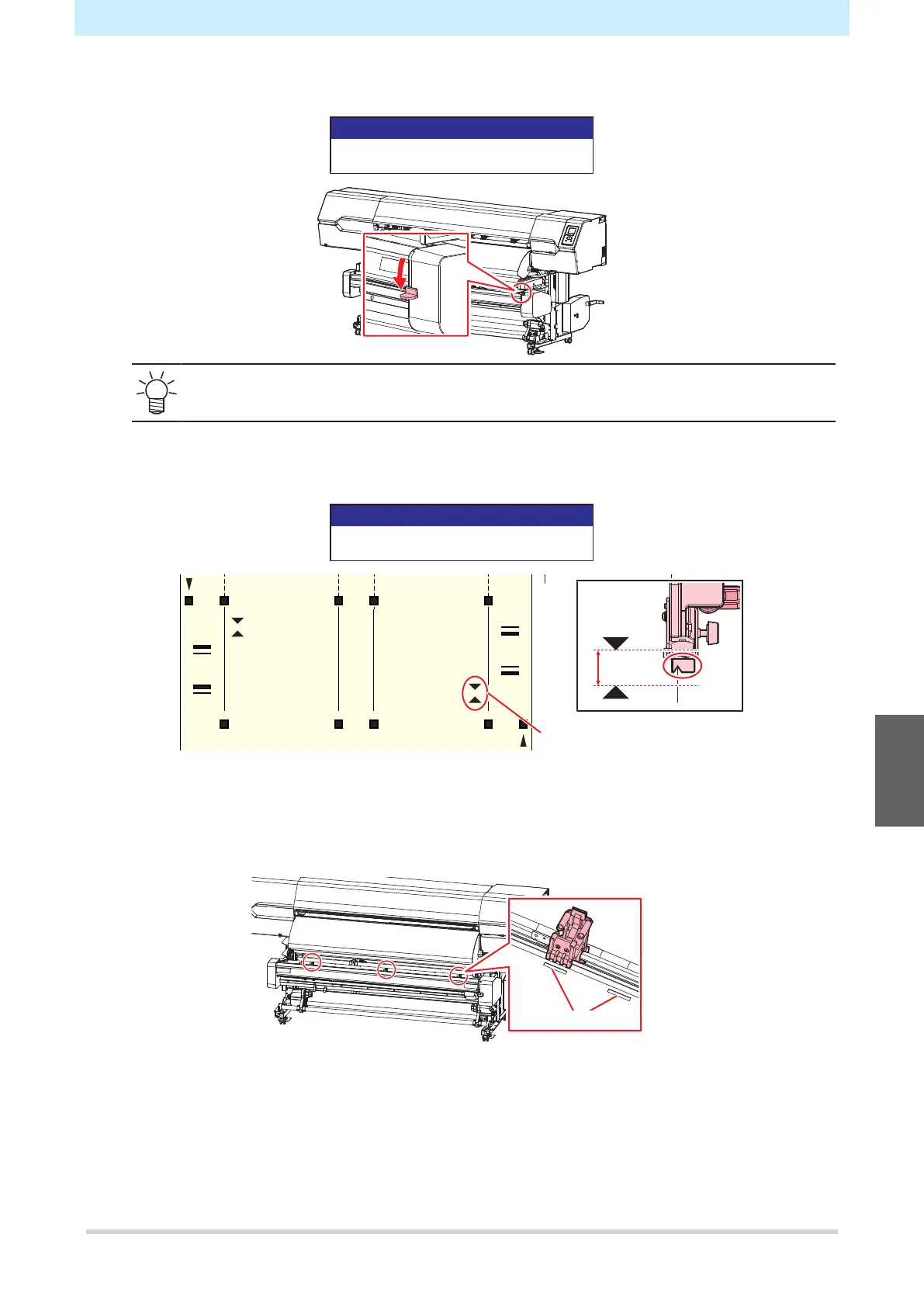

Lower the XY clamp lever.
Up the clamp lever of XY Slitter
• The XY carriage can be moved by hand when the XY clamp lever is lowered.
5
Press the up/down keys to feed the media.
• Align the groove in the X cutter with the X cutter alignment mark position.
Feed to the X Cutter set position
[1] 20.0
[2] 55.0
[3] 655.0
[4] 705.0
[5] 1305.0
X cutter positioning marks
Enlarged view
6
Press the [ENTER] key.
7
Move the XY clamps.
• Align the XY clamps with the mark (square hole) positions.
5
