Chapter 6 Settings
174

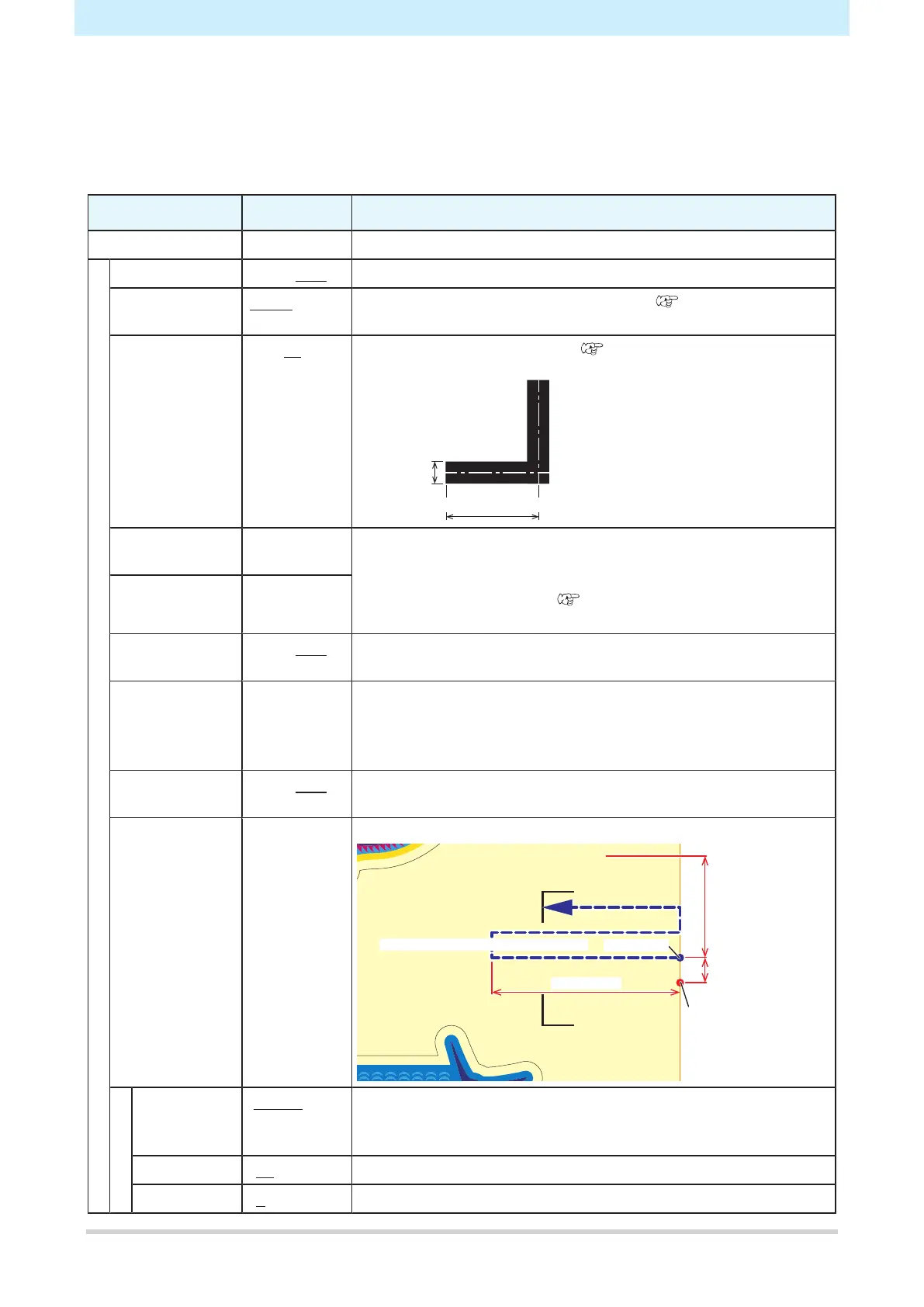

6.6 Cutting Menu
For setting the various cutting function operations (CJV only)
l
Menu List
Item
Setting
*1
Details
Mark Detect - Enter the conditions of the printed register marks.
Detect ON/OFF Set this to ON to cut cutting data with register marks.
Form Type1/Type2/
Zero Margin
Select three types of register mark shapes. "Register
Marks"(P. 112)
Size 5 to 10 to 40
mm
Set the register mark length (B). "Standards for Register Mark
Length and Line Width"(P. 113)
Line width
Register mark length (B)
Offset X -5.00 to 5.00
mm
Change the position of the register mark origin. If the cut position
shifts in the same direction, change the position of the origin.
• If "ERROR C37 Mark Org" is displayed, change the layout by
referring to the following. "Reading Range of Register
Marks"(P. 115)
Offset Y -5.00 to 5.00
mm
Detect End Key
Start
ON/OFF If you press the [END] key on the LOCAL mode screen, the cutter
unit moves over the platen so that register marks can be detected.
Sensor sensitivity 1 to 7 Check the sensitivity of the register mark sensor. Normally, set this
to "4".
• If it cannot detect the register marks: Increase sensitivity.
• If it mis-detects the register marks: Decrease sensitivity.
Mark FillUp ON/OFF When the "Fill around the registration marks" function of the RIP
software is enabled, set this to "ON".
Detect Area - Sets the automatic register mark detection area.
Automatic registration mark detection path
Start position
Scan direction
End position of the
immediately previous data
Feed direction
X offset
Scan Dir. Default/0 cm
to machine
width
Sets the scan direction for automatic register mark detection.
• When set to [DEFAULT], the detection operation is performed at
half the media width.
Feed Dir. 10 to 50 cm Sets the media feed direction for automatic register mark detection.
Offset X 0 to 100 cm Sets the automatic detection start position for the next register mark.
To Next Page
