MIMAKI JV5 Series Maintenance Manual

© 2009 MIMAKI ENGINEERING CO.,LTD.
6.4.5 P.2
6.4.5 Linear Encoder Scale
1
2
3
4
5
6
7
8

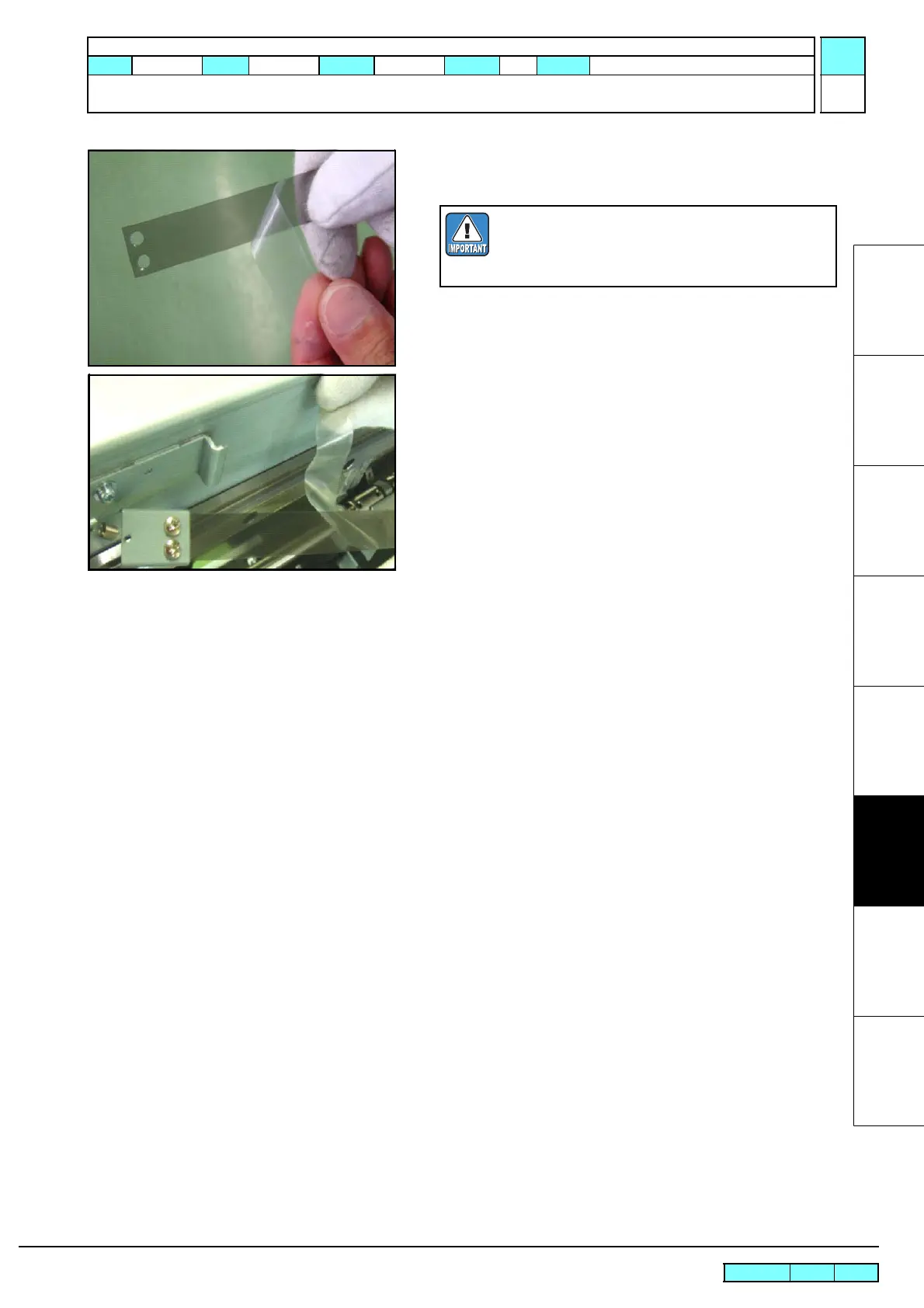

6. Peel off the left end (the side with two holes) of the protection
film on the new linear encoder scale.
7. Mount the scale hook on the linear encoder scale so that the
surface where the protection film is stuck faces to the Y bar side.
8. Engage the scale hook with the scale base L through a spring,
and mount the linear encoder scale on the scale base R while
peeling off the protection film.
9. Reverse the disassembly procedure for the subsequent
reassemblies
While at work, be sure not to attach fingerprints or
oil to the linear encoder scale. Also, pay attention not
to break or scratch it. (If contaminated, clean the
scale with a neutral detergent.)
R.1.0
Maintenance Manual > Disassembly and Reassembly > Drive System > Linear Encoder Scale
Model CJV30/TPC Issued 2008.08.04 Revised F/W ver. 1.00 Remark
1.0
Rev.
