8.5.2 P.4

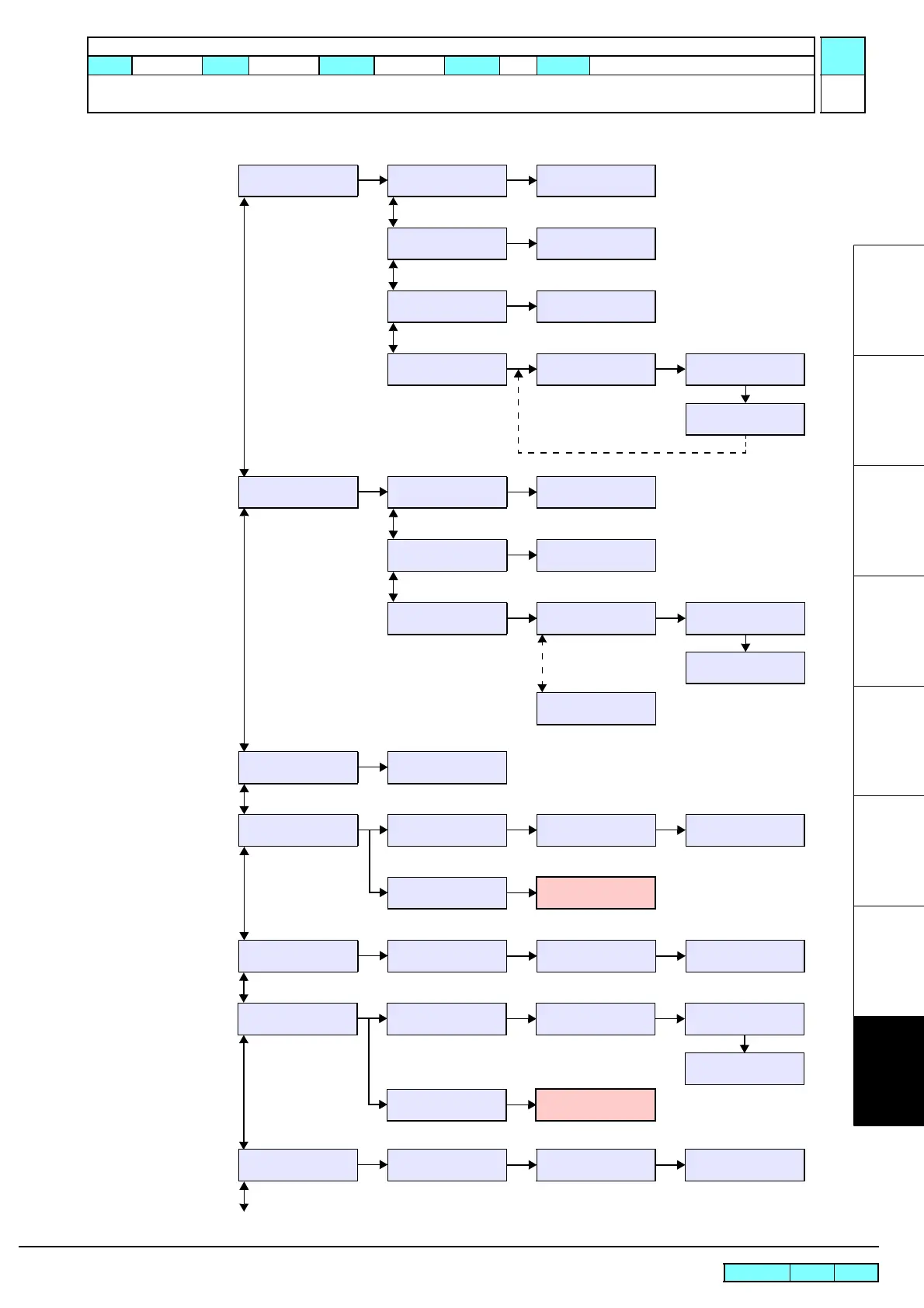

8.5.2 #TEST
1
2
3
4
5
6
7
8
[FUNCTION]: Turns on/off all valves.
[] / []
#TEST
INK CARTRIDGE <ent>
#INK CARTRIDGE
PACK&END SENSOR<ent>
PACK 1234 5678
END 1234 5678
[] / []
#INK CARTRIDGE
CARTRIDGE VALVE<ent>
#CARTRIDGE VALVE
oooo oooo
CNT=1 NG=1
1234 5678
[] / []
#INK CARTRIDGE
CARTRIDGE LED <ent>
ERROR : oooo oooo
ACTIVE : oooo oooo
[] / []
#INK CARTRIDGE
INK-IC CHECK <ent>
#INK-IC CHECK
1234 5678
CNT=1
1234 5678
Pressing [FUNCTION] moves the
cursor to ERROR or ACTIVE.
When there is no ERROR.
#TEST
WASH CARTRIDGE <ent>
#WASH CARTRIDGE
PACK&END SENSOR<ent>
#PACK&END SENSOR
PACK :ON END :OFF
[] / []
#WASH CARTRIDGE
CARTRIDGE VALVE<ent>
#CARTRIDGE VALVE
OPEN
[] / []
#WASH CARTRIDGE
IC CHECK <ent>
#IC CHECK
CHECK START :ent
#IC CHECK
CNT=1 NG=0
#IC CHECK
CNT=1 NG=0
Counting stops.
#IC CHECK
NO CARTRIDGE
When the cartridge is absent.
#PEN PRESSURE
IN = 0x200
#TEST
PEN PRESSURE <ent>
[] / []
#MARK LED
SensLED = 111 ( 7mA)
#MARK LED
SPD = 10cm/s DIR = X
#MARK LED
in= mA : out=0x0000
#TEST
MARK LED <ent>
[] / []
#MARK LED
OUT :0000 IN: 0000
[FUNCTION]
Initializing operation
#HEAD JOINT
ACTION :ent
#HEAD JOINT
COUNT = 0
#HEAD JOINT
COUNT = 0
#TEST
HEAD JOINT <ent>
Counting stops.
[] / []
[] / []
#PINCHI ROLLER
Select : L>O>L>M>L>H
#PINCHI ROLLER
PINCH ROLLER No. = 7
#PINCHI ROLLER
ACTION :ent
#TEST
PINCH ROLLER <ent>
#PINCHI ROLLER 10
Select : L>O>L>M>L>H
Counting stops.
#PINCHI ROLLER
HHHHHHH <No.1:HIGH>
[FUNCTION]
Motion
#SolenoidTIMEOUT
ACTION :ent
#SolenoidTIMEOUT
0.0sec
#SolenoidTIMEOUT
0.0sec
#TEST
SolenoidTIMEOUT<ent>
[] / []
Counting stops.
[] / []
R.1.0
Maintenance Manual > Operation Flow > Service Mode > #TEST
Model CJV30/TPC Issued 2008.08.04 Revised F/W ver. 1.00 Remark
