Maintenance Manual > Disassembly and Reassembly > Ink-related Parts > Pump Motor
Model CJV30/TPC Issued 2008.08.04 Revised F/W ver. 1.00 Remark
1.0
Rev.

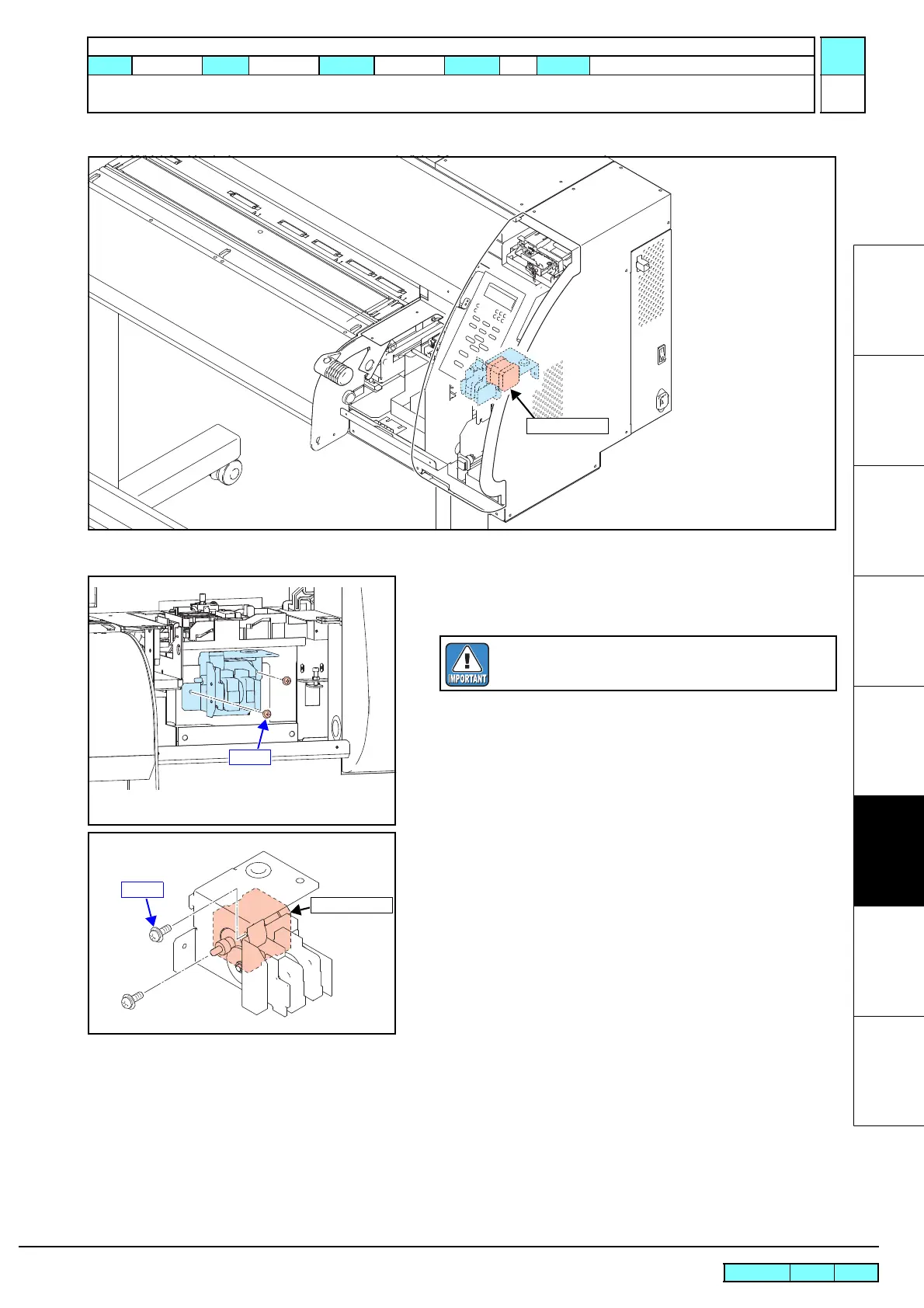

6.2.4 Pump Motor
 Work procedures
1. Remove the station cover U.
2. Remove the pump tube connected to the cap head.
3. Remove the pump motor assy connector and then stepping
motor assy together with the pump assy.
4. Remove the stepping motor.
5. Reverse the disassembly procedure for reassembly.
Protrude the pump tube of the discharge side from tube end by 5
to 9 mm.
Pump Motor
Screw
Take care not to pollute the surroundings with waste
ink or washing liquid.
Pump Motor
Screw
