Maintenance Manual > Disassembly and Reassembly > Ink-related Parts > Pump Assy
Model CJV30/TPC Issued 2008.08.04 Revised F/W ver. 1.00 Remark
1.0
Rev.

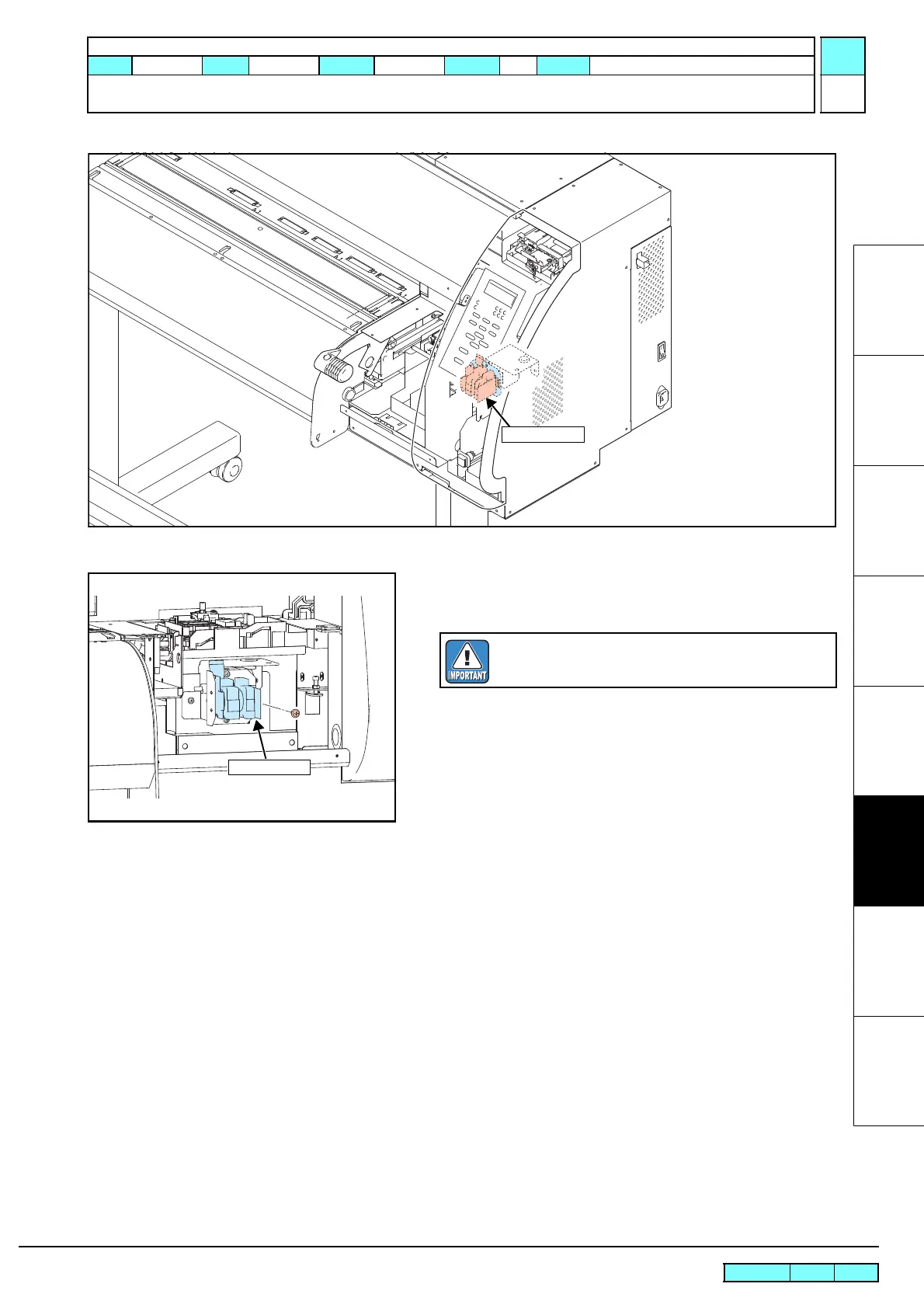

6.2.5 Pump Assy
 Work procedures
1. Remove the station cover U.
2. Remove the pump tube connected to the CP coupler.
3. Remove the pump assy from the pump BKT.
4. Reverse the disassembly procedure for reassembly.
Protrude the pump tube of the discharge side from tube end by 5
to 9 mm.
Pump Assy
Pump Assy
Take care not to pollute the surroundings with waste
ink or washing liquid.
