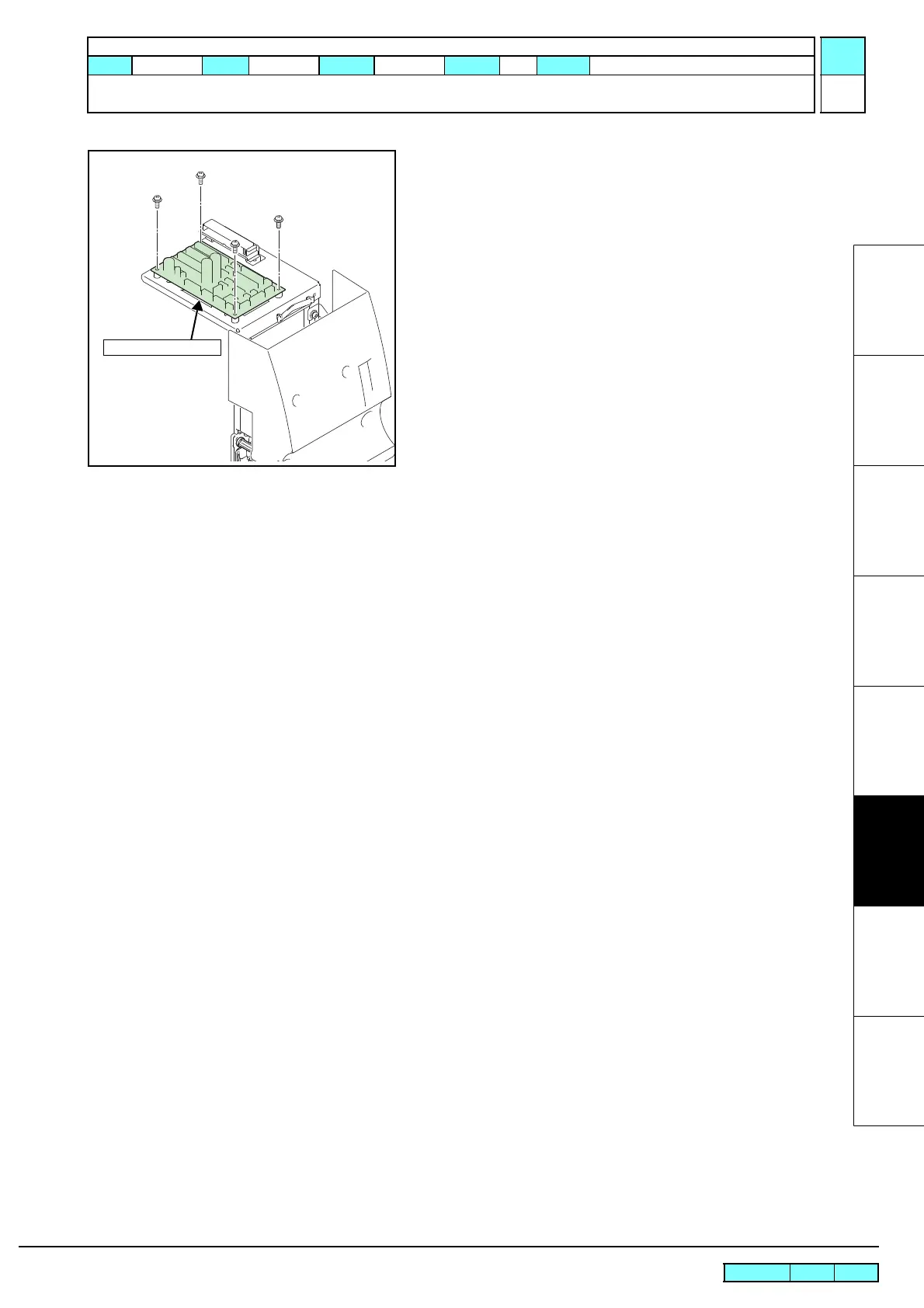

Ink Slider PCB Assy
1
2
3
4
5
6
7
8
3.
Remove the
ink slider PCB assy
.
4.
Reverse the disassembly procedure for reassembly
.
Ink Slider PCB Assy
R.1.0
Maintenance Manual > Disassembly and
Reassembly > Electrical Parts > Ink Slider PCB Assy
Model
CJV30/T
PC
Issued
2008.08.04
Revised
2008.
09.17
F/W ver
.
1.20
Remark
Rev
.
232
234
Table of Contents
Operating Principle
11
Maintenance Function
22
Ink System
22
Discharge&Wash
29
Outline of Control
47
System Configuration
47
Initial Filling
48
Electrical Parts
53
Operation Explanation
58
Power Supply PCB Assy
60
Fuse Rating
60
Connector Specification
60
Main PCB Assy
62
LED PCB Assy
72
Electrical Parts
75
Replacement of the Main PCB Assy
91
Adjustment Items
92
Adjustment Function
94
Mechanical Adjustment
94
Adjustment Procedure
101
Pen Pressure
107
Motor Current
116
Default Set
121
Setup Parameter
121
Replace Parts
122
Registration Procedure
122
Adjustment of the Station Height
126
Test Function
131
Test Items
131
Other Test
131
Operation Procedures
132
All Pattern
135
Action Test
144
Vacuum Fan
144
Sensor Test
145
Keyboard Led
147
Keyboard Test
148
Timer Check
150
Memory Check
151
Skew Check
152
Linear Encoder
157
Pinch Roller
166
Disassembly and Reassembly
181
Drive System
181
Cover Layout
182
Pump Motor
190
Disassembly and Reassembly
197
Electrical Parts
197
Drive System
201
Y-Axis Motor
204
Wiper Unit
213
Disassembly and Reassembly
221
Electrical Parts
221
Main PCB Assy
223
Paper Sensor
229
Fan Motor
240
Sensor Layout
250
Troubleshooting
251
List of Error Messages
254
Media Size
255
List of Warning Messages
260
Troubleshooting
264
Electrical Troubleshooting
270
Operation Flow
281
Cut Mode
281
Media Detection
284
Maintenance
291
Fill up Ink
291
Machine Setup
294
Media Feed
296
Common Setup
302
Service Mode
304
Ink Cartridge
312
