MIMAKI JV5 Series Maintenance Manual

© 2009 MIMAKI ENGINEERING CO.,LTD.
7.2.2 P.2
7.2.2 Media Attachment to the Platen
1
2
3
4
5
6
7
8

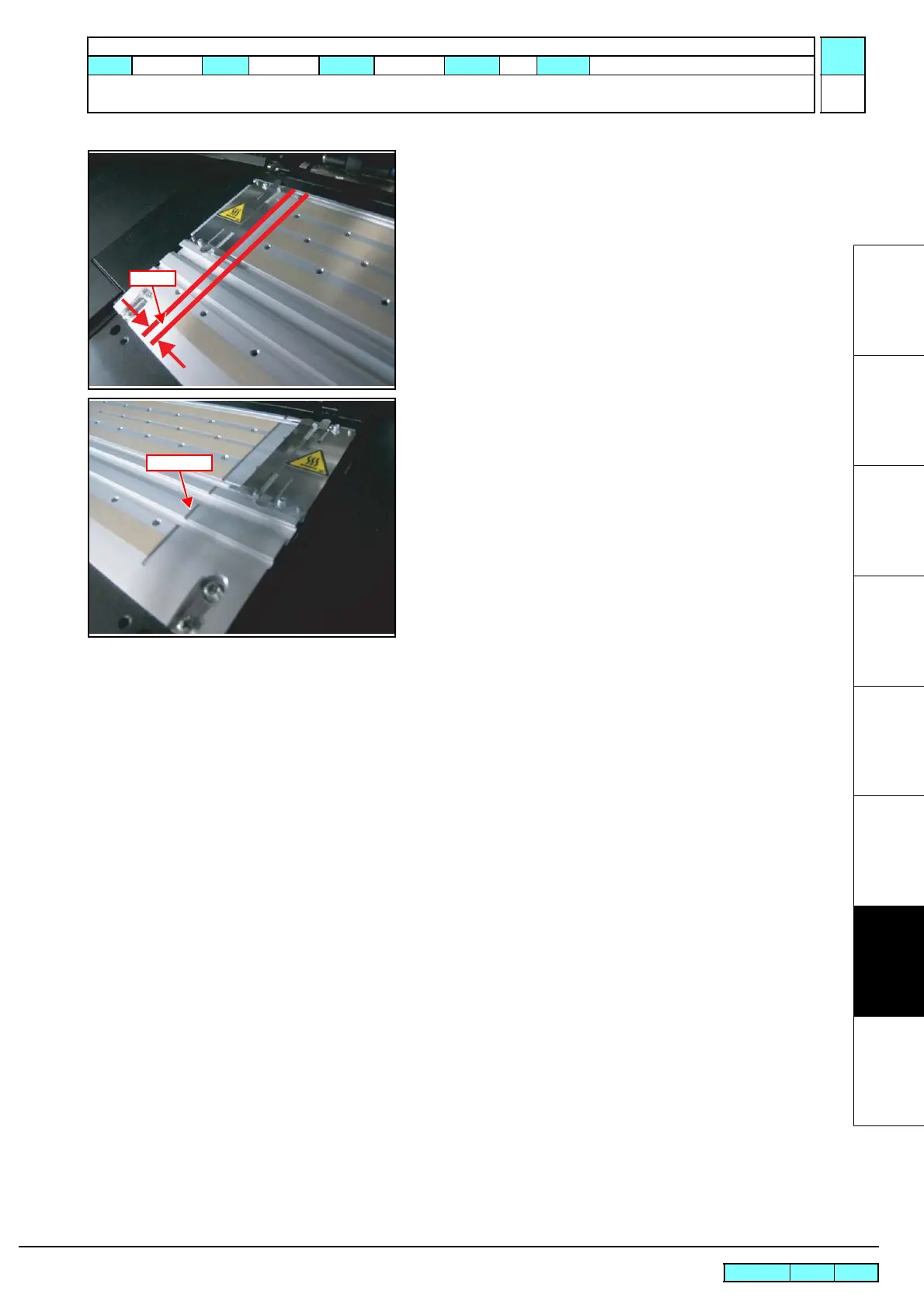

3. To tape the Niftron tape on the left edge of the platen, move the
left media retainer to the left end.
4. Tape the Niftron tape, and then cut it at the 5 mm right from the
media retainer placed on the left end.
5. To tape the Niftron tape on the right edge of the platen, move
the right media retainer to the right end.
6. Tape the Niftron tape, and then cut it along the left end of the
slit line.
5mm
Slit line
R.1.0
Maintenance Manual >Troubleshooting > Detailed Methods of Coping with the Malfunctions > Media Attachment to the
Model CJV30/TPC Issued 2008.12.06 Revised F/W ver. 1.00 Remark
1.0
Rev.
