7.2.5 Heater temperature does not going up
1
2
3
4
5
6
7
8

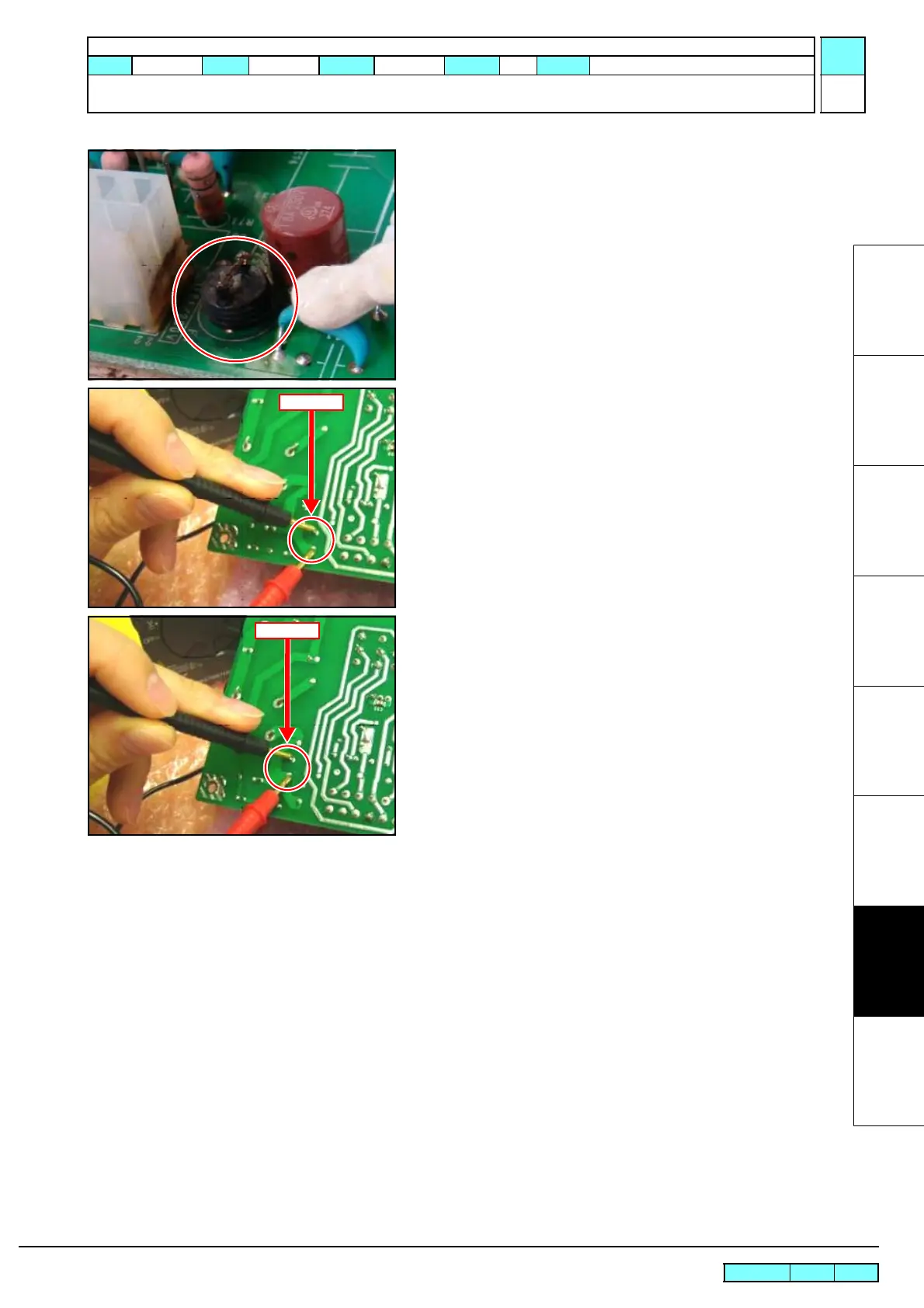

4. Check F4 and F5 of the power supply PCB.
If PCB brounout as shown in the pocture on the left, replace the
PCB.
5. If you cannot operate visual checking, measure the resistance of
F4 from the back side of PCB as shown in the picture on the
left. Make sure to have resistance value is 5 or less.
Replace the PCB if resistance value is more than 5.
6. Check F5 in a same way as F4 to check the resistance value is
5 or less.
Relace the PCB if resistance value is more than 5.
Fuse F4
Fuse F5
R.1.0
Maintenance Manual > Troubleshooting > Detailed Methods of Coping with the Malfunctions > Heater temperature does not going up
Model CJV30/TPC Issued 2009.06.30 Revised F/W ver. 1.00 Remark
