© 2009 MIMAKI ENGINEERING CO.,LTD.
4.2.2 P.2

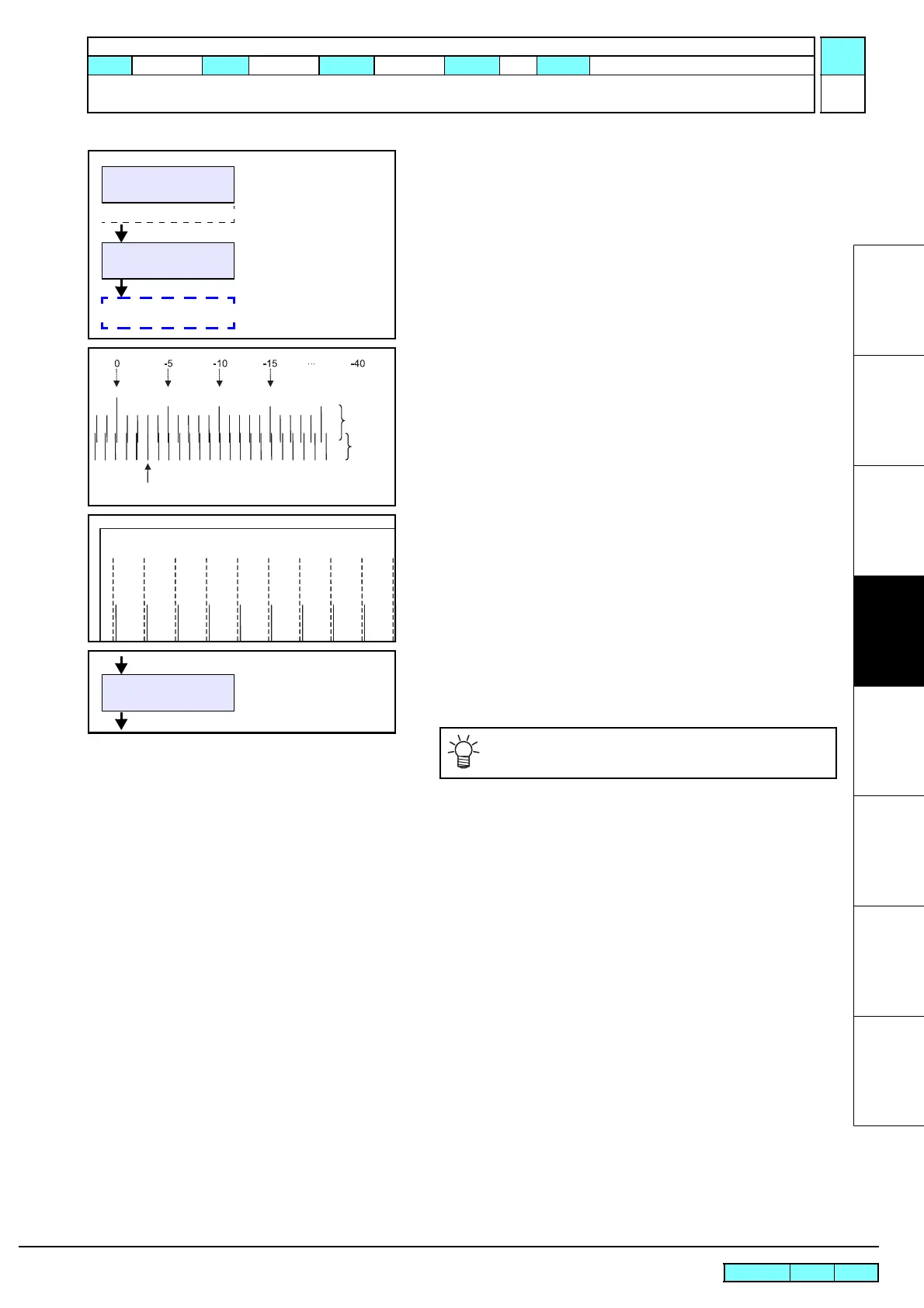

4.2.2 [HEAD ADJUST] DROP.POS ADJUST
1
2
3
4
5
6
7
8
4. Carry out printing in order of [Y Bi] and [FINE-Y Bi].
After adjusting the Y return (Y Bi), perform fine adjustment of
the fine Y return (FINE-Y Bi).
[]/[]: Switches
5. Check the pattern.
Y Bi
Check the overlapping parts of the patterns of the outward
and return paths.
FINE-Y Bi
Only the raw D is used for drawing the pattern. Adjust the
pattern until the two lines overlap, using the scope.
Adjusting value: -50.0 to 50.0 dot (unit: 0.1 dot)
6. Enter the adjustment value.
#DROP POS. HsLgDRFT
ADJUST :Y Bi
:FINE-Y Bi
#DROP POS. HsLgDRFT
Y Bi PRINT <ent>
Pattern drawing
Adjustment Value
Return
Path
Outward
Path
#DROP POS. HsLgDRFT
Y Bi :.0
When this adjustment has been made, previously
adjusted value of [DROP.POScorrect] is cleared.
R.1.0
Maintenance Manual > Adjustment Items > Adjustment Function > [HEAD ADJUST] DROP.POS ADJUST
Model CJV30/TPC Issued 2008.08.04 Revised F/W ver. 1.00 Remark
1.0
To Next Page
