Minarik PCM4 - Figure 9. Connection - Multiple Follower System

18
Installation
When using ratioing potentiometers, connect each MM30000
series drive to the master PCM4 as detailed in Figure 9. The input
to the master PCM4 can be any of the standard single quadrant
inputs discussed in this manual.
OUTPUT 2
OUTPUT 1
INPUT
(TERM 8)
COM
(TERM 7)
+15
(TERM 6)
PCM4
INH2
S2
MM31002A DRIVE
INH2
S2
MM31002A DRIVE
INH2
S2
MM31002A DRIVE
CW
CW
CW
CW

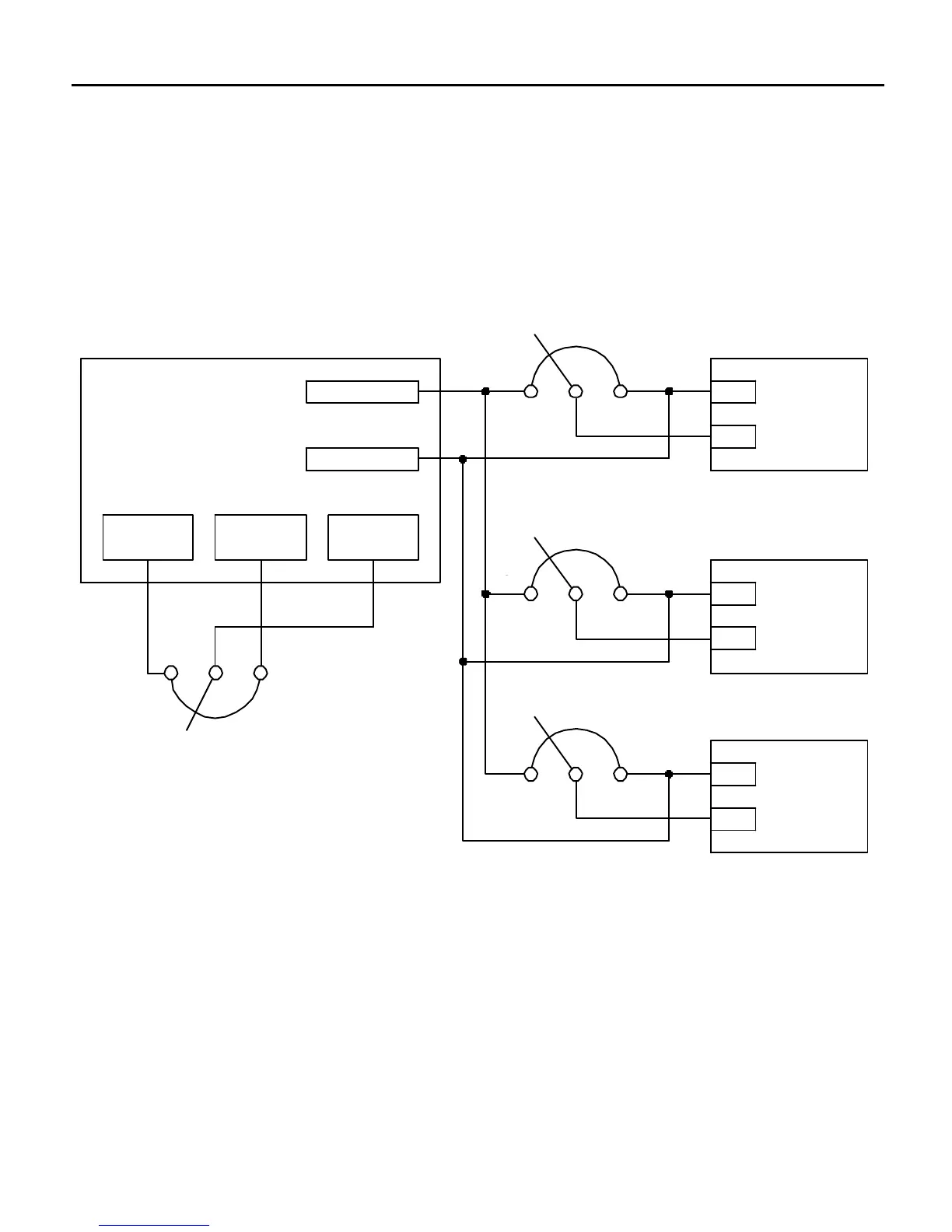

Figure 9. Connection – Multiple Follower System
OUTPUT 2
CW
CW
CW
CW
INH2
S2
INH2
S2
INH2
S2
MM31002A DRIVE
MM31002A DRIVE
MM31002A DRIVE
OUTPUT 1
INPUT
(TERM 8)
COM
(TERM 7)
PCM 4
+15
(TERM 5)
