Minarik PCM4 - Figure 10. Signal Input Adjust; Multiple Drives Following a Single Signal Input

19
Multiple drives following a single signal input
When more that one Minarik drive must follow one voltage
signal, each must be wired individually to dedicated PCM4
modules. Each PCM4 module then receives the “master” input
signal. The MM30000 series discussed in the preceding
paragraphs is the only exception.
Each of the PCM4 units must first be modified.
1. Check that all 3 DIP switches (SW501) , located near the
center of the board, are in their OFF position.
2. Cut the left hand (CCW) pin of P501, the SIGNAL INPUT
ADJ, off each PCM4. The figure below shows this trimmer
potentiometer.
P501
SIGNAL
INPUT ADJ
Figure 10. Signal Input Adjust
Installation

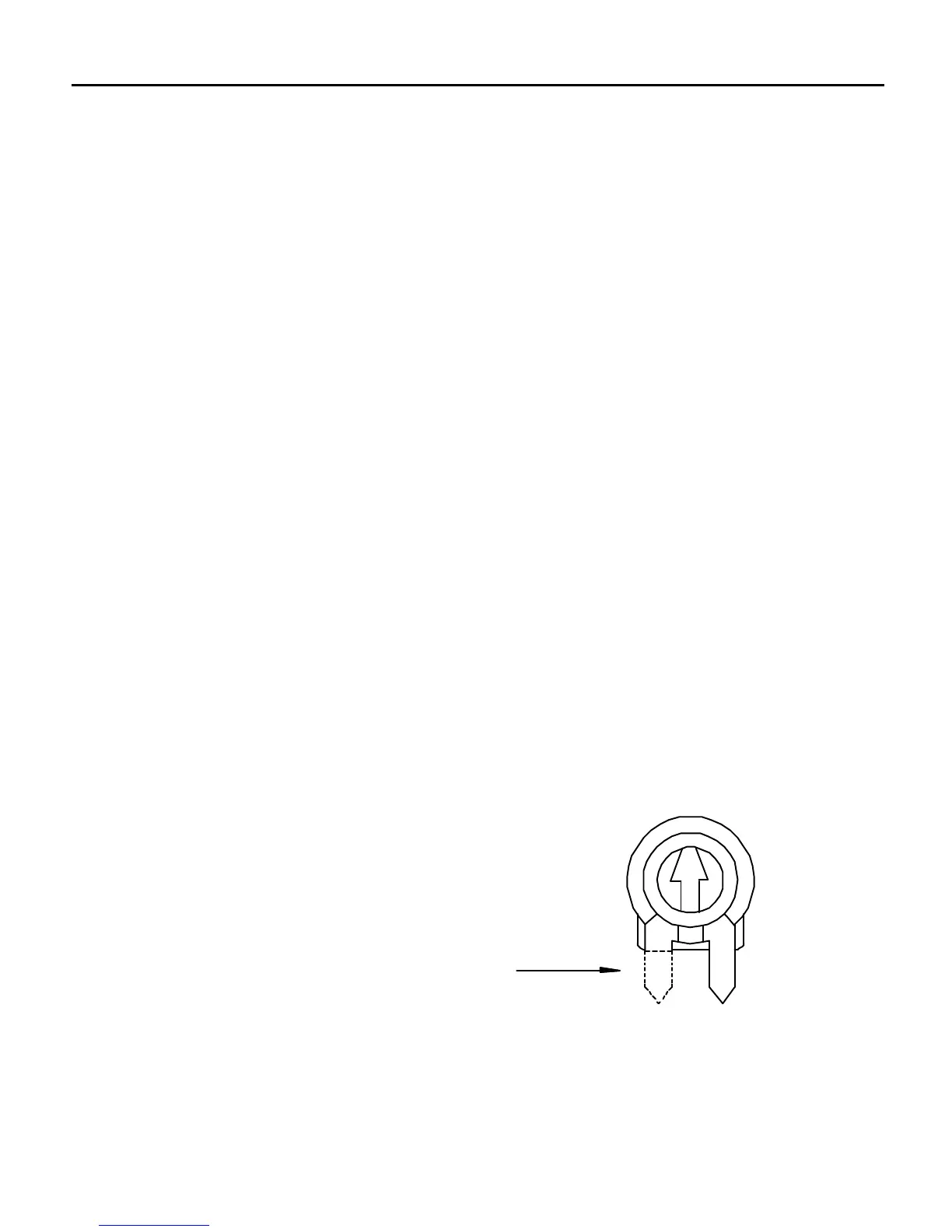

CUT AND REMOVE LEFT PIN OF
THE SIGNAL INPUT ADJ TRIMPOT
ON EACH PCM4 BOARD
SIGNAL
INPUT ADJ
P501
