Mindeo ME5066 - Scan Window Positioning

8

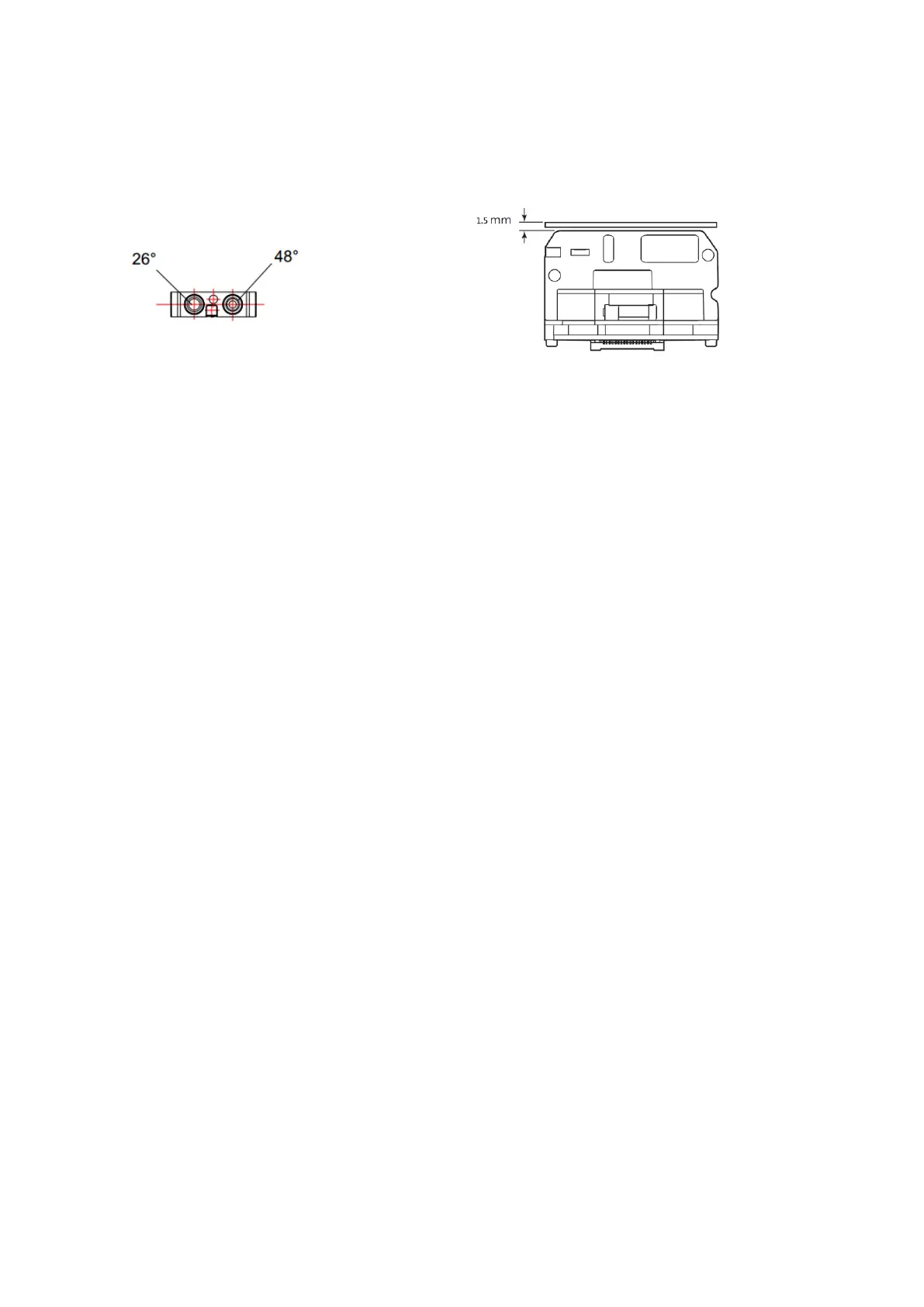

2-5 Scan window positioning
The window should be mounted as close as possible to the front of the engine (parallel, no tilt). Since
unwanted reflections can occur at either surface and the window thickness can vary, the distance from
the front of the engine to the far side of the glass should not exceed 1.5 mm.
