Mindeo ME5066 - Electrical Characteristics; Pin Assignment

9
3 Electrical characteristics

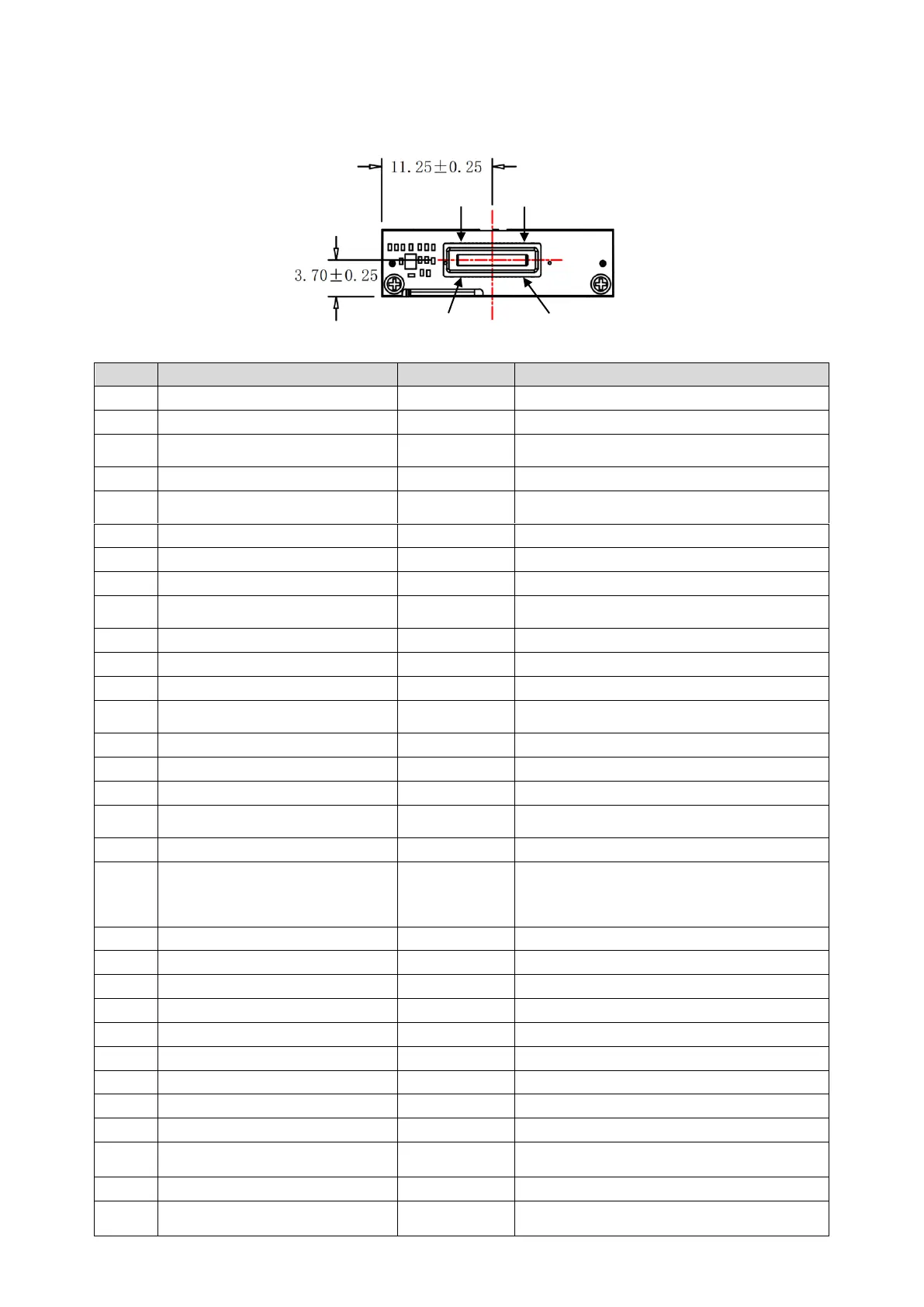

3-1 Pin assignment
Pin
Signal
I/O
Description
1
Ground
Power
Power and signal ground.
2
Ground
Power
Power and signal ground.
3
VIN_3V3_LED
Power
Power supply input for the LED Illumination and
LED aimer. 3.3V, I
LED
>1A.
4
CIS-1 MD0n
Output
CIS1 MIPI data lane 0.
5
VIN_3V3_LED
Power
Power supply input for the LED Illumination and
LED aimer. 3.3V, I
LED
>1A.
6
CIS-1 MD0p
Output
CIS1 MIPI data lane 0.
7
N/C
-
Reserved for future use.
8
Ground
Power
Power and signal ground.
9
I
2
C_SCL
Input/Output
Image scanning Engine follows I
2
C slave
protocols with respect to this signal, 3.3V
10
CIS-1 MD1n
Output
CIS1 MIPI data lane 1
11
Ground
Power
Power and signal ground.
12
CIS-1 MD1p
Output
CIS1 MIPI data lane 1
13
I
2
C_SDA
Input/Output
Image scanning Engine follows I
2
C slave
protocols with respect to this signal, 3.3V
14
Ground
Power
Power and signal ground.
15
N/C
-
Reserved for future use.
16
CIS-1 MCn
Output
CIS1 MIPI clock
17
ENG_RESET
Input
Asynchronous reset for the scan engine
microcontroller, 3.3V
18
N/C
-
Reserved for future use.
19
PWR_ENA
Input
Active high (3.3V) = scan engine in Active mode.
Active low (longer than 10 milliseconds) = scan
engine in Sleep mode and resets all registers of
the image sensor.
20
CIS-1 MCp
Output
CIS1 MIPI clock
21
ENG_EXPO
Output
Auxiliary lighting control (1.8V)
22
Ground
Power
Power and signal ground.
23
ILL_ON
Input
External lighting control signals (3.3V)
24
CIS-2 MD0n
Output
CIS2 MIPI data lane 0
25
AIM_ON
Input
External aiming control signals (3.3V)
26
CIS-2 MD0p
Output
CIS2 MIPI data lane 0
27
N/C
-
-
28
Ground
Power
Power and signal ground.
29
VIN_3V3_IMGR
Power
Power supply input for the scan engine
microcontroller. 3.3V, I
>0.4A；
30
CIS-2 MCn
Output
CIS2 MIPI clock
31
VIN_3V3_IMGR
Power
Power supply input for the scan engine
microcontroller. 3.3V, I
>0.4A；
Pin 1
Pin 33
Pin 2
Pin 34
