7-16 BeneVision N17/BeneVision N15/BeneVision N12 Patient Monitor Service Manual
7.2.7 N15N17 Module Rack Body Assembly (FRU) (115-044546-00)

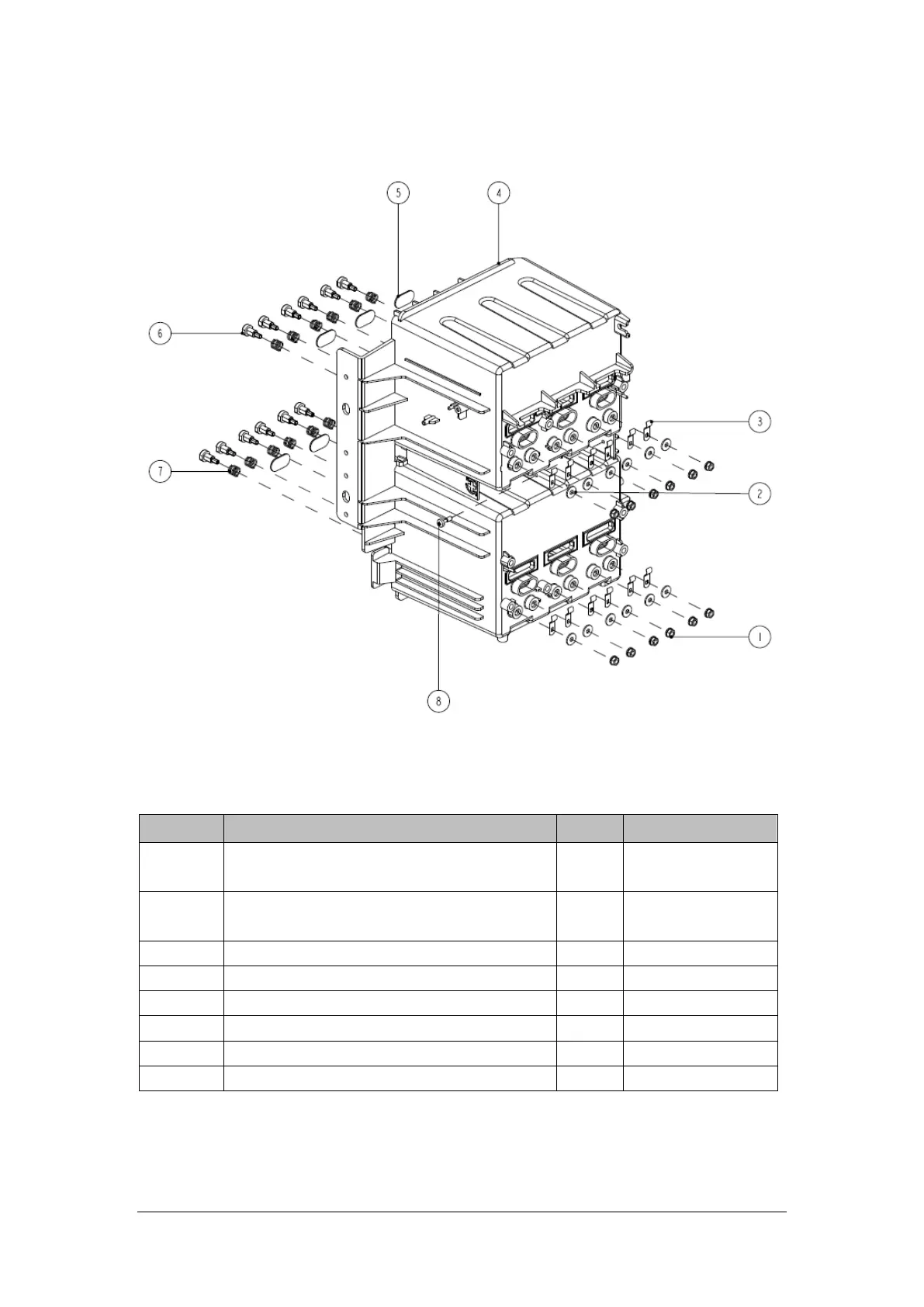

7.2.7.1 Exploded View
7.2.7.2 Parts List
ITEM No. Description Qty FRU Part No.
1
Hex nut and taper lock washer assembly M3 plated
with green color zinc
12 /
2
Flat washer-Grade A GB/T97.1-2002 3 plated with
green color zinc
12 /
3 Spring 12 6800-20-50388
4 N15 module rack (six slots) 1 /
5 Infrared lens 12 047-005213-00
6 Contact screw 12 6800-21-51100
7 Contact spring 12 6800-20-50261
8 Captive screw M3X10 1 /
