7-20 BeneVision N17/BeneVision N15/BeneVision N12 Patient Monitor Service Manual
ITEM No. Description Qty FRU Part No.
3X8
7 Screen clip 4 033-000636-00*
8 N15N17 front shell plate cable 1 009-006736-00*
9 CORE O.D=21.5mmI.D=9.5mm 1 1 /
10
N17 Mainboard to LCD cable
(Sharp)
1 009-006398-00*
11
N15N17 touch screen cable
(Sharp)
1 009-006730-00*
12
Power Switch and Indicate LED
Board PCBA
1 051-002711-00
13 MK power button (P+R) 1 043-007956-01
14 Conductive cloth pad 0.08m /
15 Earth plate (N17-Sharp) 1 042-018593-00*
*: included in No.1 N17-Sharp front housing assembly (FRU) (115-044552-00).

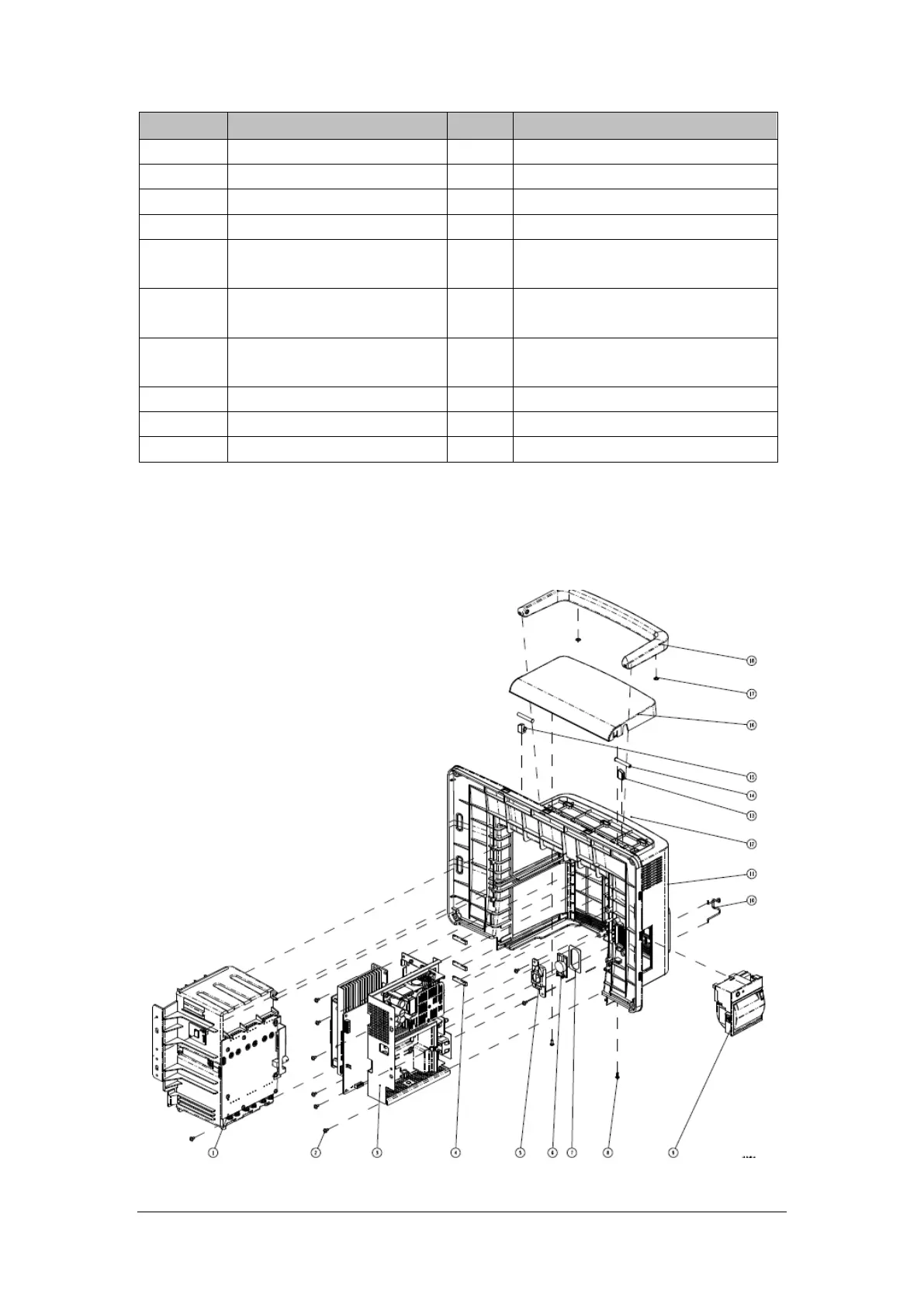

7.3.4 N17 Rear Housing
7.3.4.1 Exploded View
