7-2 BeneVision N17/BeneVision N15/BeneVision N12 Patient Monitor Service Manual
7.1.2 N12-NLT Front Housing Assembly

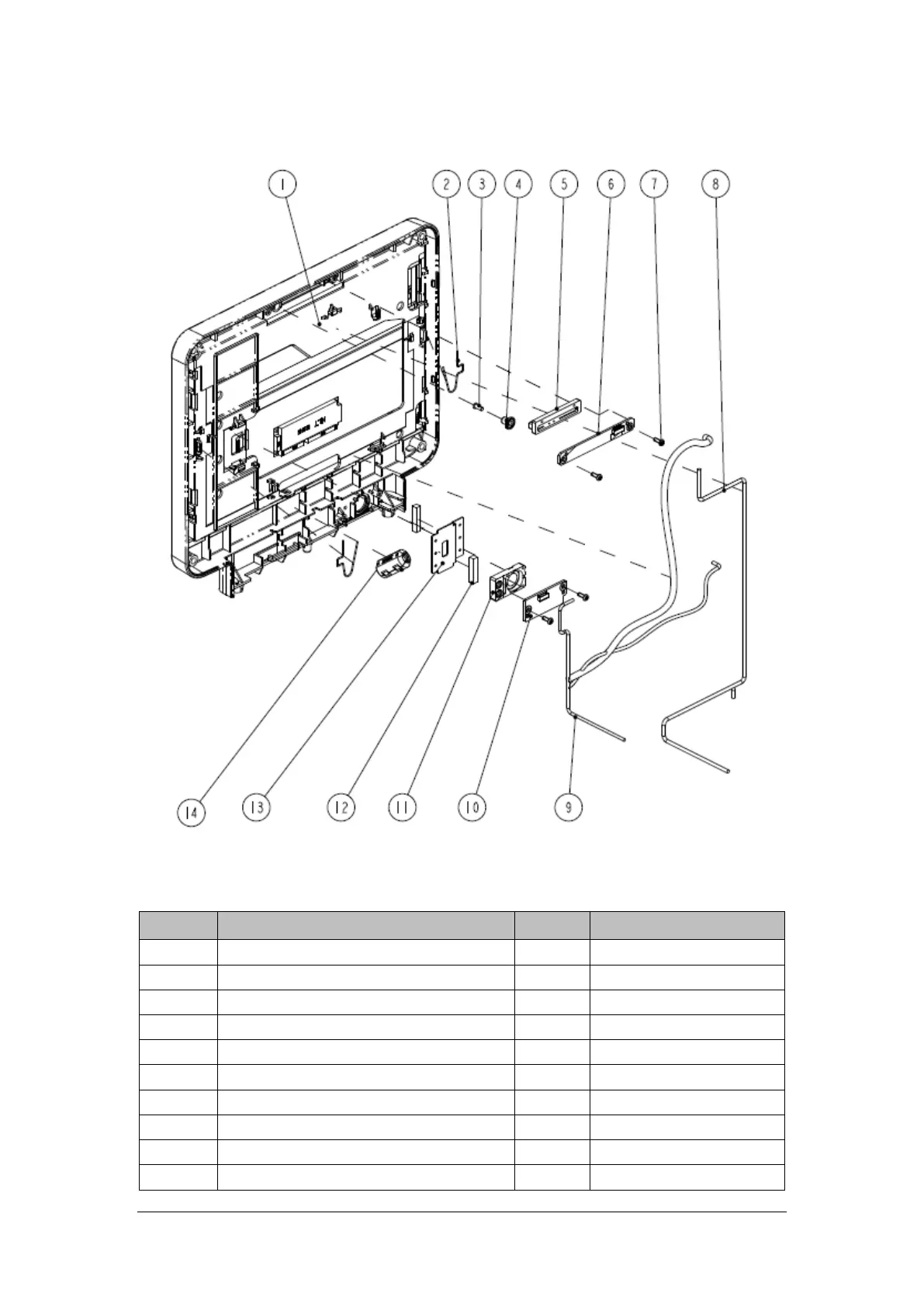

7.1.2.1 Exploded View
7.1.2.2 Parts List
ITEM No. Description Qty FRU Part No.
1 N12-NLT front housing assembly (FRU) 1 115-044502-00
2 Screen clip 2 033-000636-00*
3 Light guild pillar 1 043-007582-00
4 MK hood 1 049-001214-00
5 MK alarm cap 1 049-001135-00
6 Alarm LED and Light Sensor Board PCBA 1 051-002693-00
7 Cross recessed pan head screws, PT3X8 4 /
8 N12 front shell plate cable 1 009-006396-00*
9 N12 Mainboard to LCD cable (NLT) 1 009-006410-00*
10 Power Switch and Indicate LED Board PCBA 1 051-002711-00
To Next Page
