6-14 BeneVision N17/BeneVision N15/BeneVision N12 Patient Monitor Service Manual

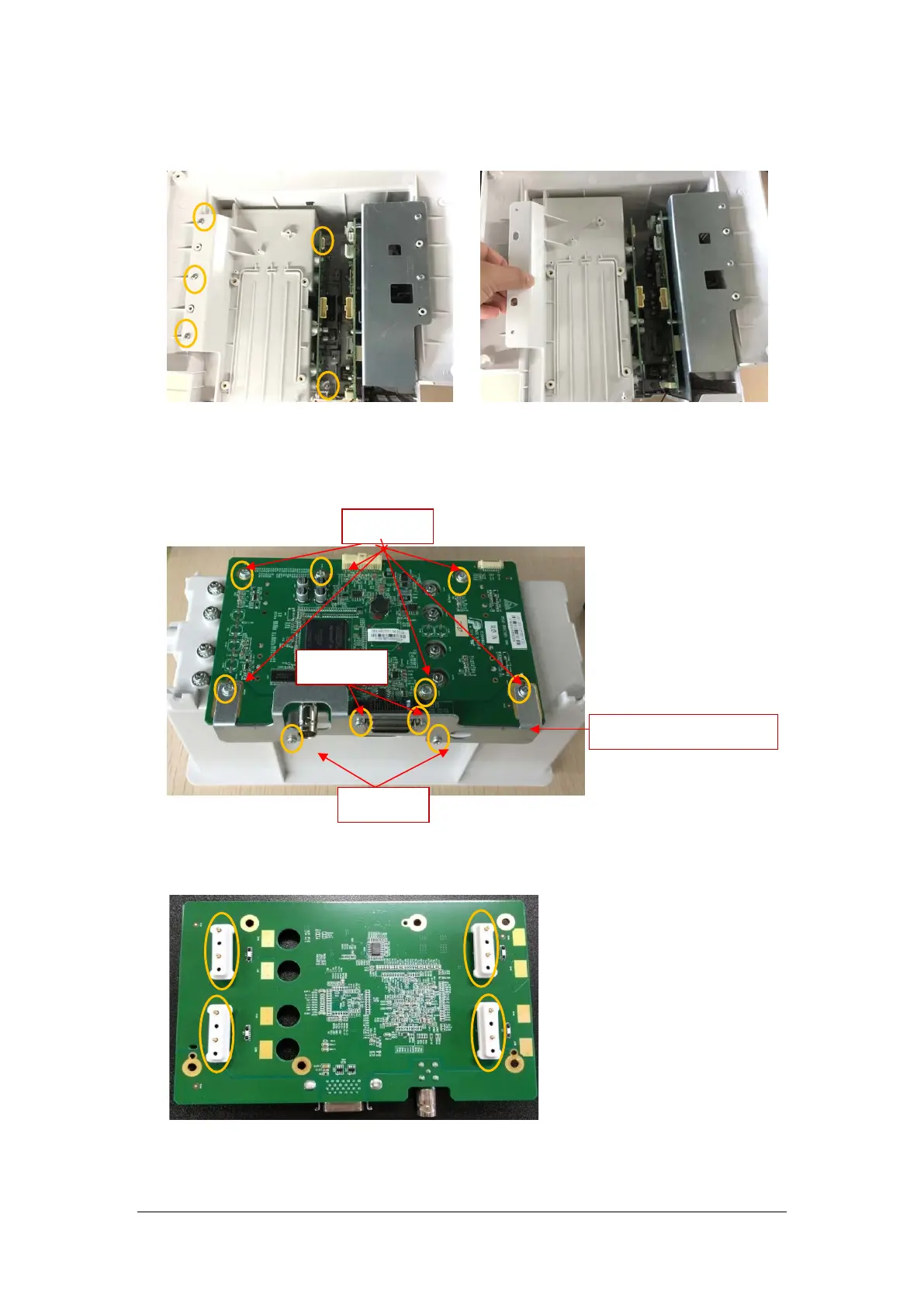

3. Loosen and remove the five M3X6 screws, and lift upward to remove the internal module rack
assembly as indicated in the figure.
4. Place the face of the removed module rack assembly board up. First unscrew the two M2.5X6 screws
on the SMR interface, the two PT3X8 screws, and the six M3X6 screws in turn, and then remove the
internal module rack COMM board.
5. Turn over the removed internal module rack COMM board, and remove the four POGO PIN silicon
cases.
SMR interface sheet metal
PT3X8
M2.5X
M3X6
