7-36 Structure and Assembly/Disassembly

7.4.6.5 4D Module

1. Turn over the main unit box, remove the 5 screws locking the 4D board cover.

2. Remove the 4 cross panhead screw M3X6 and take out the socket pressing board to

take out the 4D board.

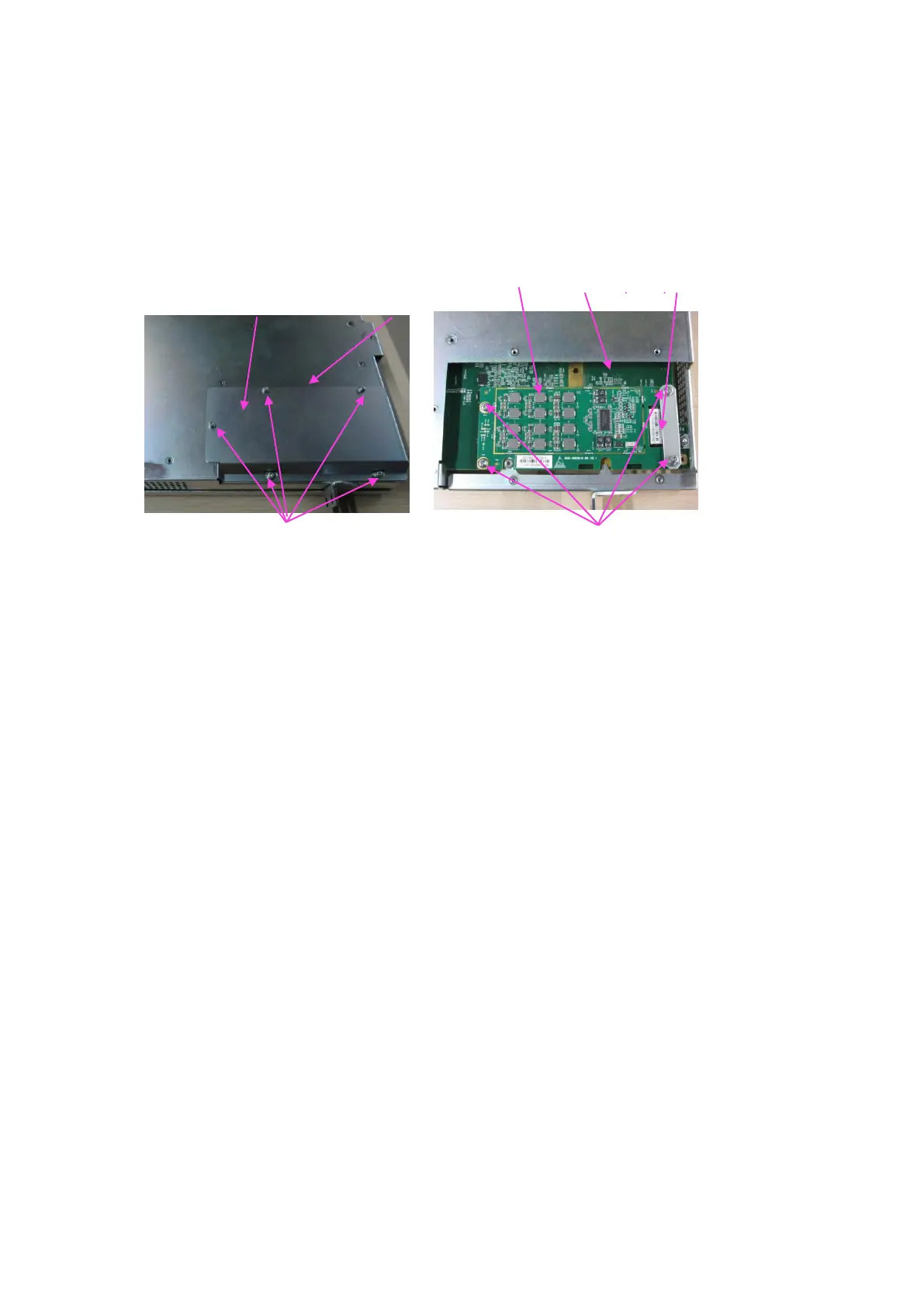

Fig 7-31 4D Module Disassembly

Main unit box bottom

Cross panhead screw (M3X8 X 5)

4D board

cover

Cross panhead screw (M3X6 X 4)

Main board

Socket pressing

board

4D Board
