7-50 Structure and Assembly/Disassembly

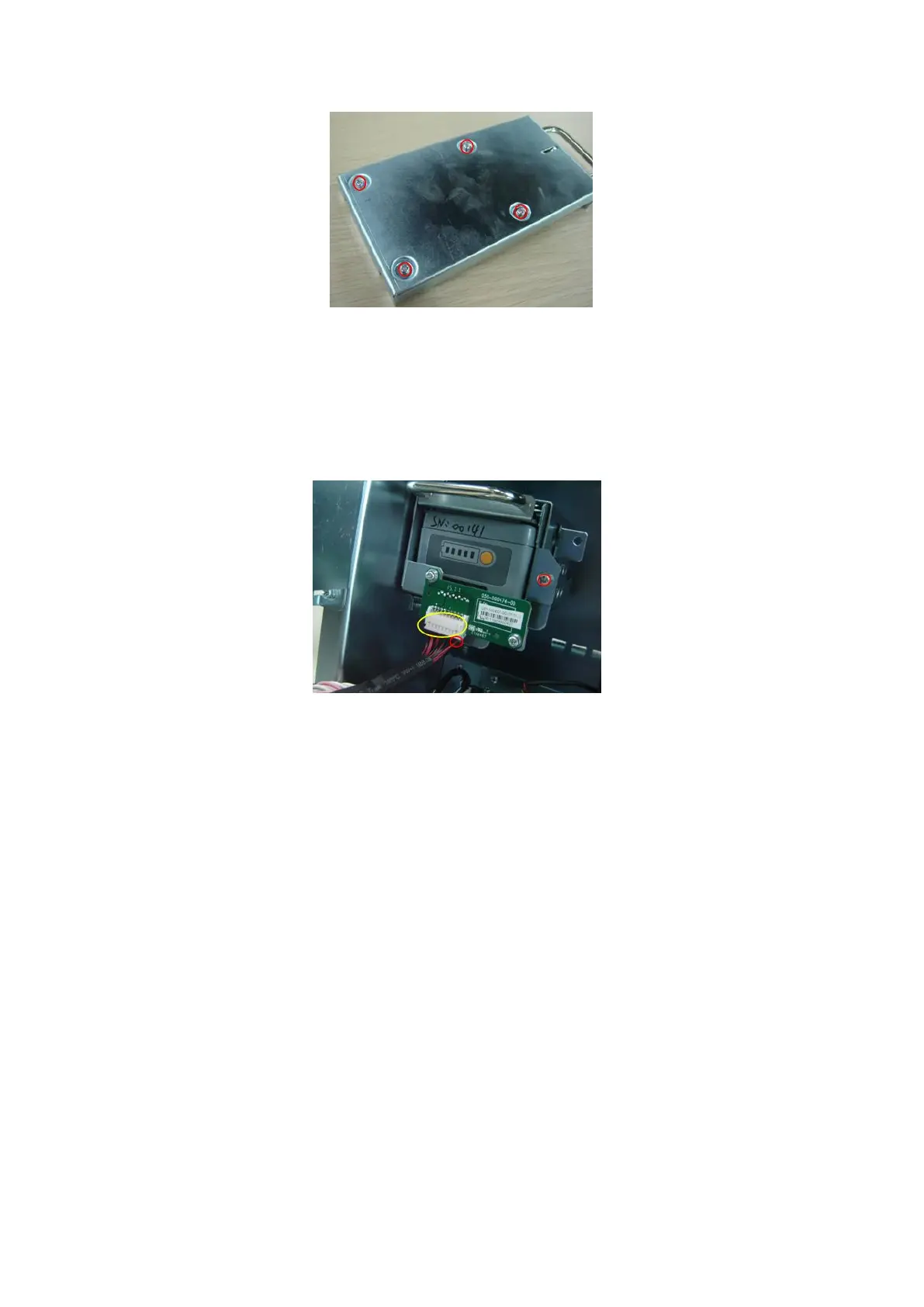

Figure 7-61 Disassembly of HDD (2)
7.4.12.5 Battery Assembly
1. Remove the IO module and the rear cover (refer to chapter 7.4.2 IO Rear Board and
7.4.3 Machine Fan).
2. Disconnect the cable connection on the battery connecting board, remove the fixing
screws M3X8 (2 pcs) and hold the handle to draw out the battery assembly.
Fig 7-62 Disassemble the battery assembly
3. You can install the battery assembly as per the steps described above in reversed
order.
