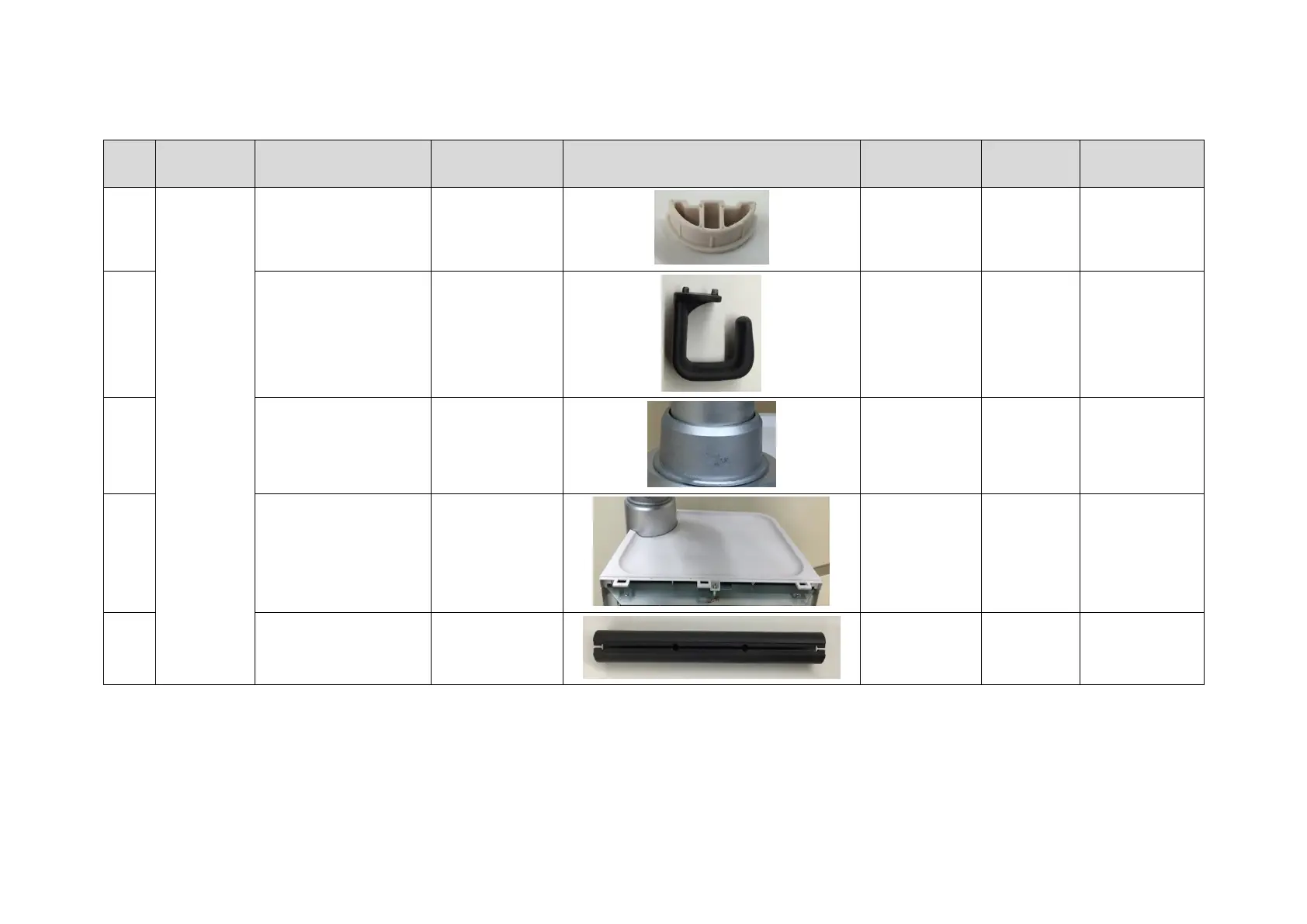

Structure and Assembly/Disassembly 7-21

No.

Classificat

ion

Part description

Order Number

Figure

Comments

Applicabl

e models

Assembly/Dis

assembly

73.

Screw plug for front

cover

043-007192-00

74.

Cable-ARM

043-007181-00

75.

shaft cover

043-007178-00

76.

top cover

043-007179-00

77.

handle plastic cover

043-007180-00
