Mindray DC-28 - Right Side-Panel Assembly

Structure and Assembly/Disassembly 7-39
Fig 7-35 Disassemble the Left Side-panel Assembly
7.4.9 Right Side-panel Assembly
There is a M4X8 cross panhead screw fixing the mounting ear to the right side-panel,
remove this screw to take out the right side-panel assembly.

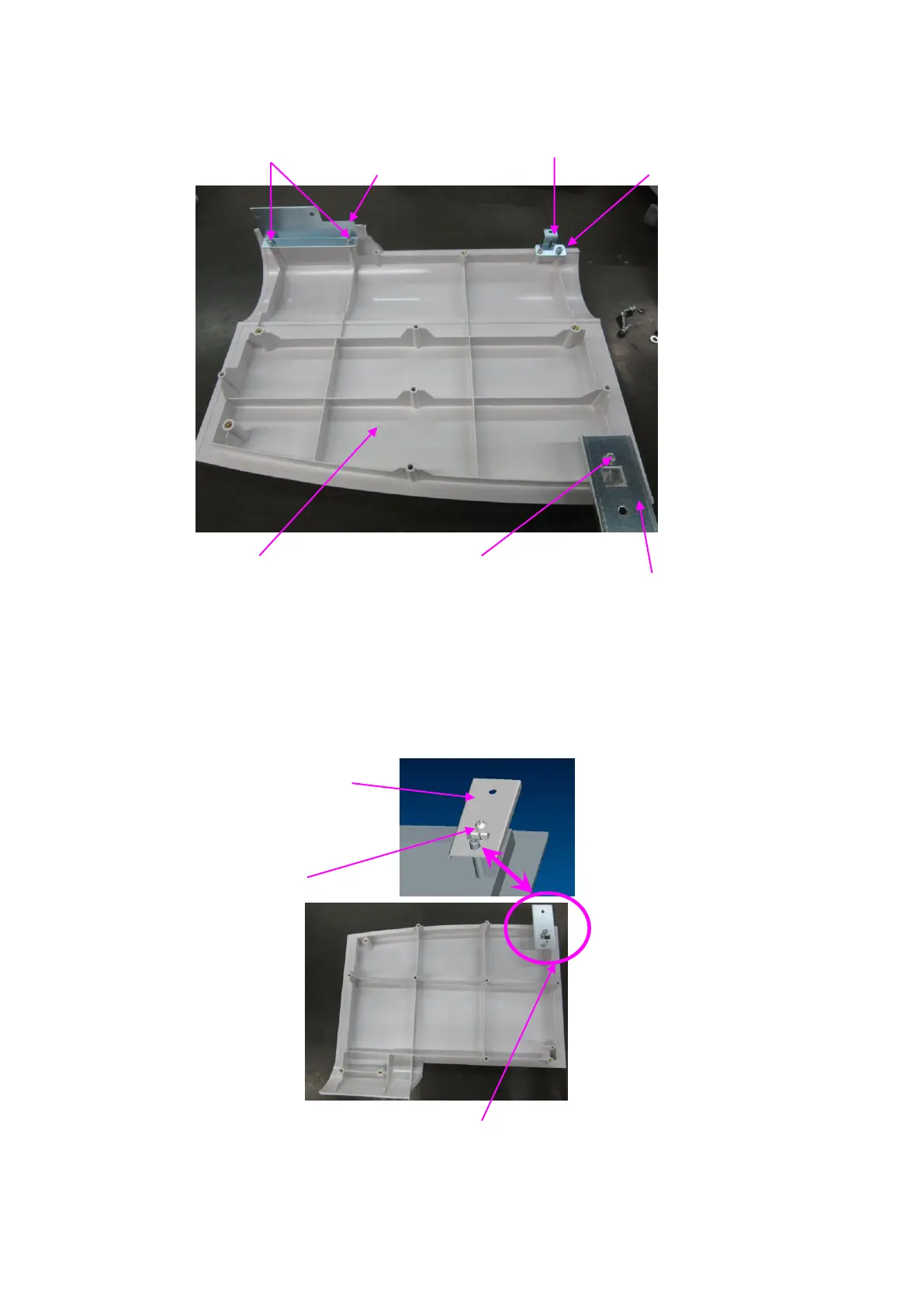

Fig 7-36 Disassemble the Right Side-panel Assembly
Front mounting ear
Left side-panel mounting bracket
Back mounting ear
Cross panhead screw (M4X8 x 1)
Left
side-panel
Cross panhead screws (M4X8 x 2)
Cross panhead
screw (M4X8 x 1)
Right side-panel
Right side-panel mounting ear
Cross panhead
M4X8
