7-42 Structure and Assembly/Disassembly
Figure 7-41 Knob and TGC slider position

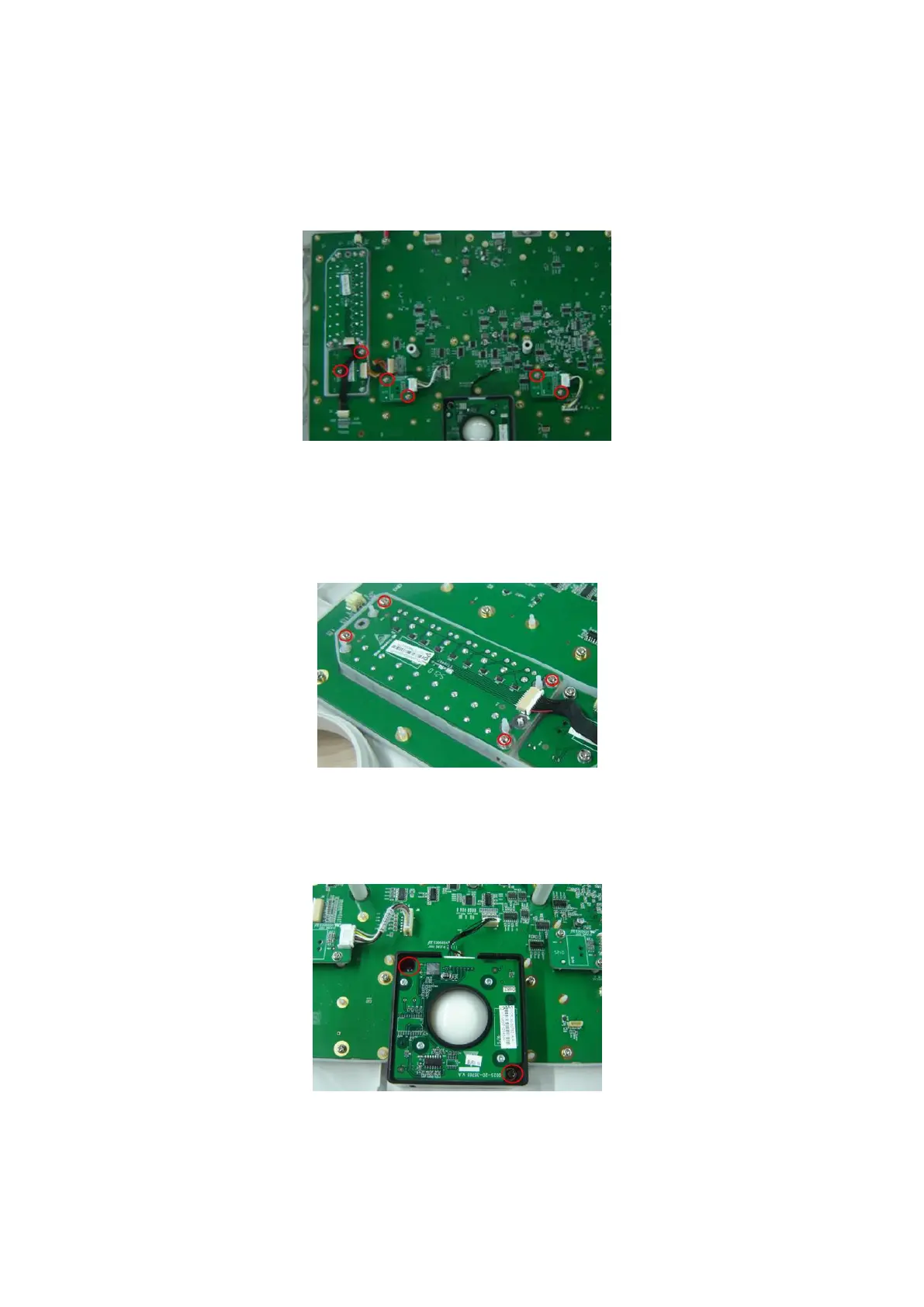

2. Pull out the connecting cable plug, remove the M3X8 fixing screws (6 pcs) as shown
in the figure, and two single-encoder board and a dual-encoder board can be
disassembled.
Fig 7-42 Disassemble the Encoder Board
7.4.10.2 TGC Board
1. Pull out the TGC rod caps, refer to the 7.4.10.1 Single/dual-encoder Board chapter.
2. Pull out the connecting cable plug, remove the M3X8 screws (4 pcs) fixing the board
as shown in the figure to disassemble the TGC board.
Fig 7-43 Disassembly of the TGC board
7.4.10.3 Trackball
Pull out the connecting cable plug of trackball, remove the M3X8 screws (2 pcs)
which are used to secure the trackball, and take out the trackball.
Fig 7-44 Disassembly of the trackball
